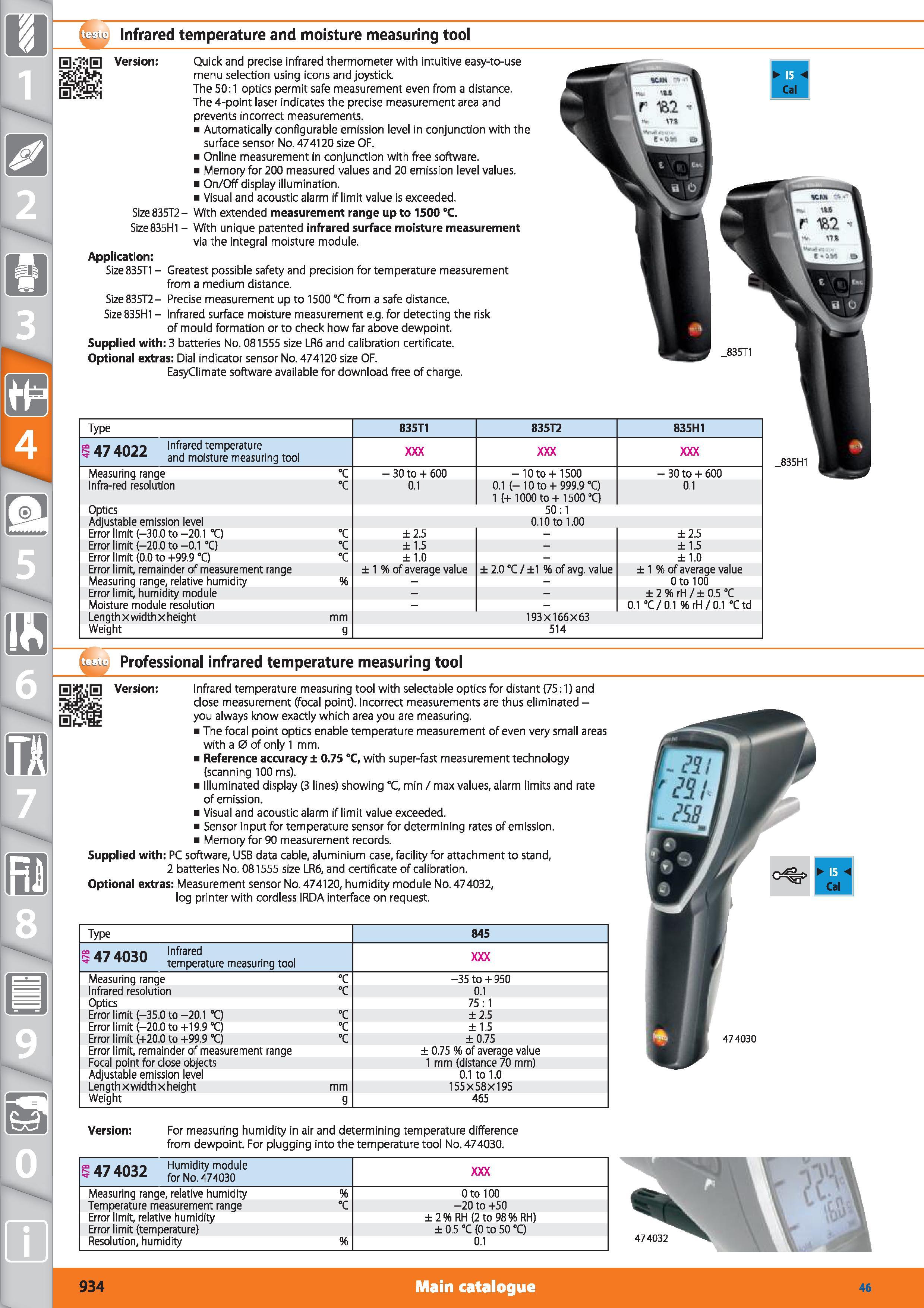

Infrared temperature and moisture measuring tool Version Quick and precise infrared thermometer with intuitive easy-to-use menu selection using icons and joystick The 50:1 optics permit safe measurement even from a distance. The 4-point laser indicates the precise measurement area and prevents incorrect measurements. Automatically configurable emission level in conjunction with the surface sensor No. 474120 size OF. Online measurement in conjunction with free software. Memory for 200 measured values and 20 emission level values. On/Off display illumination. Visual and acoustic alarm if limit value is exceeded. Size835T2- With extended measurement range up to 1500 °C. Size 835H1 - With unique patented infrared surface moisture measurement via the integral moisture module. Application Size 835T1 - Greatest possible safety and precision for temperature measurement from a medium distance. Size835T2- Precise measurement up to 1500 °C from a safe distance. Size835H1 - Infrared surface moisture measurement e.g. for detecting the risk of mould formation or to check how far above dewpoint. Supplied with 3 batteries No. 081555 size LR6 and calibration certificate. Optional extras Dial indicator sensor No. 474120 size OF. EasyClimate software available for download free of charge. Type 835T1 835T2 835H1 47 4022 Infrared temperature and moisture measuring tool Measuring range °C - 30 to + 600 -10 to+1500 - 30 to + 600 Infra-red resolution °C 0.1 0.1 (-10 to + 999.9 °Q 1 (+ 1000 to + 1500 °C) 0.1 Optics 50:1 Adjustable emission level 0.10 to 1.00 Error limit (-30.0 to -20.1 C) °C ±2.5 - ±2.5 Error limit (-20.0 to -0.1 °C) °C ± 1.5 - ± 1.5 Error limit (0.0 to +99.9 °C) °C ± 1.0 ± 1.0 Error limit, remainder of measurement range ± 1 of average value ± 2.0 °C / ±1 of avg. value ± 1 of average value Measuring range, relative humidity 0 to 100 Error limit, humidity module ±2%rH/±0.5°C Moisture module resolution 0.1 “C/0.1 rH / 0.1 "Ctd Length xwidthx height mm 193X166X63 Weight g 514 Professional infrared temperature measuring tool Version Infrared temperature measuring tool with selectable optics for distant (75:1) and close measurement (focal point). Incorrect measurements are thus eliminated -you always know exactly which area you are measuring. The focal point optics enable temperature measurement of even very small areas with a 0 of only 1 mm. Reference accuracy ± 0.75 °C, with super-fast measurement technology (scanning 100 ms). Illuminated display (3 lines) showing °C, min / max values, alarm limits and rate of emission. Visual and acoustic alarm if limit value exceeded. Sensor input for temperature sensor for determining rates of emission. Memory for 90 measurement records. Supplied with PC software, USB data cable, aluminium case, facility for attachment to stand, 2 batteries No. 081555 size LR6, and certificate of calibration. Optional extras Measurement sensor No. 474120, humidity module No. 474032, log printer with cordless IRDA interface on request. Type 845 47 4030 Inured temperature measuring tool Measuring range °C -35 to+ 950 Infrared resolution °C 0.1 Optics 75:1 Error limit (-35.0 to -20.1 C) °C ±2.5 Error limit (-20.0 to +19.9 °C) °C ± 1.5 Error limit (+20.0 to +99.9 °C) °C ±0.75 Error limit, remainder of measurement range ± 0.75 of average value Focal point for close objects 1 mm (distance 70 mm) Adjustable emission level 0.1 to 1.0 Length xwidthx height mm 155x58x195 Weight g 465 474030 Version For measuring humidity in air and determining temperature difference from dewpoint. For plugging into the temperature tool No. 474030. K A7 Anao Humidity module HUjZ for No 474030 Measuring range, relative humidity Oto 100 Temperature measurement range °C -20 to +50 Error limit, relative humidity ± 2 96 RH (2 to 98 RH) Error limit (temperature) ± 0.5 °C (0 to 50 °Q Resolution, humidity 0.1 474032 934 Main catalogue
