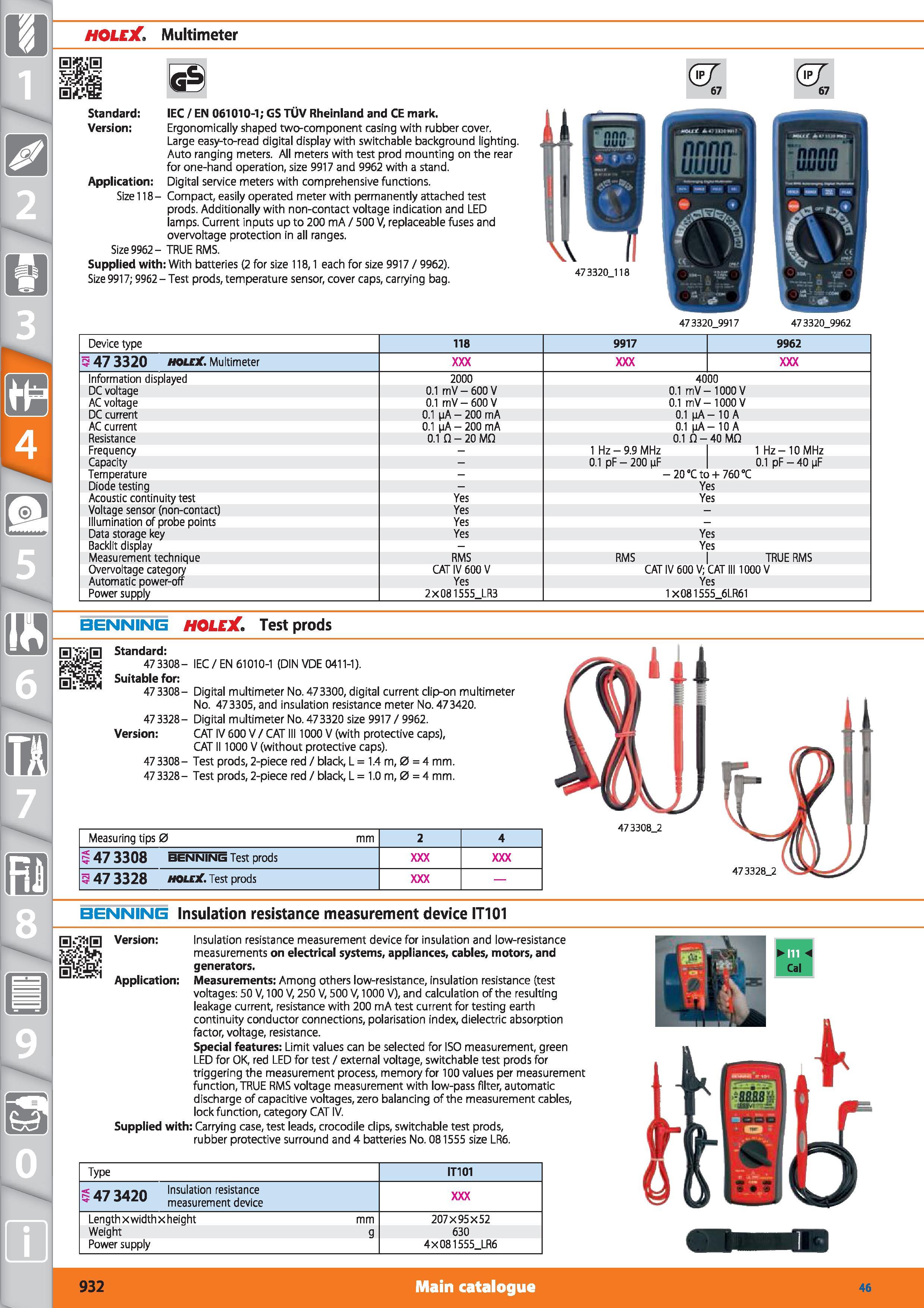

932 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.932

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 932 0932 ENG Lab2u

1 HOLEX Multimeter 6s Standard IEC / EN 061010-1; GS TUV Rheinland and CE mark. Version Ergonomically shaped two-component casing with rubber cover. Large easy to-read digital display with switchable background lighting. Auto ranging meters. All meters with test prod mounting on the rear for one-hand operation, size 9917 and 9962 with a stand. Application Digital service meters with comprehensive functions. Size 118- Compact, easily operated meter with permanently attached test prods. Additionally with non-contact voltage indication and LED lamps. Current inputs up to 200 mA / 500 V, replaceable fuses and overvoltage protection in all ranges. Size 9962- TRUE RMS. Supplied with With batteries (2 for size 118,1 each for size 9917 / 9962). Size 9917; 9962 - Test prods, temperature sensor, cover caps, carrying bag. <57 67 473320 9917 473320 9962 Device type 118 9917 9962 5 47 3320 holeX. Multimeter Information displayed 2000 4000 DC voltage 0.1 mV - 600 V 0.1 mV- 1000 V AC voltage 0.1 mV - 600 V 0.1 mV-1000 V DC current 0.1 mA - 200 mA 0.1 iA- 10 A AC current 0.1 mA - 200 mA 0.1 nA 10 A Resistance 0.1 n - 20 MO 0.1 fi - 40 MO Frequency 1 Hz - 9.9 MHz 1 Hz-10 MHz Capacity - 0.1 pF - 200 uF 0.1 pF - 40 uF Temperature 20°Cto + 760 °C Diode testing - Yes Acoustic continuity test Yes Yes Voltage sensor (non-contact) Yes - Illumination of probe points Yes Data storage key Yes Yes Backlit display - Yes Measurement technique RMS RMS TRUE RMS Overvoltage category CAT IV 600 V CAT IV 600 V; CAT III 1000 V Automatic power-off Yes Yes Power supply 2x081555 LR3 1X081555 6LR61 BENNING HOLEX Test prods Standard 473308 Suitable for 473308 IEC / EN 61010-1 (DIN VDE 0411-1). Digital multimeter No. 473300, digital current clip-on multimeter No. 473305, and insulation resistance meter No. 473420. 473328- Digital multimeter No. 473320 size 9917 / 9962. Version CAT IV 600 V / CAT III 1000 V (with protective caps), CAT I11000 V (without protective caps). 473308- Test prods, 2-piece red / black, L 1.4 m, 0 4 mm. 473328- Test prods, 2-piece red / black, L 1.0 m, 0 4 mm. Measuring tips 0 mm 2 4 5 4/ 3308 BENNING lest prods 5 47 3328 Mu/. Test prods 47 3308_2 BENNING Insulation resistance measurement device IT101 Version Insulation resistance measurement device for insulation and low-resistance measurements on electrical systems, appliances, cables, motors, and generators. Application Measurements Among others low-resistance, insulation resistance (test voltages 50 V, 100 V, 250 V, 500 V, 1000 V), and calculation of the resulting leakage current, resistance with 200 mA test current for testing earth continuity conductor connections, polarisation index, dielectric absorption factor, voltage, resistance. Special features Limit values can be selected for ISO measurement, green LED for OK, red LED for test / external voltage, switchable test prods for triggering the measurement process, memory for 100 values per measurement function, TRUE RMS voltage measurement with low-pass filter, automatic discharge of capacitive voltages, zero balancing of the measurement cables, lock function, category CAT IV. Supplied with Carrying case, test leads, crocodile clips, switchable test prods, rubber protective surround and 4 batteries No. 081555 size LR6. Type IT101 S 47 3470 Insulation resistance measurement device Length xwidthx height mm 207 X 95 X 52 Weight g 630 Power supply 4 X 081555 LR6 932 Main catalogue Hoffmann Group 46
