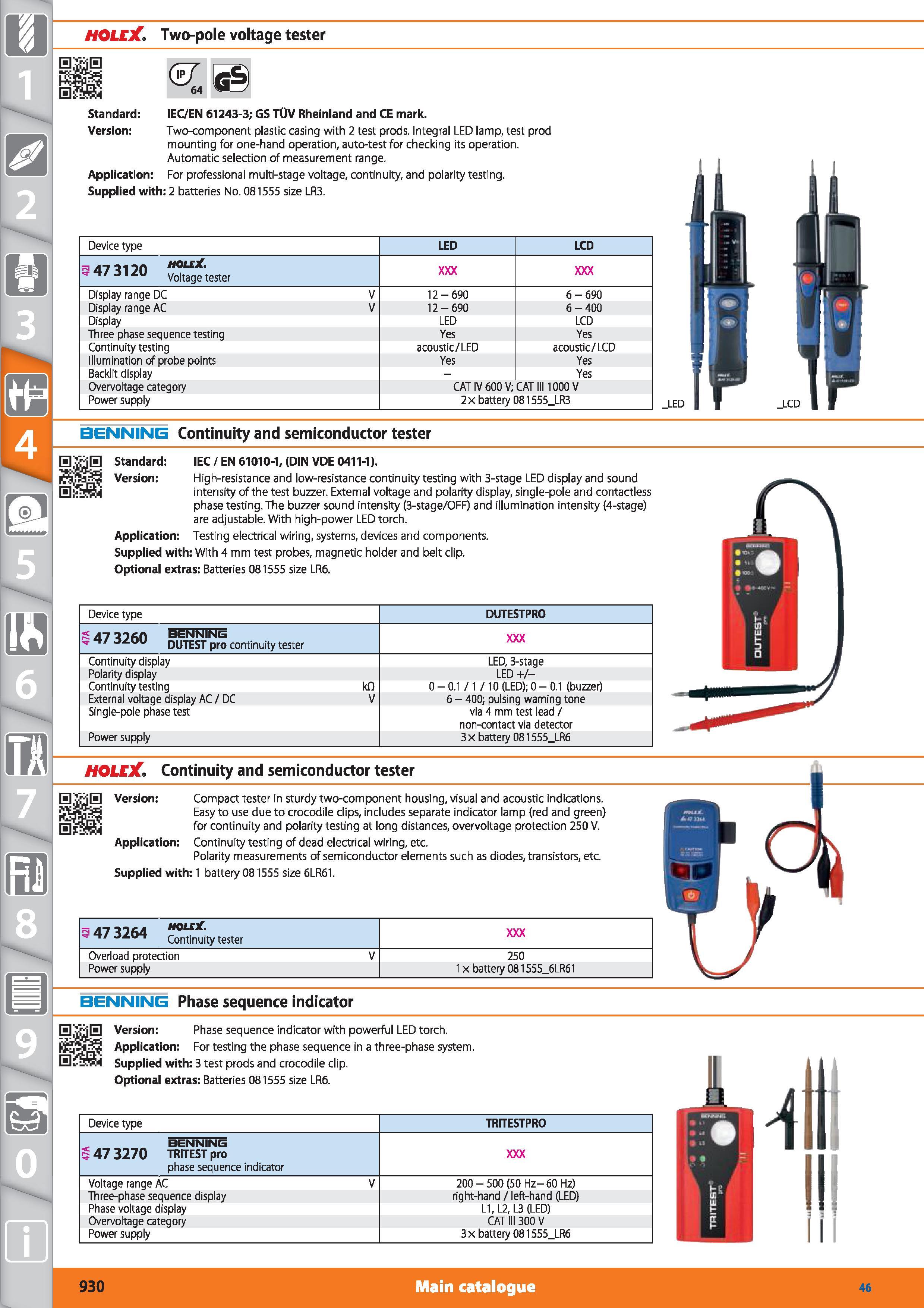

HOLEX Two-pole voltage tester Standard Version Application IEC/EN 61243-3; GS TUV Rheinland and CE mark. Two-component plastic casing with 2 test prods. Integral LED lamp, test prod mounting for one-hand operation, auto-test for checking its operation. Automatic selection of measurement range. For professional multi-stage voltage, continuity, and polarity testing. Supplied with 2 batteries No. 081555 size LR3. Device type i 47 3120 HOLEX Voltage tester Display range DC Display range AC Display Three phase sequence testing Continuity testing Illumination of probe points Backlit display Overvoltage category Power supply LED LCD 12-690 6-690 12-690 6-400 LED LCD Yes Yes acoustic/LED acoustic/LCD Yes Yes Yes CAT IV 600 V; CAT III 1000 V 2 x battery 081555_LR3 _LCD BENNING Continuity and semiconductor tester Standard IEC / EN 61010-1, (DIN VDE 0411-1). Version High-resistance and low-resistance continuity testing with 3-stage LED display and sound intensity of the test buzzer. External voltage and polarity display, single-pole and contactless phase testing. The buzzer sound intensity (3-stage/OFF) and illumination intensity (4-stage) are adjustable. With high-power LED torch. Application Testing electrical wiring, systems, devices and components. Supplied with With 4 mm test probes, magnetic holder and belt clip. Optional extras Batteries 081555 size LR6. Device type DUTESTPRO S 47 3260 HENNING h/ JZOU dutest pro continuity tester Continuity display LED, 3-stage Polarity display LED +/- Continuity testing kO 0-0.1/1/10 (LED); 0 - 0.1 (buzzer) External voltage display AC / DC V 6 - 400; pulsing warning tone Single-pole phase test via 4 mm test lead / non-contact via detector Power supply 3 X battery 081555_LR6 HOLEX Continuity and semiconductor tester Version Compact tester in sturdy two-component housing, visual and acoustic indications. Easy to use due to crocodile clips, includes separate indicator lamp (red and green) for continuity and polarity testing at long distances, overvoltage protection 250 V. Application Continuity testing of dead electrical wiring, etc. Polarity measurements of semiconductor elements such as diodes, transistors, etc. Supplied with 1 battery 081555 size 6LR61. g 47 3264 HOLC)e- - / Continuity tester Overload protection V 250 Power supply 1 x battery 081555_6LR61 BENNING Phase sequence indicator Version Phase sequence indicator with powerful LED torch. Application For testing the phase sequence in a three-phase system. El-aw Supplied with 3 test prods and crocodile clip. Optional extras Batteries 081555 size LR6. Device type BENNING s 47 3270 TRITEST pro phase sequence indicator Voltage range AC Three-phase sequence display Phase voltage display Overvoltage category Power supply TRITESTPRO 200 - 500 (50 Hz-60 Hz) right-hand / left-hand (LED) LI, L2, L3 (LED) CAT III 300 V 3 x battery 081555_LR6 930 Main catalogue Hoffmann Group 46
