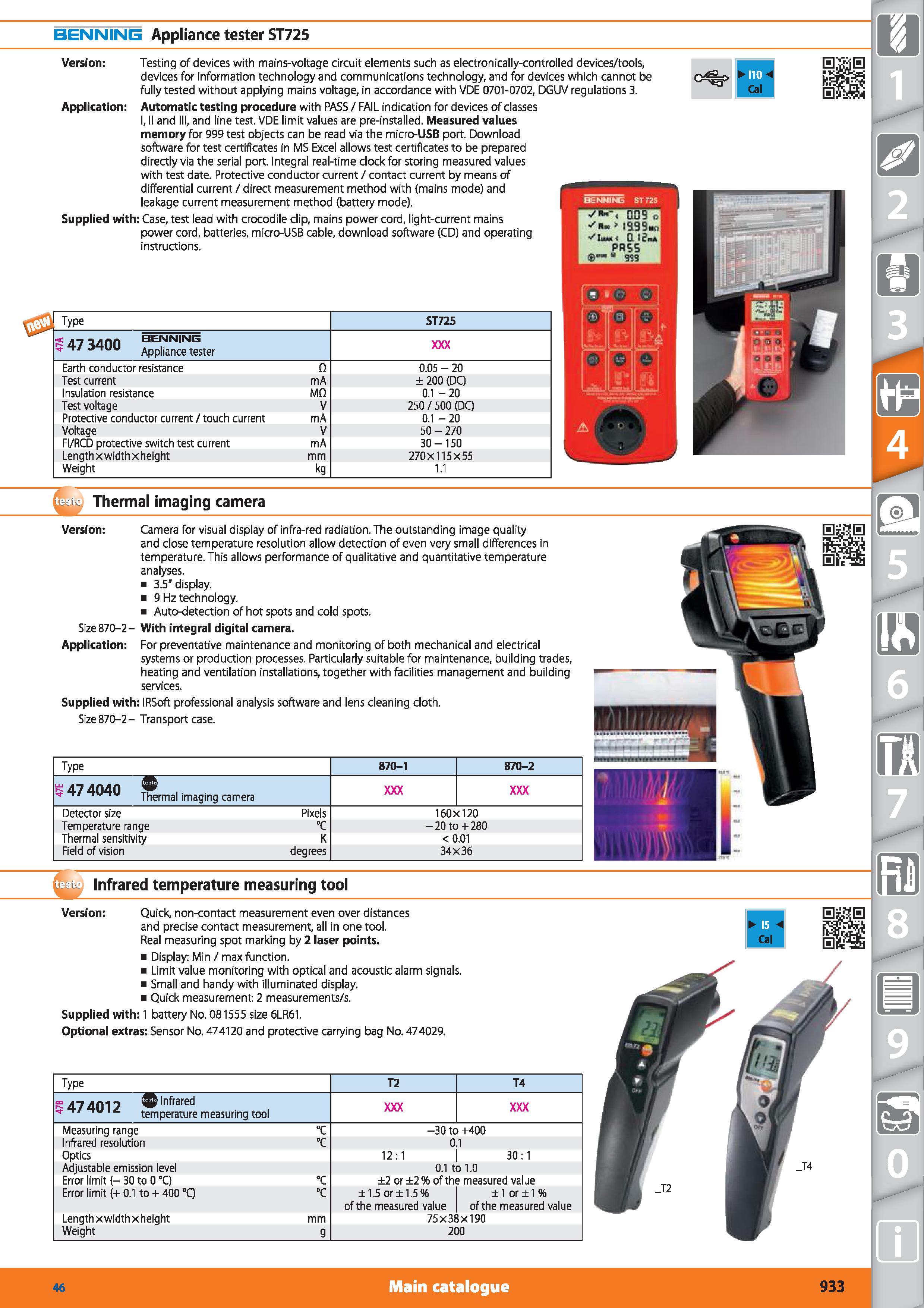

BENNING Appliance tester ST725 Version Camera for visual display of infra-red radiation. The outstanding image quality and close temperature resolution allow detection of even very small differences in temperature. This allows performance of qualitative and quantitative temperature analyses. 3.5” display. 9 Hz technology. Auto-detection of hot spots and cold spots. Size 870-2- With integral digital camera. Application For preventative maintenance and monitoring of both mechanical and electrical systems or production processes. Particularly suitable for maintenance, building trades, heating and ventilation installations, together with facilities management and building services. Supplied with IRSoft professional analysis software and lens cleaning cloth. Size870-2- Transport case. Type 870-1 870-2 s 47 4040 Thermal imaging camera Detector size Pixels 160x120 Temperature range °C -20 to+280 Thermal sensitivity K <0.01 Field of vision degrees 34x36 Infrared temperature measuring tool Version Quick, non-contact measurement even over distances and precise contact measurement, all in one tool. Real measuring spot marking by 2 laser points. Display Min / max function. Limit value monitoring with optical and acoustic alarm signals. Small and handy with illuminated display. Quick measurement 2 measurements/s. Supplied with 1 battery No. 081555 size 6LR61. Optional extras Sensor No. 474120 and protective carrying bag No. 474029. Type T2 T4 S 47 4012 lnfrared temperature measuring tool Measuring range °C -30 to +400 Infrared resolution °C 0.1 Optics 12:1 30:1 Adjustable emission level 0.1 to 1.0 Error limit (- 30 to 0 °C) °C ±2 or ±2 of the measured val ue Error limit (+ 0.1 to + 400 °C) "C ±1.5 or ±1.5% of the measured value ±1 or ±1 of the measured value Length x width x height mm 75x38x190 Weight g 200 Main catalogue Hoffmann Group 46 Type ST725 “Ail/inn BENNING sj 47 3400 Appliance tester Earth conductor resistance n 0.05 - 20 Test current mA ± 200 (DC) Insulation resistance Mn 0.1 - 20 Test voltage V 250/500 (DC) Protective conductor current / touch current mA 0.1 - 20 Voltage V 50 - 270 FI/RCD protective switch test current mA 30-150 Length x width x height mm 270X115X55 Weight kg 1.1 Thermal imaging camera Version Testing of devices with mains-voltage circuit elements such as electronically-controlled devices/tools, devices for information technology and communications technology, and for devices which cannot be fully tested without applying mains voltage, in accordance with VDE 0701-0702, DGUV regulations 3. Application Automatic testing procedure with PASS / FAIL indication for devices of classes I, II and III, and line test. VDE limit values are pre-installed. Measured values memory for 999 test objects can be read via the micro-USB port. Download software for test certificates in MS Excel allows test certificates to be prepared directly via the serial port. Integral real-time clock for storing measured values with test date. Protective conductor current / contact current by means of differential current / direct measurement method with (mains mode) and leakage current measurement method (battery mode). Supplied with Case, test lead with crocodile clip, mains power cord, light-current mains power cord, batteries, micro-USB cable, download software (CD) and operating instructions.
