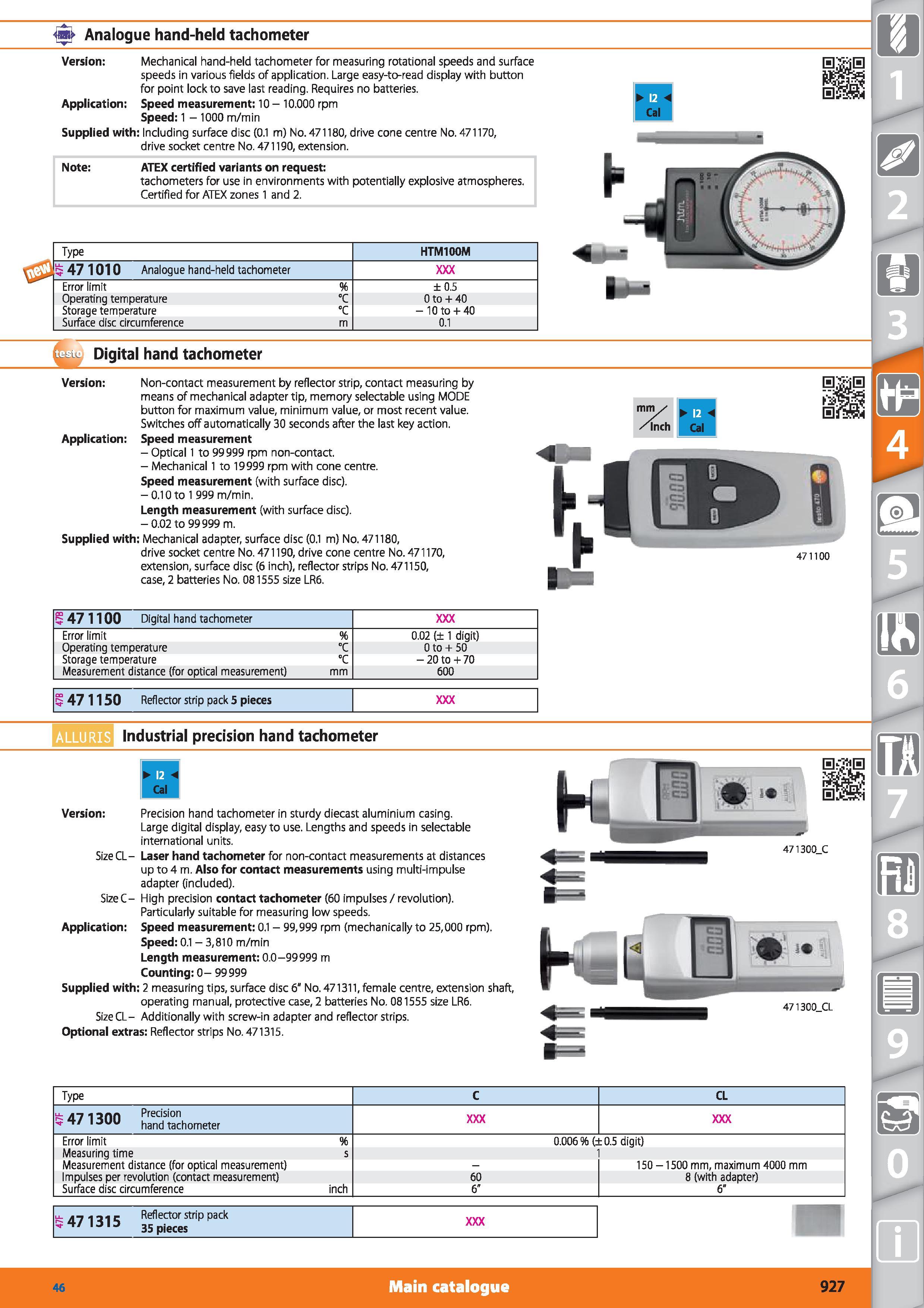

Analogue hand-held tachometer Version Mechanical hand-held tachometer for measuring rotational speeds and surface speeds in various fields of application. Large easy-to-read display with button for point lock to save last reading. Requires no batteries. Application Speed measurement 10 - 10.000 rpm Speed 1 - 1000 m/min Supplied with Including surface disc (0.1 m) No. 471180, drive cone centre No. 471170, drive socket centre No. 471190, extension. Note ATEX certified variants on request tachometers for use in environments with potentially explosive atmospheres. Certified for ATEX zones 1 and 2. 3 Digital hand tachometer Version Non-contact measurement by reflector strip, contact measuring by means of mechanical adapter tip, memory selectable using MODE button for maximum value, minimum value, or most recent value. Switches off automatically 30 seconds after the last key action. Application Speed measurement - Optical 1 to 99999 rpm non-contact. - Mechanical 1 to 19999 rpm with cone centre. Speed measurement (with surface disc). - 0.10 to 1 999 m/min. Length measurement (with surface disc). - 0.02 to 99999 m. Supplied with Mechanical adapter, surface disc (0.1 m) No. 471180, drive socket centre No. 471190, drive cone centre No. 471170, extension, surface disc (6 inch), reflector strips No. 471150, case, 2 batteries No. 081555 size LR6. Type HTM100M 47 1010 Analogue hand-held tachometer Error limit ± 0.5 Operating temperature °C 0 to + 40 Storage temperature °C - 10 to+ 40 Surface disc circumference m 0.1 471100 47 1100 Digital hand tachometer Error limit 0.02 (± 1 digit) Operating temperature °C 0 to + 50 Storage temperature "C - 20 to + 70 Measurement distance (for optical measurement) mm 600 47 1150 Reflector strip pack 5 pieces ALLURIS Industrial precision hand tachometer 0 0 ra < Cal Version Precision hand tachometer in sturdy diecast aluminium casing. Large digital display, easy to use. Lengths and speeds in selectable international units. Size CL- Laser hand tachometer for non-contact measurements at distances up to 4 m. Also for contact measurements using multi-impulse adapter (included). Size C - High precision contact tachometer (60 impulses / revolution). Particularly suitable for measuring low speeds. Application Speed measurement 0.1 - 99,999 rpm (mechanically to 25,000 rpm). Speed 0.1 - 3,810 m/min Length measurement 0.0 -99999 m Counting 0- 99999 Supplied with 2 measuring tips, surface disc 6" No. 471311, female centre, extension shaft, operating manual, protective case, 2 batteries No. 081555 size LR6. Size CL- Additionally with screw-in adapter and reflector strips. Optional extras Reflector strips No. 471315. Type c CL A7 1 nn Precision hand tachometer Error limit 0.006% (±0.5 digit) Measuring time s 1 Measurement distance (for optical measurement) 150-1500 mm, maximum 4000 mm Impulses per revolution (contact measurement) 60 8 (with adapter) Surface disc circumference inch 6" 6” 471315 Reflector strip pack 35 pieces Main catalogue Hoffmann Group 46 927
