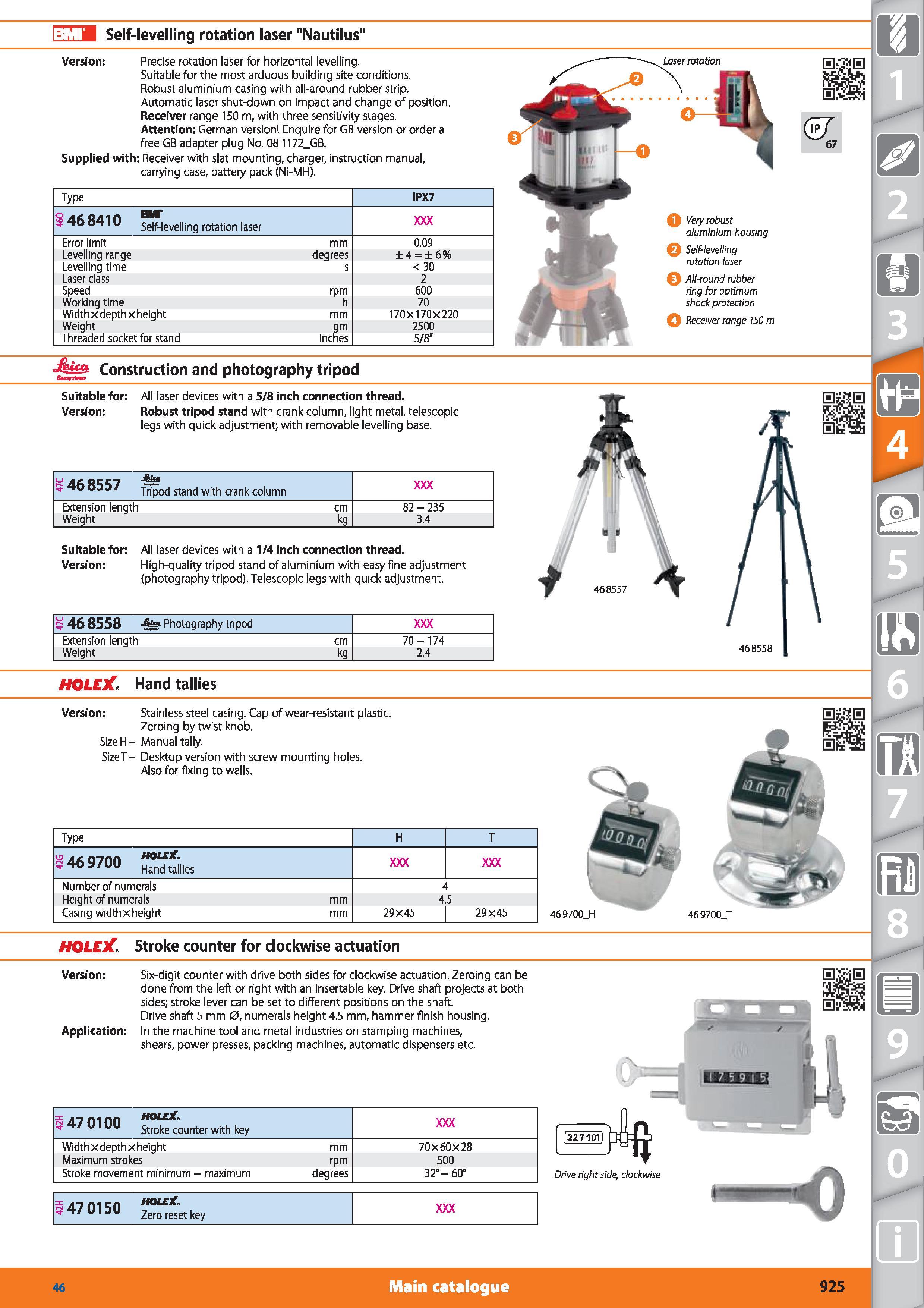

Self-levelling rotation laser "Nautilus" Version Precise rotation laser for horizontal levelling. Suitable for the most arduous building site conditions. Robust aluminium casing with all-around rubber strip. Automatic laser shut-down on impact and change of position. Receiver range 150 m, with three sensitivity stages. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. Supplied with Receiver with slat mounting, charger, instruction manual, carrying case, battery pack (Ni-MH). Laser rotation Type IPX7 46 8410 Self-levelling rotation laser Error limit mm 0.09 Levelling range degrees ± 4 ± 6% Levelling time s <30 Laser class 2 Speed rpm 600 Working time h 70 Width x depth x height mm 170X170X220 Weight gm 2500 Threaded socket for stand inches 5/8” & 67 Q Very robust aluminium housing Q Self-levelling rotation laser All-round rubber ring for optimum shock protection Receiver range 150 m fe Construction and photography tripod Suitable for All laser devices with a 5/8 inch connection thread. Version Robust tripod stand with crank column, light metal, telescopic legs with quick adjustment; with removable levelling base. u /- Qrrn Tripod stand with crank column Extension length cm 82 - 235 Weight kg 3.4 Suitable for All laser devices with a 1/4 inch connection thread. Version High-quality tripod stand of aluminium with easy fine adjustment (photography tripod). Telescopic legs with quick adjustment. 46 8558 Photography tripod Extension length cm 70-174 Weight kg 2.4 468558 HOLE3C. Hand tallies Version Stainless steel casing. Cap of wear-resistant plastic. Zeroing by twist knob. SizeH- Manual tally. SizeT- Desktop version with screw mounting holes. Also for fixing to walls. Type H T S 469700 Number of numerals 4 Height of numerals mm 4.5 Casing widthxheight mm 29X45 29X45 469700_T HOLEX Stroke counter for clockwise actuation Version Six-digit counter with drive both sides for clockwise actuation. Zeroing can be done from the left or right with an insertable key. Drive shaft projects at both sides; stroke lever can be set to different positions on the shaft. Drive shaft 5 mm 0, numerals height 4.5 mm, hammer finish housing. Application In the machine tool and metal industries on stamping machines, shears, power presses, packing machines, automatic dispensers etc. s 47 0100 Stroke c'ounter with key Widthxdepthxheight mm 70x60x28 Maximum strokes rpm 500 Stroke movement minimum - maximum degrees 32°-60° i 47 0150 HOLEX Zero reset key Drive right side, clockwise Main catalogue Hoffmann Group 46 925
