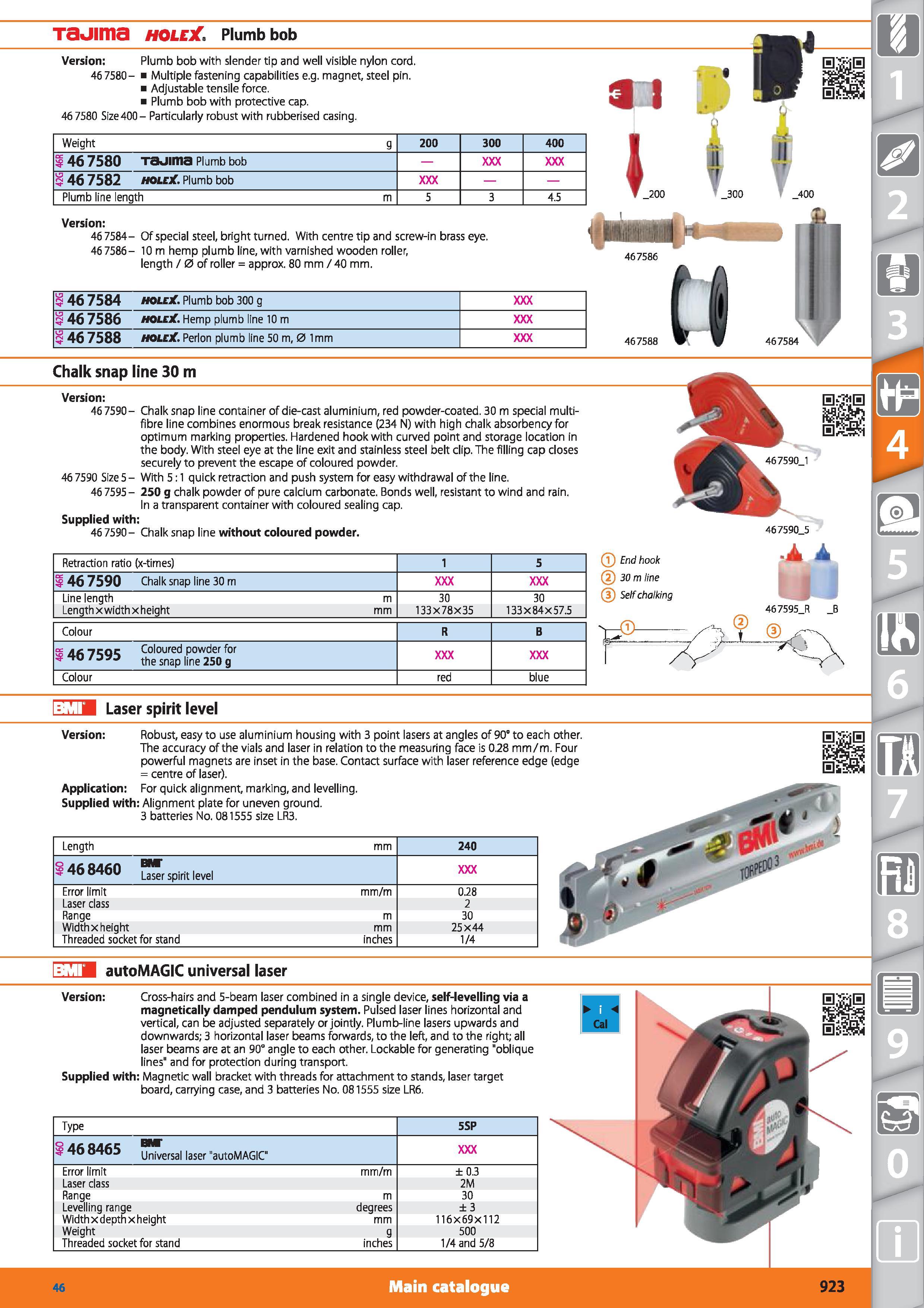

Tajima holejC Plumb bob Version Plumb bob with slender tip and well visible nylon cord. 46 7580- Multiple fastening capabilities e.g. magnet, steel pin. Adjustable tensile force. Plumb bob with protective cap. 46 7580 Size 400- Particularly robust with rubberised casing. Weight g 200 300 400 i 46 7580 Tauima Plumb bob 1 46 7582 HOLEX Plumb bob Plumb line length m 5 3 4.5 Version 46 7584- Of special steel, bright turned. With centre tip and screw-in brass eye. 46 7586- 10 m hemp plumb line, with varnished wooden roller, length / 0 of roller approx. 80 mm / 40 mm. 1 46 7584 holbC. Plumb bob 300 g 46 7586 holbC. Hemp plumb line 10 m 3 46 7588 HOLEX Perlon plumb line 50 m, 0 1mm Chalk snap line 30 m Version 46 7590- Chalk snap line container of die-cast aluminium, red powder-coated. 30 m special multifibre line combines enormous break resistance (234 N) with high chalk absorbency for optimum marking properties. Hardened hook with curved point and storage location in the body. With steel eye at the line exit and stainless steel belt clip. The filling cap closes securely to prevent the escape of coloured powder. With 5:1 quick retraction and push system for easy withdrawal of the line. 46 7595 - 250 g chalk powder of pure calcium carbonate. Bonds well, resistant to wind and rain. In a transparent container with coloured sealing cap. Supplied with 46 7590- Chalk snap line without coloured powder. 46 7590 Size 5- Retraction ratio (x-times) 1 5 3 46 7590 Chalk snap line 30 m Line length m 30 30 Length x width x height mm 133x78x35 133x84x57.5 Colour R B Ad 7CQC Coloured powder for the snap line 250 g Colour red blue Laser spirit level Version Robust, easy to use aluminium housing with 3 point lasers at angles of 90° to each other. The accuracy of the vials and laser in relation to the measuring face is 0.28 mm/m. Four powerful magnets are inset in the base. Contact surface with laser reference edge (edge centre of laser). Application For quick alignment, marking, and levelling. Supplied with Alignment plate for uneven ground. 3 batteries No. 081555 size LR3. Length mm 240 46 8460 rspiritlevel Error limit mm/m 0.28 Laser class 2 Range m 30 Widthxheight mm 25x44 Threaded socket for stand inches 1/4 autoMAGIC universal laser Version Cross-hairs and 5-beam laser combined in a single device, self-levelling via a magnetically damped pendulum system. Pulsed laser lines horizontal and vertical, can be adjusted separately or jointly. Plumb-line lasers upwards and downwards; 3 horizontal laser beams forwards, to the left, and to the right; all laser beams are at an 90° angle to each other. Lockable for generating "oblique lines" and for protection during transport. Supplied with Magnetic wall bracket with threads for attachment to stands, laser target board, carrying case, and 3 batteries No. 081555 size LR6. Type 5SP 46 8465 Universal laser "autoMAGIC" Error limit mm/m ±0.3 Laser class 2M Range m 30 Levelling range degrees ± 3 Widthxdepthxheight mm 116x69x112 Weight 9 500 Threaded socket for stand inches 1/4 and 5/8 Main catalogue Hoffmann Group 46 923
