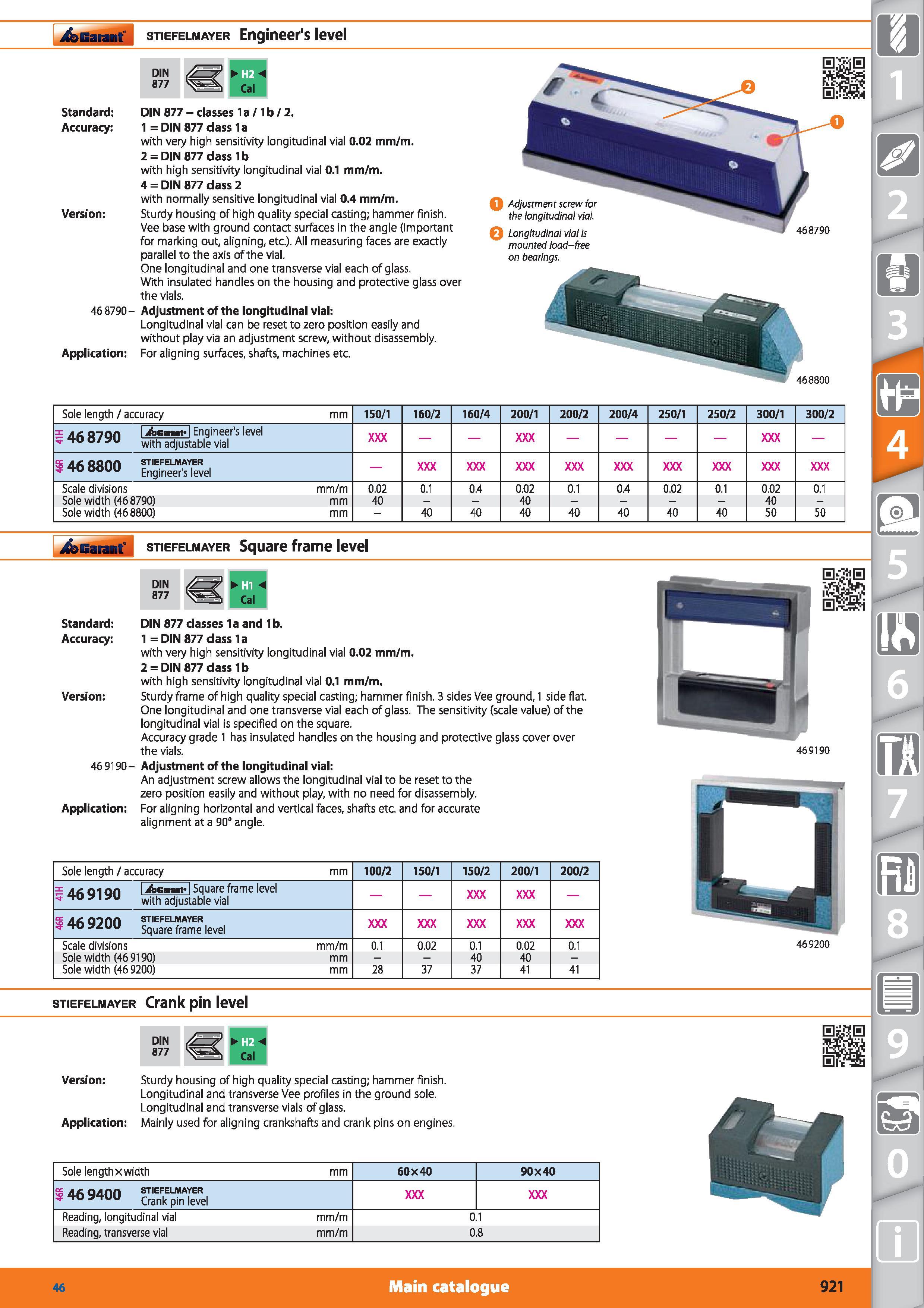

Garant stiefelmayer Engineer's level Standard Accuracy Version DIN 877 DIN 877 - classes 1 a / 1 b / 2. 1 DIN 877 class la with very high sensitivity longitudinal vial 0.02 mm/m. 2 DIN 877 class 1b with high sensitivity longitudinal vial 0.1 mm/m. 4 DIN 877 class 2 with normally sensitive longitudinal vial 0.4 mm/m. Sturdy housing of high quality special casting; hammer finish. Vee base with ground contact surfaces in the angle (important for marking out, aligning, etc.). All measuring faces are exactly parallel to the axis of the vial. One longitudinal and one transverse vial each of glass. With insulated handles on the housing and protective glass over the vials. 46 8790- Adjustment of the longitudinal vial Longitudinal vial can be reset to zero position easily and without play via an adjustment screw, without disassembly. Application For aligning surfaces, shafts, machines etc. ( Adjustment screw for the longitudinal vial. Q Longitudinal vial is mounted load-free on bearings. 468790 468800 Sole length / accuracy mm 150/1 160/2 160/4 200/1 200/2 200/4 250/1 250/2 300/1 300/2 146 8790 1 i&Gmf 1 Enqineer's level with adjustable vial i 46 8800 STIEFELMAYER Engineer's level Scale divisions mm/m 0.02 0.1 0.4 0.02 0.1 0.4 0.02 0.1 0.02 0.1 Sole width (468790) mm 40 40 40 Sole width (468800) mm - 40 40 40 40 40 40 40 50 50 jfeGarant stiefelmayer Square frame level DIN 877 ffl < Cal 0 0 Standard Accuracy Version 46 9190- Application DIN 877 classes la and 1b. 1 DIN 877 class la with very high sensitivity longitudinal vial 0.02 mm/m. 2 DIN 877 class 1 b with high sensitivity longitudinal vial 0.1 mm/m. Sturdy frame of high quality special casting; hammer finish. 3 sides Vee ground, 1 side flat. One longitudinal and one transverse vial each of glass. The sensitivity (scale value) of the longitudinal vial is specified on the square. Accuracy grade 1 has insulated handles on the housing and protective glass cover over the vials. Adjustment of the longitudinal vial An adjustment screw allows the longitudinal vial to be reset to the zero position easily and without play, with no need for disassembly. For aligning horizontal and vertical faces, shafts etc. and for accurate alignment at a 90° angle. 469190 Sole length / accuracy mm 100/2 150/1 150/2 200/1 200/2 a c. ni nn I jfecmnt I Square frame level with adjustable vial S if. qpnn stiefelmayer SS TO yZUU square frame eve Scale divisions mm/m 0.1 0.02 0.1 0.02 0.1 Sole width (469190) mm 40 40 - Sole width (46 9200) mm 28 37 37 41 41 469200 stiefelmayer Crank pin level DIN 877 Cal Version Sturdy housing of high quality special casting; hammer finish. Longitudinal and transverse Vee profiles in the ground sole. Longitudinal and transverse vials of glass. Application Mainly used for aligning crankshafts and crank pins on engines. Sole lengthxwidth mm 60X40 90X40 1469400 SnEFELMAYER Crank pin level Reading, longitudinal vial mm/m 0.1 Reading, transverse vial mm/m 0.8 Main catalogue Hoffmann Group 46 921
