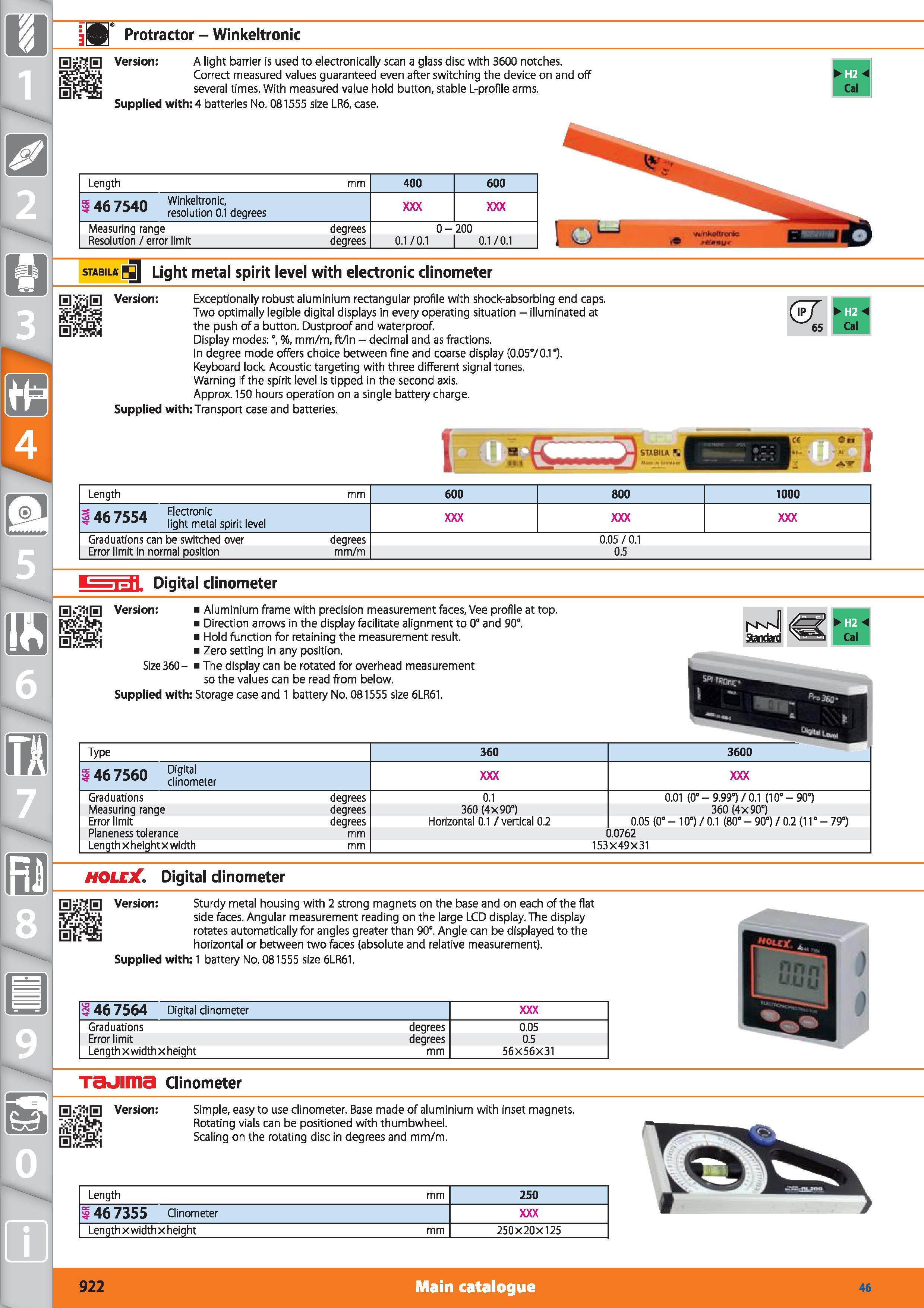

1 Protractor - Winkeltronic Version A light barrier is used to electronically scan a glass disc with 3600 notches. Correct measured values guaranteed even after switching the device on and off several times. With measured value hold button, stable L-profile arms. Supplied with 4 batteries No. 081555 size LR6, case. Length mm 400 600 3 46 7540 Winkeltronic, resolution 0.1 degrees Measuring range degrees 0- 200 Resolution / error limit degrees 0.1/0.1 0.1 /0.1 STABILA 3 Light metal spirit level with electronic clinometer Da Version Exceptionally robust aluminium rectangular profile with shock-absorbing end caps. Two optimally legible digital displays in every operating situation - illuminated at the push of a button. Dustproof and waterproof. Display modes °, %, mm/m, ft/in - decimal and as fractions. In degree mode offers choice between fine and coarse display (0.0570.1°). Keyboard lock Acoustic targeting with three different signal tones. Warning if the spirit level is tipped in the second axis. Approx. 150 hours operation on a single battery charge. Supplied with Transport case and batteries. & 65 Cal tiu L. U Length mm 600 800 1000 s Afi 7C1-j Electronic light metal spirit level Graduations can be switched over degrees 0.05/0.1 Error limit in normal position mm/m 0.5 Digital clinometer E 1S Version Aluminium frame with precision measurement faces, Vee profile at top. Direction arrows in the display facilitate alignment to 0° and 90°. Hold function for retaining the measurement result. Zero setting in any position. Size 360 - The display can be rotated for overhead measurement so the values can be read from below. Supplied with Storage case and 1 battery No. 081555 size 6LR61. B Standard Cal Type 360 3600 1467560 Graduations degrees 0.1 0.01 (0s- 9.99°)/ 0.1 (10°-90°) Measuring range degrees 360 (4x90°) 360 (4x90°) Error limit degrees Horizontal 0.1 / vertical 0.2 0.05 (0° - 10°) / 0.1 (80° - 90°) / 0.2 (11 - 79°) Planeness tolerance mm 0.0762 Length x heightx width mm 153X49X31 HOLEX Digital clinometer Version Sturdy metal housing with 2 strong magnets on the base and on each of the flat side faces. Angular measurement reading on the large LCD display. The display rotates automatically for angles greater than 90°. Angle can be displayed to the horizontal or between two faces (absolute and relative measurement). Supplied with 1 battery No. 081555 size 6LR61. 46 7564 Digital clinometer Graduations degrees 0.05 Error limit degrees 0.5 Length xwidthx height mm 56X56X31 TaUIITia Clinometer 0:550 Version Simple, easy to use clinometer. Base made of aluminium with inset magnets. Rotating vials can be positioned with thumbwheel. Scaling on the rotating disc in degrees and mm/m. Length mm 250 1 46 7355 Clinometer Length xwidthx height mm 250x20x125 922 Main catalogue Hoffmann Group 46
