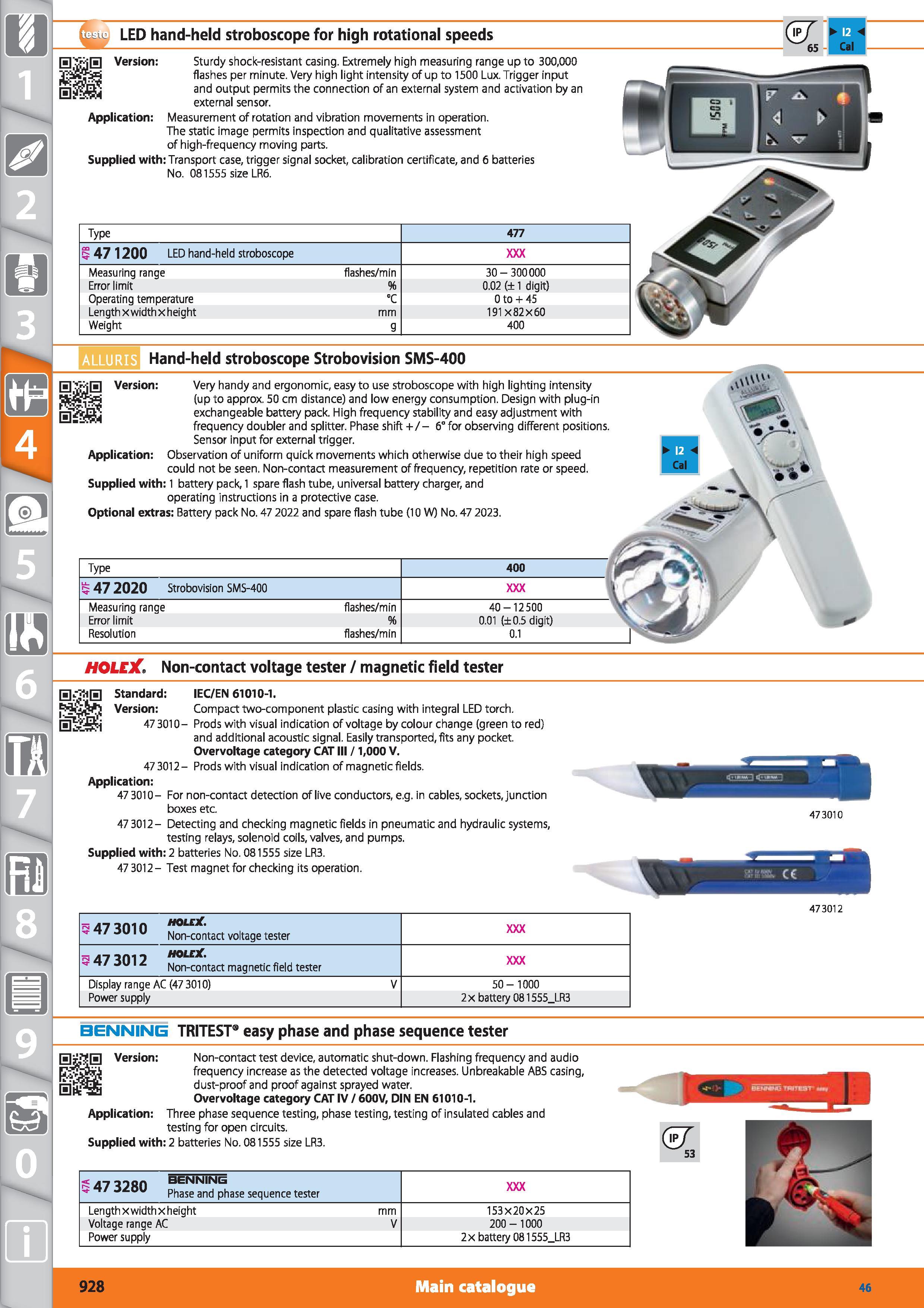

LED hand-held stroboscope for high rotational speeds HSiiS Version Sturdy shock-resistant casing. Extremely high measuring range up to 300,000 flashes per minute. Very high light intensity of up to 1500 Lux. Trigger input and output permits the connection of an external system and activation by an external sensor. Application Measurement of rotation and vibration movements in operation. The static image permits inspection and qualitative assessment of high-frequency moving parts. Supplied with Transport case, trigger signal socket, calibration certificate, and 6 batteries No. 081555 size LR6. & 65 ra < Cal Type 477 47 1200 LED hand-held stroboscope Measuring range flashes/m in 30-300000 Error limit 96 0.02 (± 1 digit) Operating temperature °C 0 to + 45 Length xwidthx height mm 191x82x60 Weight g 400 ALLURIS Hand-held stroboscope Strobovision SMS-400 Version Very handy and ergonomic, easy to use stroboscope with high lighting intensity (up to approx. 50 cm distance) and low energy consumption. Design with plug-in exchangeable battery pack. High frequency stability and easy adjustment with frequency doubler and splitter. Phase shift +/- 6° for observing different positions. Sensor input for external trigger. Application Observation of uniform quick movements which otherwise due to their high speed could not be seen. Non-contact measurement of frequency, repetition rate or speed. Supplied with 1 battery pack, 1 spare flash tube, universal battery charger, and operating instructions in a protective case. Optional extras Battery pack No. 47 2022 and spare flash tube (10 W) No. 47 2023. Type 400 47 2020 Strobovision SMS-400 Measuring range flashes/m in 40-12500 Error limit 0.01 (±0.5 digit) Resolution flashes/m in 0.1 HOLEX Non-contact voltage tester / magnetic field tester Standard Version IEC/EN 61010-1. >= . Compact two-component plastic casing with integral LED torch. EL’ilSi 47 3010- Prods with visual indication of voltage by colour change (green to red) and additional acoustic signal. Easily transported, fits any pocket. Overvoltage category CAT III / 1,000 V. 473012- Prods with visual indication of magnetic fields. Application 47 3010- For non-contact detection of live conductors, e.g. in cables, sockets, junction boxes etc. 47 3012- Detecting and checking magnetic fields in pneumatic and hydraulic systems, testing relays, solenoid coils, valves, and pumps. Supplied with 2 batteries No. 081555 size LR3. 47 3012- Test magnet for checking its operation. 473010 5 473010 HOLEX Non-contact voltage tester 5 473012 HOLEX Non-contact magnetic field tester Display range AC (47 3010) V 50- 1000 Power supply 2 x battery 081555_LR3 473012 BENNING TRUEST19 easy phase and phase sequence tester 0 Version Non-contact test device, automatic shut-down. Flashing frequency and audio frequency increase as the detected voltage increases. Unbreakable ABS casing, dust-proof and proof against sprayed water. Overvoltage category CAT IV / 600V, DIN EN 61010-1. Application Three phase sequence testing, phase testing, testing of insulated cables and testing for open circuits. Supplied with 2 batteries No. 081555 size LR3. (zl 53 47 3280 penning Phase and phase sequence tester Length xwidthx height mm 153X20X25 Voltage range AC V 200- 1000 Power supply 2 x battery 081555 LR3 928 Main catalogue Hoffmann Group 46
