945 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.945

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 945 0945 ENG Lab2u

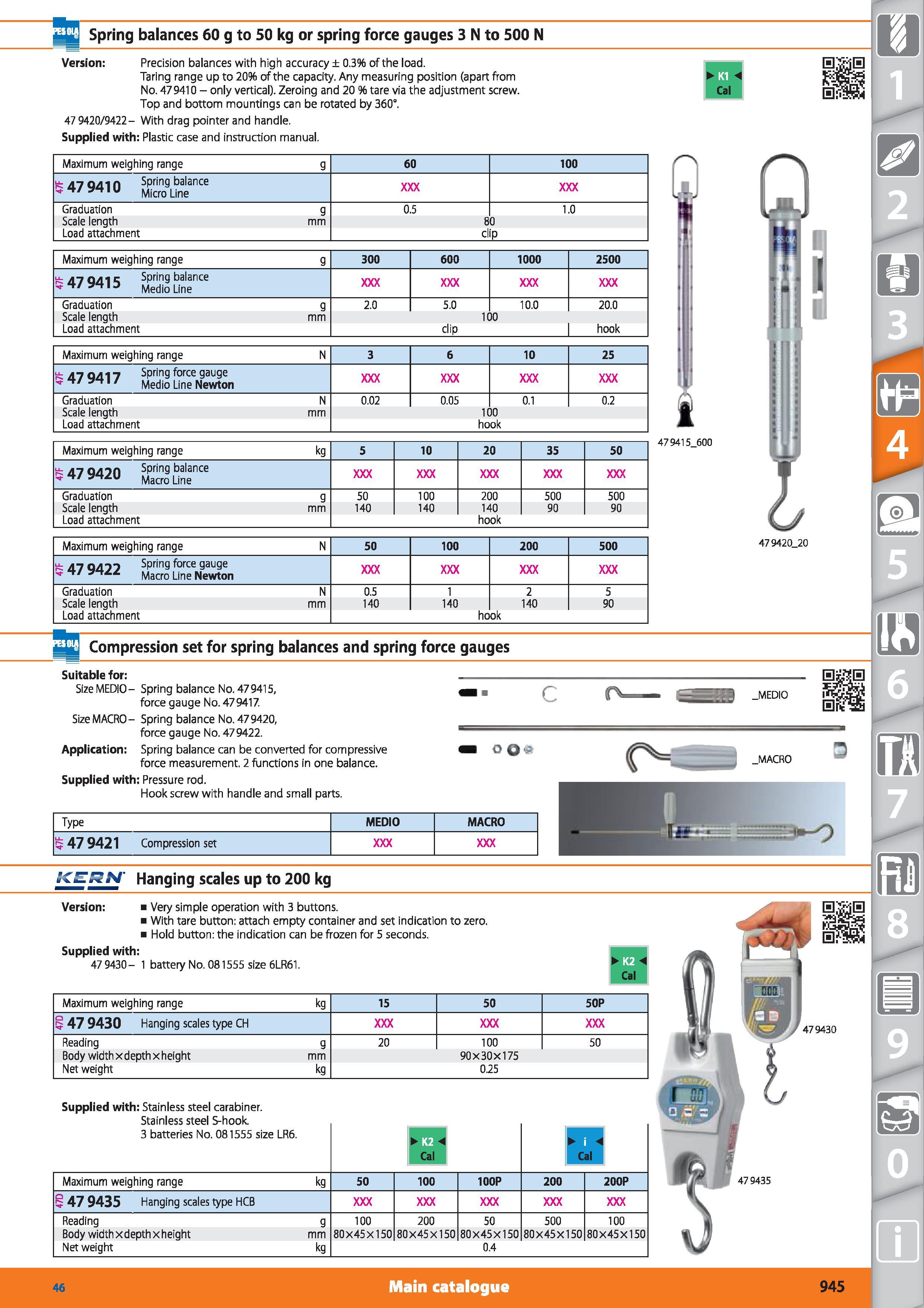

Spring balances 60 g to 50 kg or spring force gauges 3 N to 500 N Version Precision balances with high accuracy ± 0.3% of the load. Taring range up to 20% of the capacity. Any measuring position (apart from No. 479410 - only vertical). Zeroing and 20 tare via the adjustment screw. Top and bottom mountings can be rotated by 360°. 47 9420/9422- With drag pointer and handle. Supplied with Plastic case and instruction manual. Maximum weighing range g 60 100 ft47Q4in Spring balance Micro Line Graduation g 0.5 1.0 Scale length mm 80 Load attachment clip Maximum weighing range g 300 600 1000 2500 ft 47 941 Spring balance Medio Line Graduation g 2.0 5.0 10.0 20.0 Scale length mm 100 Load attachment clip hook Maximum weighing range N 3 6 10 25 ft 47 9417 Spring force gauge Medio Line Newton Graduation N 0.02 0.05 0.1 0.2 Scale length mm 100 Load attachment hook Maximum weighing range kg 5 10 20 35 50 ft 47 9420 Spring balance ’ Macro Line Graduation g 50 100 200 500 500 Scale length mm 140 140 140 90 90 Load attachment hook 479415 600 Maximum weighing range N 50 100 200 500 ft 47 9477 Spring force gauge t/ Macro Line Newton Graduation N 0.5 1 2 5 Scale length mm 140 140 140 90 Load attachment hook I 479420L20 Compression set for spring balances and spring force gauges Suitable for Size MEDIO- Spring balance No. 479415, force gauge No. 479417. Size MACRO- Spring balance No. 479420, force gauge No. 479422. Application Spring balance can be converted for compressive force measurement. 2 functions in one balance. Supplied with Pressure rod. Hook screw with handle and small parts. c mm do _MEDIO _MACRO Type MEDIO MACRO 47 9421 Compression set xr"N Hanging scales up to 200 kg Version Very simple operation with 3 buttons. With tare button attach empty container and set indication to zero. Hold button the indication can be frozen for 5 seconds. Supplied with 47 9430- 1 battery No. 081555 size 6LR61. Cal Maximum weighing range kg 15 50 50P 47 9430 Hanging scales type CH Reading g 20 100 50 Body width x depth x height mm 90 x 30x175 Net weight kg 0.25 Supplied with Stainless steel carabiner. Stainless steel S-hook 3 batteries No. 081555 size LR6. Maximum weighing range kg U 47 9435 Hanging scales type HCB Reading Body width x depth x height Net weight g mm kg 50 100 80X45X150 100 200 80X45X150 100P 50 80X45X150 0.4 Cal 200 500 80X45X150 200P 100 80X45X150 46 Main catalogue
