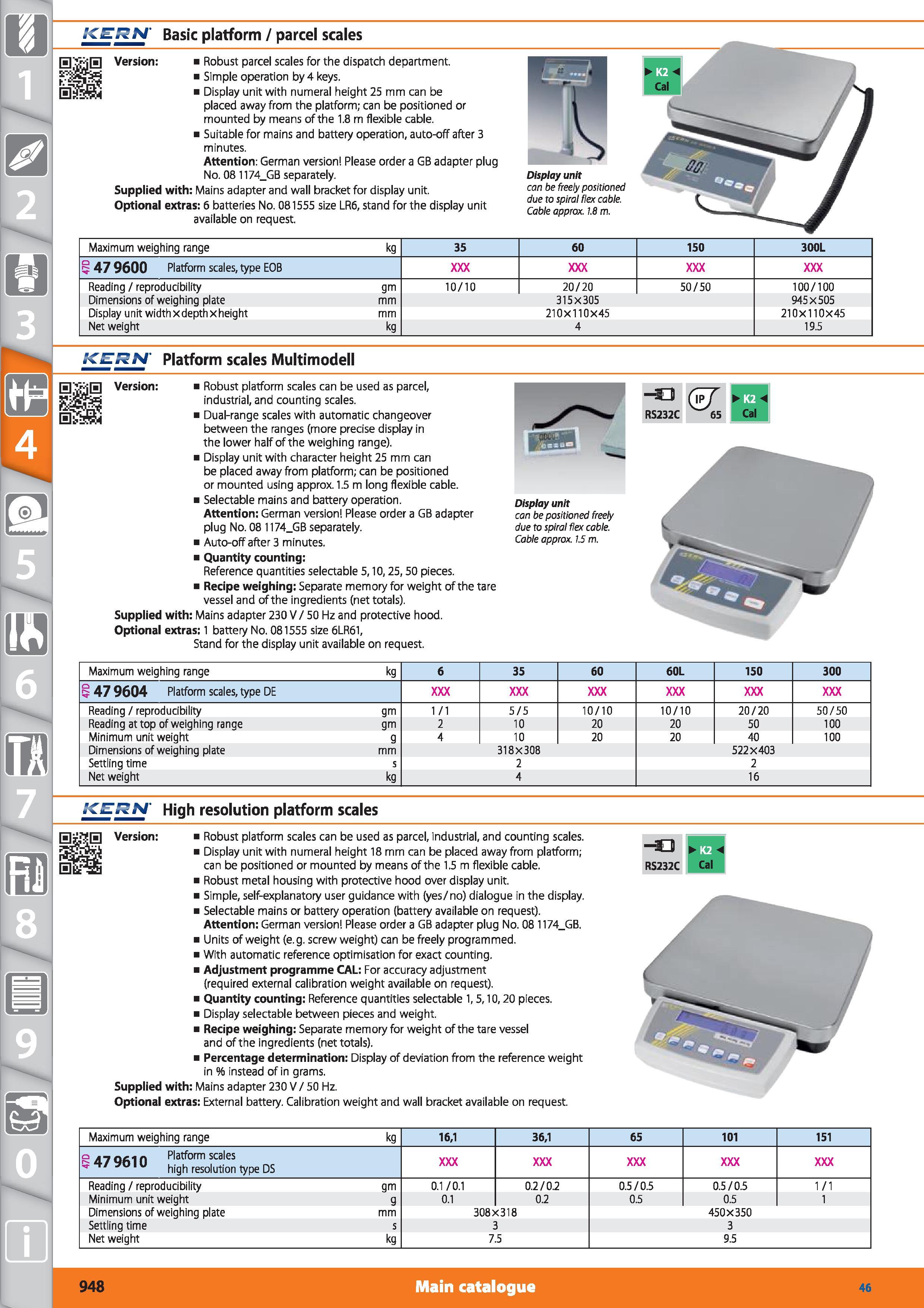

1 Basic platform / parcel scales Version Robust parcel scales for the dispatch department. Simple operation by 4 keys. Display unit with numeral height 25 mm can be placed away from the platform; can be positioned or mounted by means of the 1.8 m flexible cable. Suitable for mains and battery operation, auto-off after 3 minutes. Attention German version Please order a GB adapter plug No. 08 1174_GB separately. Supplied with Mains adapter and wall bracket for display unit. Optional extras 6 batteries No. 081555 size LR6, stand for the display unit available on request. Display unit can be freely positioned due to spiral flex cable. Cable approx 1.8 m. Maximum weighing range kg 35 60 150 300L 47 9600 Platform scales, type EOB Reading / reproducibility gm 10/10 20/20 50/50 100/100 Dimensions of weighing plate mm 315X305 945 X 505 Display u nit width x depth x height mm 210X110X45 210X110X45 Net weight kg 4 19.5 KEEN' Platform scales Multimodell (Ul to Version Robust platform scales can be used as parcel, industrial, and counting scales. Dual-range scales with automatic changeover between the ranges (more precise display in the lower half of the weighing range). Display unit with character height 25 mm can be placed away from platform; can be positioned or mounted using approx. 1.5 m long flexible cable. Selectable mains and battery operation. Attention German version Please order a GB adapter plug No. 08 1174_GB separately. Auto-off after 3 minutes. Quantity counting Reference quantities selectable 5,10,25,50 pieces. Recipe weighing Separate memory for weight of the tare vessel and of the ingredients (net totals). Supplied with Mains adapter 230 V/ 50 Hz and protective hood. Optional extras 1 battery No. 081555 size 6LR61, Stand for the display unit available on request. Display unit can be positioned freely due to spiral flex cable. Cable approx 1.5 m. Maximum weighing range kg 6 35 60 60L 150 300 S 47 9604 Platform scales, type DE Reading / reproducibility gm 1/1 5/5 10/10 10/10 20/20 50/50 Reading at top of weighing range gm 2 10 20 20 50 100 Minimum unit weight g 4 10 20 20 40 100 Dimensions of weighing plate mm 318X308 522X403 Settling time s 2 2 Net weight kg 4 16 KEEN' High resolution platform scales Version Robust platform scales can be used as parcel, industrial, and counting scales. Display unit with numeral height 18 mm can be placed away from platform; can be positioned or mounted by means of the 1.5 m flexible cable. Robust metal housing with protective hood over display unit. Simple, self-explanatory user guidance with (yes/no) dialogue in the display. Selectable mains or battery operation (battery available on request). Attention German version Please order a GB adapter plug No. 08 1174_GB. Units of weight (e.g. screw weight) can be freely programmed. With automatic reference optimisation for exact counting. Adjustment programme CAL For accuracy adjustment (required external calibration weight available on request). Quantity counting Reference quantities selectable 1,5,10,20 pieces. Display selectable between pieces and weight. Recipe weighing Separate memory for weight of the tare vessel and of the ingredients (net totals). Percentage determination Display of deviation from the reference weight in instead of in grams. Supplied with Mains adapter 230 V / 50 Hz. Optional extras External battery. Calibration weight and wall bracket available on request. -o < RS232C Cal Maximum weighing range kg 16,1 36,1 65 101 151 m-m n Platform scales 5 tl 90 U high resolution type DS Reading / reproducibility gm 0.1 /0.1 0.2/0.2 0.5/0.5 0.5/0.5 1/1 Minimum unit weight 9 0.1 0.2 0.5 0.5 1 Dimensions of weighing plate mm 308x318 450x350 Settling time s 3 3 Net weight kg 7.5 9.5 948 Main catalogue Hoffmann Group 46
