947 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.947

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 947 0947 ENG Lab2u

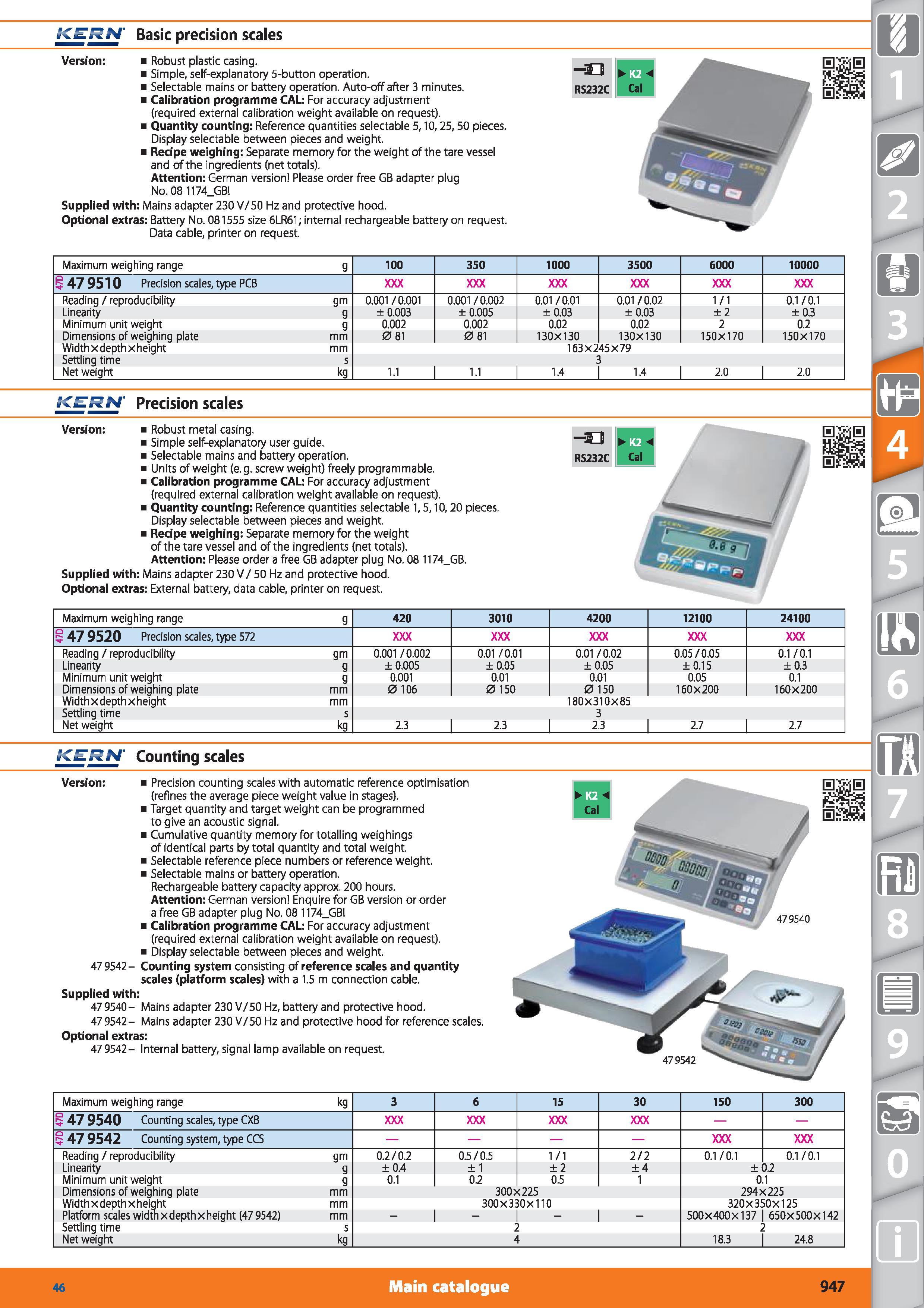

cr"N Basic precision scales Version Robust plastic casing. Simple, self-explanatory 5-button operation. Selectable mains or battery operation. Auto-off after 3 minutes. Calibration programme CAL For accuracy adjustment (required external calibration weight available on request). Quantity counting Reference quantities selectable 5,10,25,50 pieces. Display selectable between pieces and weight. Recipe weighing Separate memory for the weight of the tare vessel and of the ingredients (net totals). Attention German version Please order free GB adapter plug No. 08 1174_GB Supplied with Mains adapter 230 V/50 Hz and protective hood. Optional extras Battery No. 081555 size 6LR61; internal rechargeable battery on request. Data cable, printer on request. -SJ B < RS232C Cal Maximum weighing range g 100 350 1000 3500 6000 10000 47 9510 Precision scales, type PCB Reading / reproducibility gm 0.001 / 0.001 0.001 / 0.002 0.01 /0.01 0.01 /0.02 1/1 0.1/0.1 Linearity g ± 0.003 ± 0.005 ±0.03 ±0.03 ±2 ±0.3 Minimum unit weight g 0.002 0.002 0.02 0.02 2 0.2 Dimensions of weighing plate mm 0 81 0 81 130x130 130x130 150x170 150x170 Widthxdepthxheight mm 163x245x79 Settling time s Net weight kg 1.1 1.1 1.4 1.4 2.0 2.0 Precision scales Version Robust metal casing. Simple self-explanatory user guide. Selectable mains and battery operation. Units of weight (e.g. screw weight) freely programmable. Calibration programme CAL For accuracy adjustment (required external calibration weight available on request). Quantity counting Reference quantities selectable 1,5,10,20 pieces. Display selectable between pieces and weight. Recipe weighing Separate memory for the weight of the tare vessel and of the ingredients (net totals). Attention Please order a free GB adapter plug No. 08 1174_GB. Supplied with Mains adapter 230 V/ 50 Hz and protective hood. Optional extras External battery, data cable, printer on request. -a R 4 RS232C Cal Maximum weighing range g 420 3010 4200 12100 24100 47 9520 Precision scales, type 572 Reading / reproducibility gm 0.001 / 0.002 0.01 /0.01 0.01 /0.02 0.05/0.05 0.1/0.1 Linearity g ±0.005 ±0.05 ±0.05 ±0.15 ±0.3 Minimum unit weight g 0.001 0.01 0.01 0.05 0.1 Dimensions of weighing plate mm 0 106 0 150 0 150 160X200 160X200 Widthxdepthxheight mm 180X310X85 Settling time s 3 Net weight kg 2.3 2.3 2.3 2.7 2.7 Counting scales Version Precision counting scales with automatic reference optimisation (refines the average piece weight value in stages). Target quantity and target weight can be programmed to give an acoustic signal. Cumulative quantity memory for totalling weighings of identical parts by total quantity and total weight. Selectable reference piece numbers or reference weight. Selectable mains or battery operation. Rechargeable battery capacity approx. 200 hours. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB Calibration programme CAL For accuracy adjustment (required external calibration weight available on request). Display selectable between pieces and weight. 47 9542- Counting system consisting of reference scales and quantity scales (platform scales) with a 1.5 m connection cable. Supplied with 47 9540- Mains adapter 230 V/50 Flz, battery and protective hood. 47 9542- Mains adapter 230 V/50 Flz and protective hood for reference scales. Optional extras 47 9542- Internal battery, signal lamp available on request. 479542 Maximum weighing range kg 3 6 15 30 150 300 47 9540 Counting scales, type CXB 47 9542 Counting system, type CCS Reading / reproducibility gm 0.2/0.2 0.5/0.5 1/1 2/2 0.1/0.1 0.1/0.1 Linearity g ±0.4 ± 1 ±2 ±4 ±0.2 Minimum unit weight g 0.1 0.2 0.5 1 0.1 Dimensions of weighing plate mm 300X225 294X225 Widthxdepthxheight mm 300X330X110 320X350X125 Platform scales widthxdepthxheight (479542) mm 500X400X137 650X 500X142 Settling time s 2 2 Net weight kg 4 18.3 24.8 947 Main catalogue
