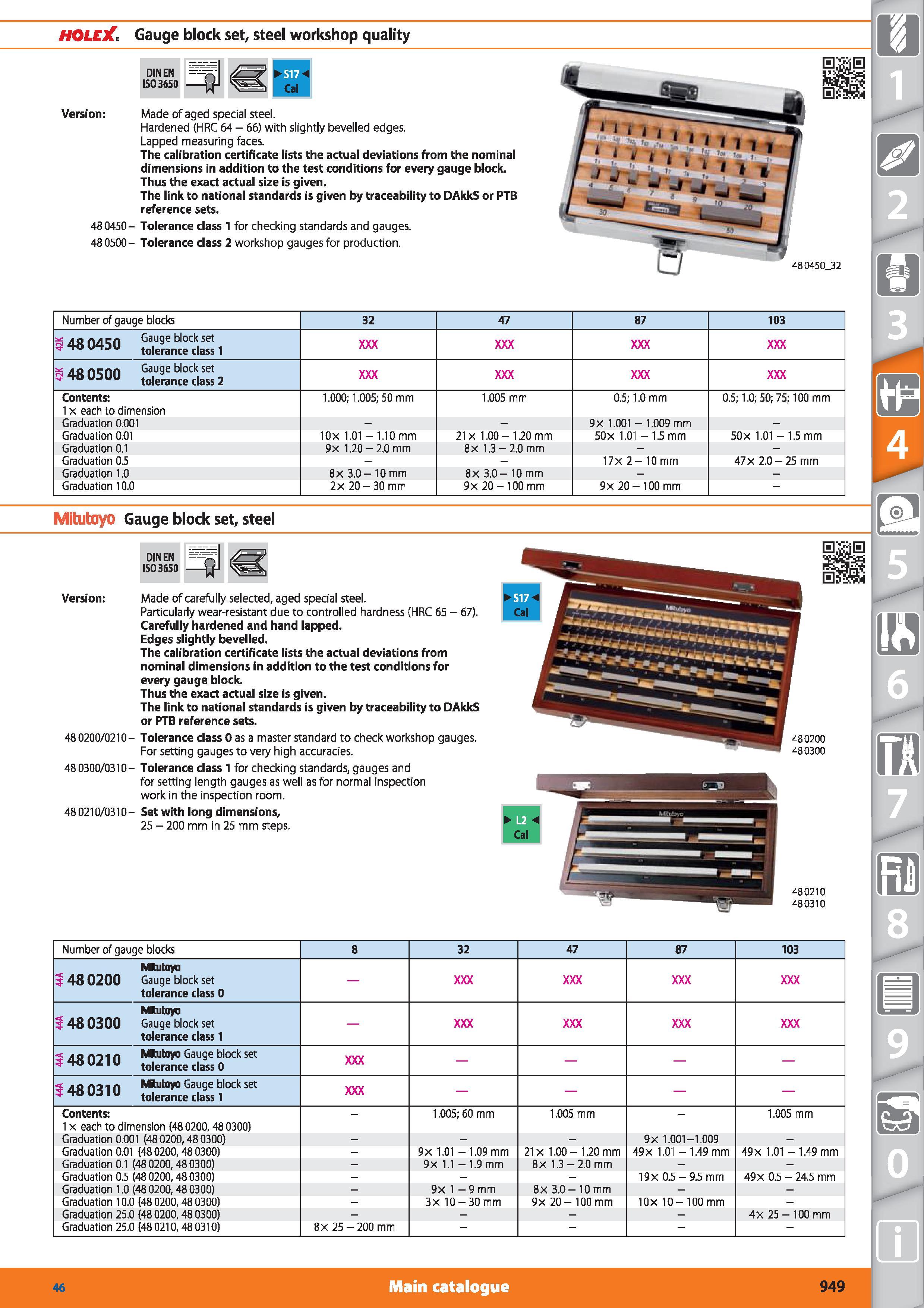

949 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.949

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 949 0949 ENG Lab2u

HOLEX Gauge block set, steel workshop quality Version Made of aged special steel. Hardened (HRC 64 - 66) with slightly bevelled edges. Lapped measuring faces. The calibration certificate lists the actual deviations from the nominal dimensions in addition to the test conditions for every gauge block. Thus the exact actual size is given. The link to national standards is given by traceability to DAkkS or PTB reference sets. 48 0450- Tolerance class 1 for checking standards and gauges. 48 0500- Tolerance class 2 workshop gauges for production. 48 0450_32 Number of gauge blocks 32 47 87 103 48 0450 Gauge block set gWlWdU tolerance class 1 3480500 ge block set , in vjvv tolerance class 2 Contents 1 x each to dimension 1.000; 1.005; 50 mm 1.005 mm 0.5; 1.0 mm 0.5; 1.0; 50; 75; 100 mm Graduation 0.001 9x 1.001 - 1.009 mm - Graduation 0.01 10x 1.01 - 1.10 mm 21 x 1.00-1.20 mm 50x 1.01 - 1.5 mm 50 x 1.01 -1.5 mm Graduation 0.1 9x 1.20 - 2.0 mm 8x 1.3 - 2.0 mm Graduation 0.5 17x 2 - 10 mm 47x 2.0 - 25 mm Graduation 1.0 8x 3.0- 10 mm 8x 3.0-10 mm Graduation 10.0 2x 20 - 30 mm 9x 20 - 100 mm 9x 20- 100 mm - Mitutoyo Gauge block set, steel DINEN ISO 3650 Version Made of carefully selected, aged special steel. Particularly wear-resistant due to controlled hardness (HRC 65 - 67). Carefully hardened and hand lapped. Edges slightly bevelled. The calibration certificate lists the actual deviations from nominal dimensions in addition to the test conditions for every gauge block. Thus the exact actual size is given. The link to national standards is given by traceability to DAkkS or PTB reference sets. 480200/0210- Tolerance class 0 as a master standard to check workshop gauges. For setting gauges to very high accuracies. 480300/0310- Tolerance class 1 for checking standards, gauges and for setting length gauges as well as for normal inspection work in the inspection room. 48 0210/0310- Set with long dimensions, 25 - 200 mm in 25 mm steps. 48 0200 480300 480210 48 0310 Number of gauge blocks 8 32 47 87 103 Mhihjya 5 48 0200 Gauge block set tolerance class 0 Mtutayo 48 0300 Gauge block set tolerance class 1 5 An mi n Mhitoyo Gauge block set 5 40 UZ 1U tolerance class 0 5 ao na i n Mhitoyo Gauge block set 3 40U3 IU tolerance class 1 Contents 1 x each to dimension (48 0200,48 0300) - 1.005; 60 mm 1.005 mm - 1.005 mm Graduation 0.001 (480200,480300) - 9x 1.001-1.009 - Graduation 0.01 (480200,480300) - 9x 1.01 - 1.09 mm 21 x 1.00- 1.20 mm 49x 1.01 - 1.49 mm 49x 1.01 - 1.49 mm Graduation 0.1 (480200,480300) - 9x 1.1 - 1.9 mm 8x 1.3 - 2.0 mm Graduation 0.5 (48 0200,48 0300) - 19x 0.5 - 9.5 mm 49X 0.5 - 24.5 mm Graduation 1.0 (48 0200,48 0300) - 9x 1 - 9 mm 8x 3.0- 10 mm Graduation 10.0 (48 0200,48 0300) - 3x 10-30 mm 9x 20 - 100 mm lOx 10- 100 mm - Graduation 25.0 (480200,480300) 4x 25 - 100 mm Graduation 25.0 (480210,480310) 8x 25 - 200 mm Main catalogue Hoffmann Group 46 949
