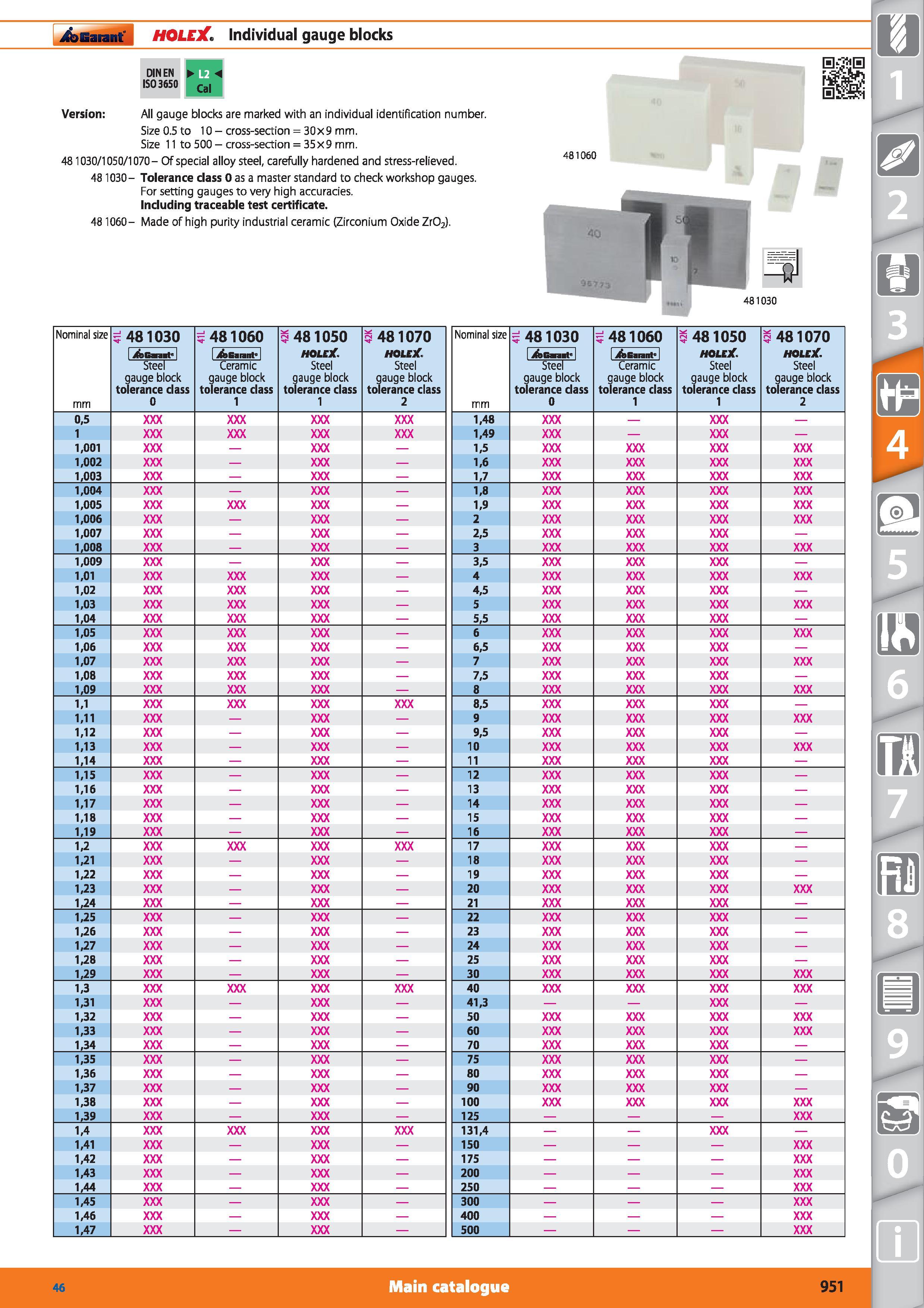

Garant HOLEX Individual gauge blocks DINEN ISO 3650 Cal Version All gauge blocks are marked with an individual identification number. Size 0.5 to 10 - cross-section 30x9 mm. Size 11 to 500 - cross-section 35x9 mm. 48 1030/1050/1070- Of special alloy steel, carefully hardened and stress-relieved. 48 1030- Tolerance class 0 as a master standard to check workshop gauges. For setting gauges to very high accuracies. Including traceable test certificate. 48 1060- Made of high purity industrial ceramic (Zirconium Oxide Zr02). 481030 Nominal size mm '481030 I J&Gnat" '481060 1 Garant I 5 481050 holeX. Steel gauge block tolerance class 1 3 481070 HOLE/. Steel gauge block tolerance class 2 Nominal size mm -481030 I J&Gnat" '481060 1 Garant I 7 481050 holeX. Steel gauge block tolerance class 1 7 481070 HOLEX Steel gauge block tolerance class 2 Steel gauge block tolerance class 0 Ceramic gauge block tolerance class 1 Steel gauge block tolerance class 0 Ceramic gauge block tolerance class 1 0,5 1,48 1 1,49 1,001 1,5 1,002 1,6 1,003 1,7 1,004 1,8 1,005 1,9 1,006 2 1,007 2,5 1,008 3 1,009 3,5 1,01 4 1,02 4,5 1,03 5 1,04 5,5 1,05 6 1,06 6,5 1,07 7 1,08 7,5 1,09 8 1,1 8,5 1,11 9 1,12 9,5 1,13 10 1,14 11 1,15 12 1,16 13 1,17 14 1,18 15 1,19 16 1,2 17 1,21 18 1,22 19 1,23 20 1,24 21 1,25 22 1,26 23 1,27 24 1,28 25 1,29 30 1,3 40 1,31 41,3 1,32 50 1,33 60 1,34 70 1,35 75 1,36 80 1,37 90 1,38 100 1,39 125 1,4 131,4 1,41 150 1,42 175 1,43 200 1,44 250 1,45 300 1,46 400 1,47 500 46 Main catalogue
