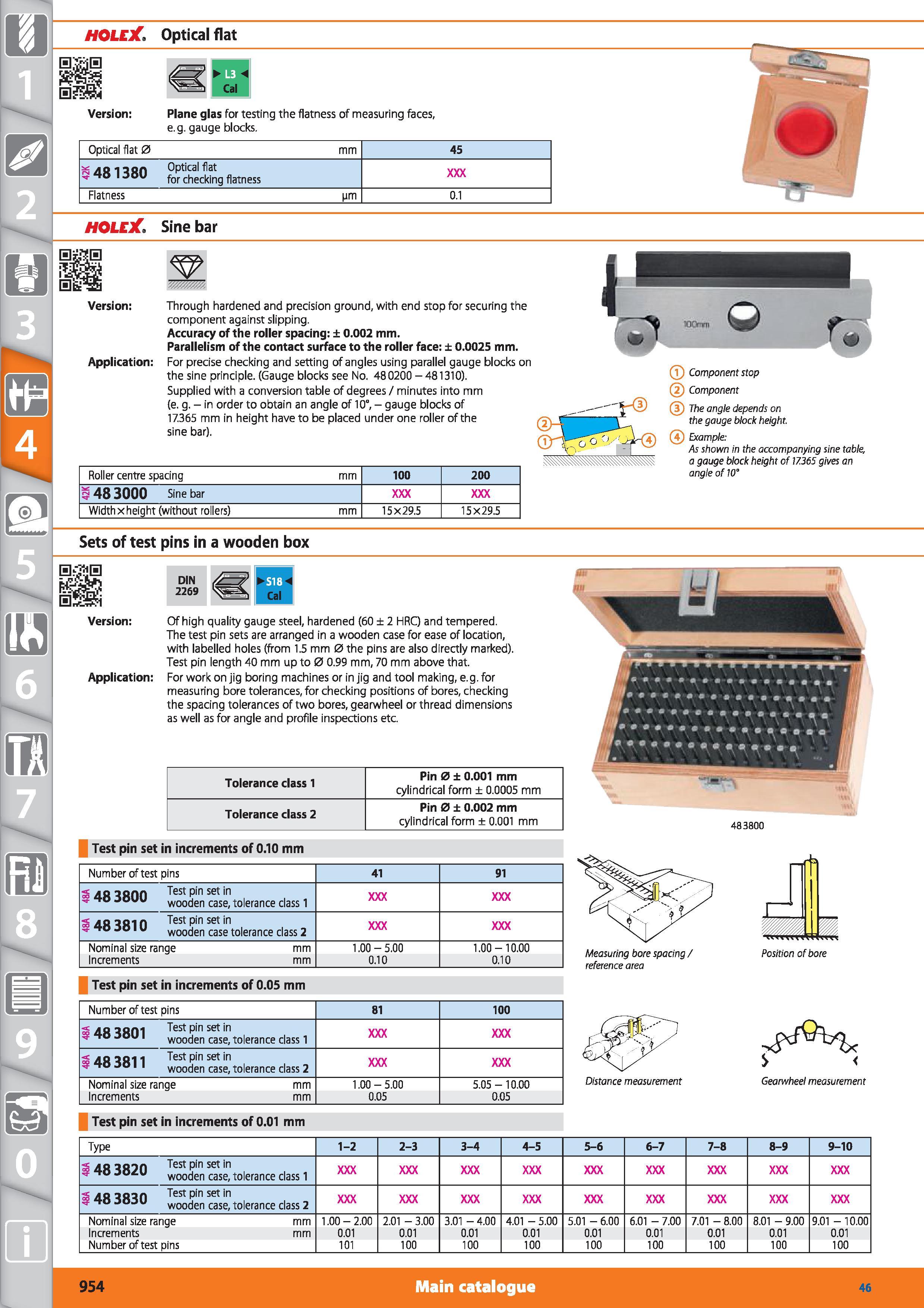

954 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.954

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 954 0954 ENG Lab2u

1 HOLEX Optical flat Q Cal Version Plane glas for testing the flatness of measuring faces, e.g. gauge blocks. Optical flat 0 mm 45 481380 Optical flat for checking flatness Flatness im 0.1 HOLEX Sine bar na Version Application Through hardened and precision ground, with end stop for securing the component against slipping. Accuracy of the roller spacing ± 0.002 mm. Parallelism of the contact surface to the roller face ± 0.0025 mm. For precise checking and setting of angles using parallel gauge blocks on the sine principle. (Gauge blocks see No. 480200 - 481310). Supplied with a conversion table of degrees / minutes into mm (e. g. - in order to obtain an angle of 10°, - gauge blocks of 17.365 mm in height have to be placed under one roller of the sine bar). Roller centre spacing mm 100 200 9 48 3000 Sine bar Width x height (without rollers) mm 15x29.5 15x29.5 Component stop (2) Component The angle depends on the gauge block height. (4) Example As shown in the accompanying sine table, a gauge block height of 17.365 gives an angle of 10° Sets of test pins in a wooden box (Ul to DIN 2269 Version Application Of high quality gauge steel, hardened (60 ± 2 HRC) and tempered. The test pin sets are arranged in a wooden case for ease of location, with labelled holes (from 1.5 mm 0 the pins are also directly marked). Test pin length 40 mm up to 0 0.99 mm, 70 mm above that. For work on jig boring machines or in jig and tool making, e.g. for measuring bore tolerances, for checking positions of bores, checking the spacing tolerances of two bores, gearwheel or thread dimensions as well as for angle and profile inspections etc. Tolerance class 1 Pin 0 ± 0.001 mm cylindrical form ± 0.0005 mm Tolerance class 2 Pin 0 ± 0.002 mm cylindrical form ± 0.001 mm 483800 Test pin set in increments of 0.10 mm Number of test pins 41 91 48 3800 Test pin set in , h jouu wooden case, tolerance class 1 o AO 3810 Test pin set in wooden case tolerance class 2 Nominal size range mm 1.00-5.00 1.00-10.00 Increments mm 0.10 0.10 Measuring bore spacing / reference area Test pin set in increments of 0.05 mm Number of test pins 81 100 v Aft 3ftm Test pin set in ” wooden case, tolerance class 1 a 48 3811 Test pin set in ” 30 wooden case, tolerance class 2 Nominal size range mm 1.00-5.00 5.05-10.00 Increments mm 0.05 0.05 Test pin set in increments of 0.01 mm Distance measurement Position of bore Gearwheel measurement Type 1-2 2-3 3-4 4-5 5-6 6-7 7-8 8-9 9-10 1483820 Test pin set in wooden case, tolerance class 1 1483830 Test pin set in wooden case, tolerance class 2 Nominal size range mm 1.00-2.00 2.01 - 3.00 3.01 - 4.00 4.01 - 5.00 5.01 - 6.00 6.01 - 7.00 7.01 - 8.00 8.01 - 9.00 9.01 -10.00 Increments mm 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 Number of test pins 101 100 100 100 100 100 100 100 100 954 Main catalogue Hoffmann Group 46
