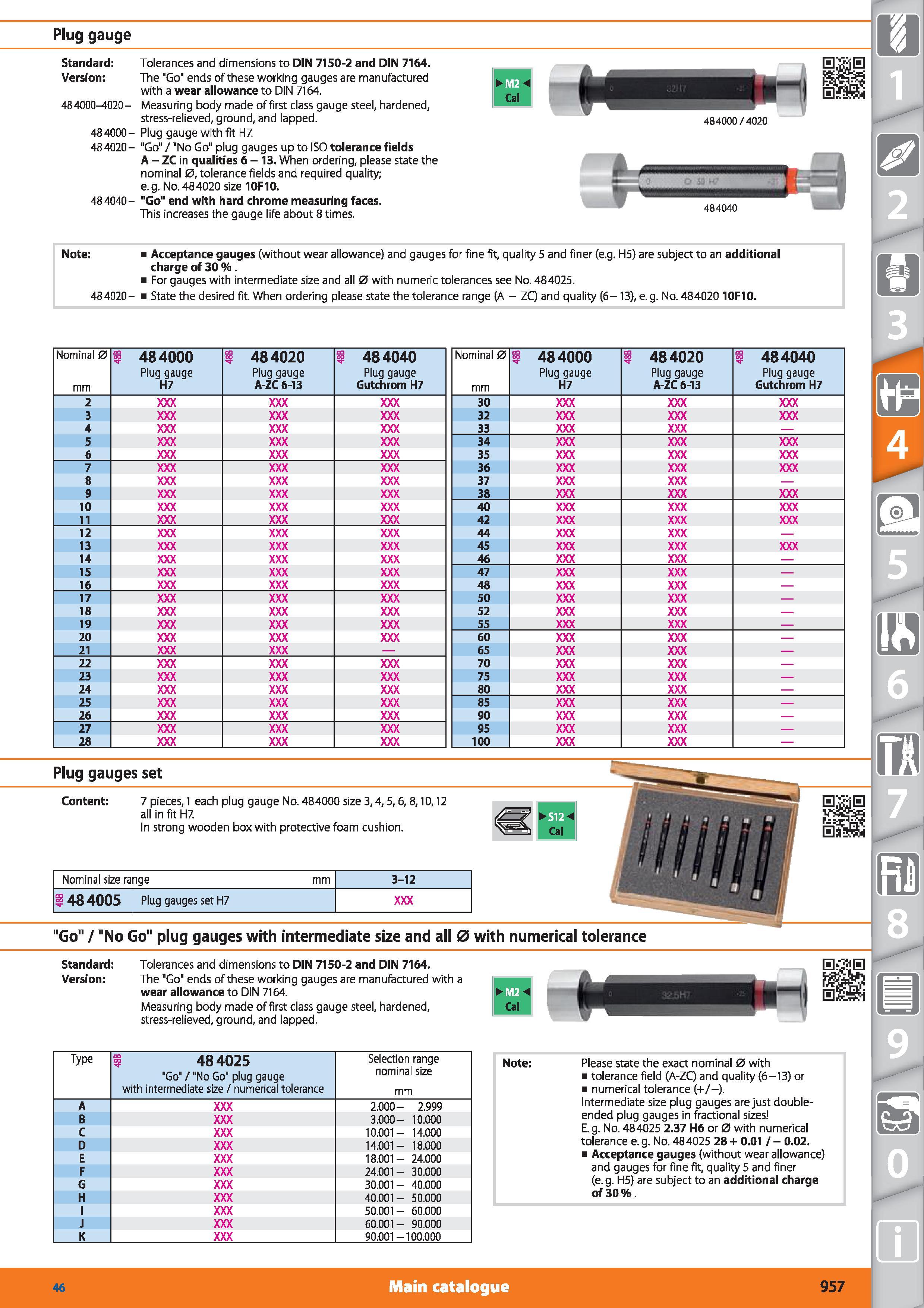

Plug gauge Standard Tolerances and dimensions to DIN 7150-2 and DIN 7164. Version The "Go" ends of these working gauges are manufactured with a wear allowance to DIN 7164. 484000-4020- Measuring body made of first class gauge steel, hardened, stress-relieved, ground, and lapped. 484000- Plug gauge with fit H7. 48 4020 - "Go" / "No Go" plug gauges up to ISO tolerance fields A - ZC in qualities 6 - 13. When ordering, please state the nominal 0, tolerance fields and required quality; e.g. No.484020 size 10F 10. 484040- "Go" end with hard chrome measuring faces. This increases the gauge life about 8 times. Cal 484000 / 4020 Note Acceptance gauges (without wear allowance) and gauges for fine fit, quality 5 and finer (e.g. H5) are subject to an additional charge of 30 %. For gauges with intermediate size and all 0 with numeric tolerances see No. 484025. 484020- State the desired fit. When ordering please state the tolerance range (A - ZC) and quality (6-13), e.g. No. 484020 10F10. Nominal 0 mm i 484000 Plug gauge H7 i 484020 Plug gauge A-ZC 6-13 i 484040 Plug gauge Gutchrom H7 Nominal 0 mm I 484000 Plug gauge H7 i 484020 Plug gauge A-ZC 6-13 1 484040 Plug gauge Gutchrom H7 2 30 3 32 4 33 5 34 6 35 7 36 8 37 9 38 10 40 11 42 12 44 13 45 14 46 15 47 16 48 17 50 18 52 19 55 20 60 21 65 22 70 23 75 24 80 25 85 26 90 27 95 28 100 Plug gauges set Content 7 pieces, 1 each plug gauge No. 484000 size 3,4,5,6,8,10,12 all in fit H7. In strong wooden box with protective foam cushion. Nominal size range mm 3-12 > 48 4005 Plug gauges set H7 "Go" / "No Go" plug gauges with intermediate size and all 0 with numerical Standard Tolerances and dimensions to DIN 7150-2 and DIN 7164. Version The "Go" ends of these working gauges are manufactured with a wear allowance to DIN 7164. Measuring body made of first class gauge steel, hardened, stress-relieved, ground, and lapped. Type i 484025 "Go" / "No Go" plug gauge with intermediate size / numerical tolerance Selection range nominal size mm A 2.000- 2.999 B 3.000- 10.000 c 10.001- 14.000 D 14.001- 18.000 E 18.001- 24.000 F 24.001- 30.000 G 30.001- 40.000 H 40.001- 50.000 I 50.001- 60.000 J 60.001- 90.000 K 90.001-100.000 Note Please state the exact nominal 0 with tolerance field (A-ZC) and quality (6-13) or numerical tolerance (+/-). Intermediate size plug gauges are just double- ended plug gauges in fractional sizes E.g. No. 484025 2.37 H6 or 0 with numerical tolerance e. g. No. 484025 28 + 0.01 / - 0.02. Acceptance gauges (without wear allowance) and gauges for fine fit, quality 5 and finer (e.g. H5) are subject to an additional charge of 30%. Main catalogue Hoffmann Group 46 957
