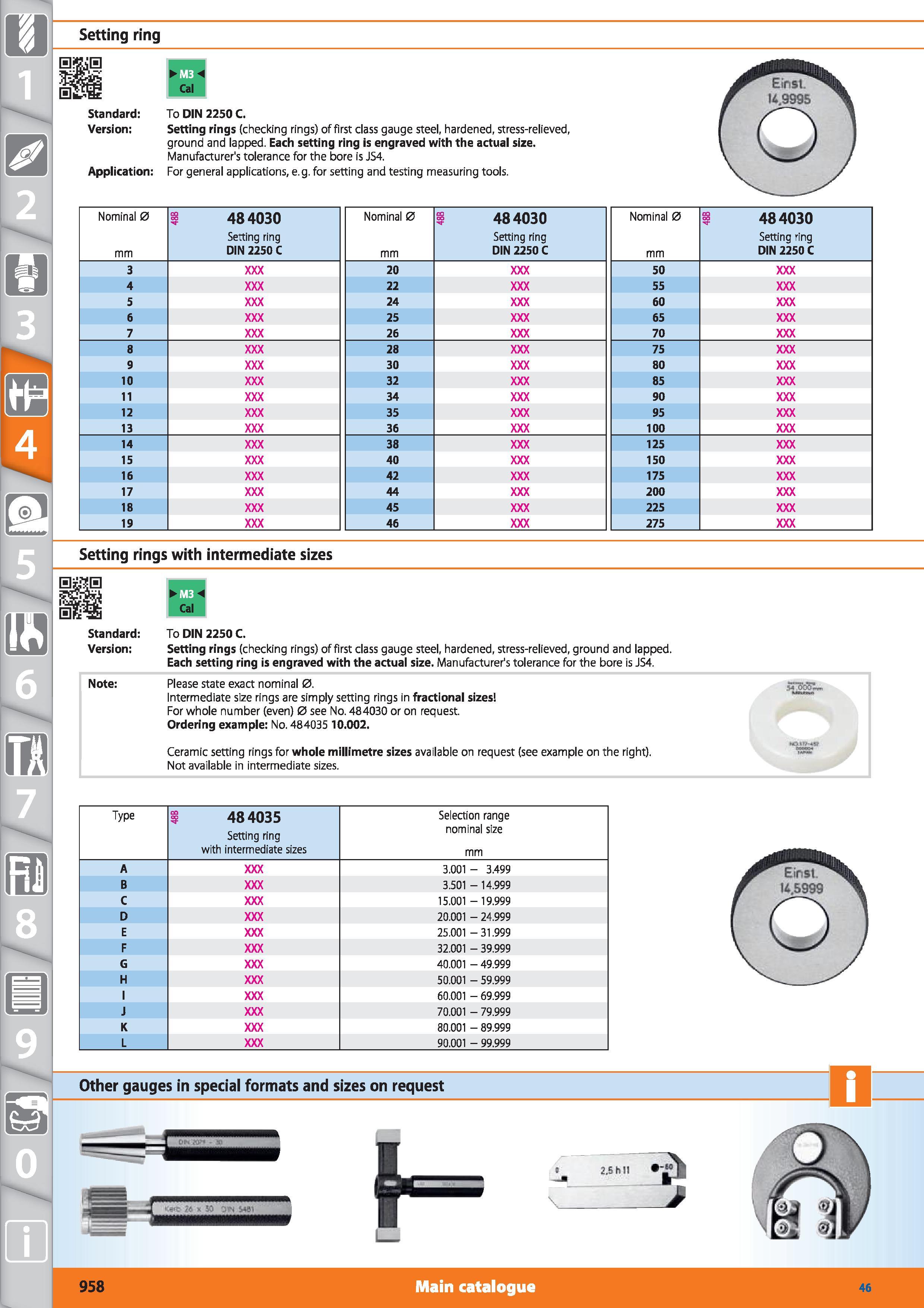

Setting ring Standard Version Application Cal To DIN 2250 C. Setting rings (checking rings) of first class gauge steel, hardened, stress-relieved, ground and lapped. Each setting ring is engraved with the actual size. Manufacturer's tolerance for the bore is JS4. For general applications, e.g. for setting and testing measuring tools. Nominal 0 mm 1 484030 Setting ring DIN 2250 C Nominal 0 mm i 484030 Setting ring DIN 2250 C Nominal 0 mm 1 484030 Setting ring DIN 2250 C 3 20 50 4 22 55 5 24 60 6 25 65 7 26 70 8 28 75 9 30 80 10 32 85 11 34 90 12 35 95 13 36 100 14 38 125 15 40 150 16 42 175 17 44 200 18 45 225 19 46 275 Setting rings with intermediate sizes Standard Version Cal To DIN 2250 C. Setting rings (checking rings) of first class gauge steel, hardened, stress-relieved, ground and lapped. Each setting ring is engraved with the actual size. Manufacturer's tolerance for the bore is JS4. Note Please state exact nominal 0. Intermediate size rings are simply setting rings in fractional sizes MMm For whole number (even) 0 see No. 484030 or on request. Ordering example No. 484035 10.002. Ceramic setting rings for whole millimetre sizes available on request (see example on the right). Not available in intermediate sizes. Type i 484035 Setting ring with intermediate sizes Selection range nominal size mm A 3.001 - 3.499 B 3.501 -14.999 C 15.001 -19.999 D 20.001 - 24.999 E 25.001 -31.999 F 32.001 - 39.999 G 40.001 - 49.999 H 50.001 - 59.999 1 60.001 - 69.999 J 70.001 - 79.999 K 80.001 - 89.999 L 90.001 - 99.999 Other gauges in special formats
