960 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.960

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 960 0960 ENG Lab2u

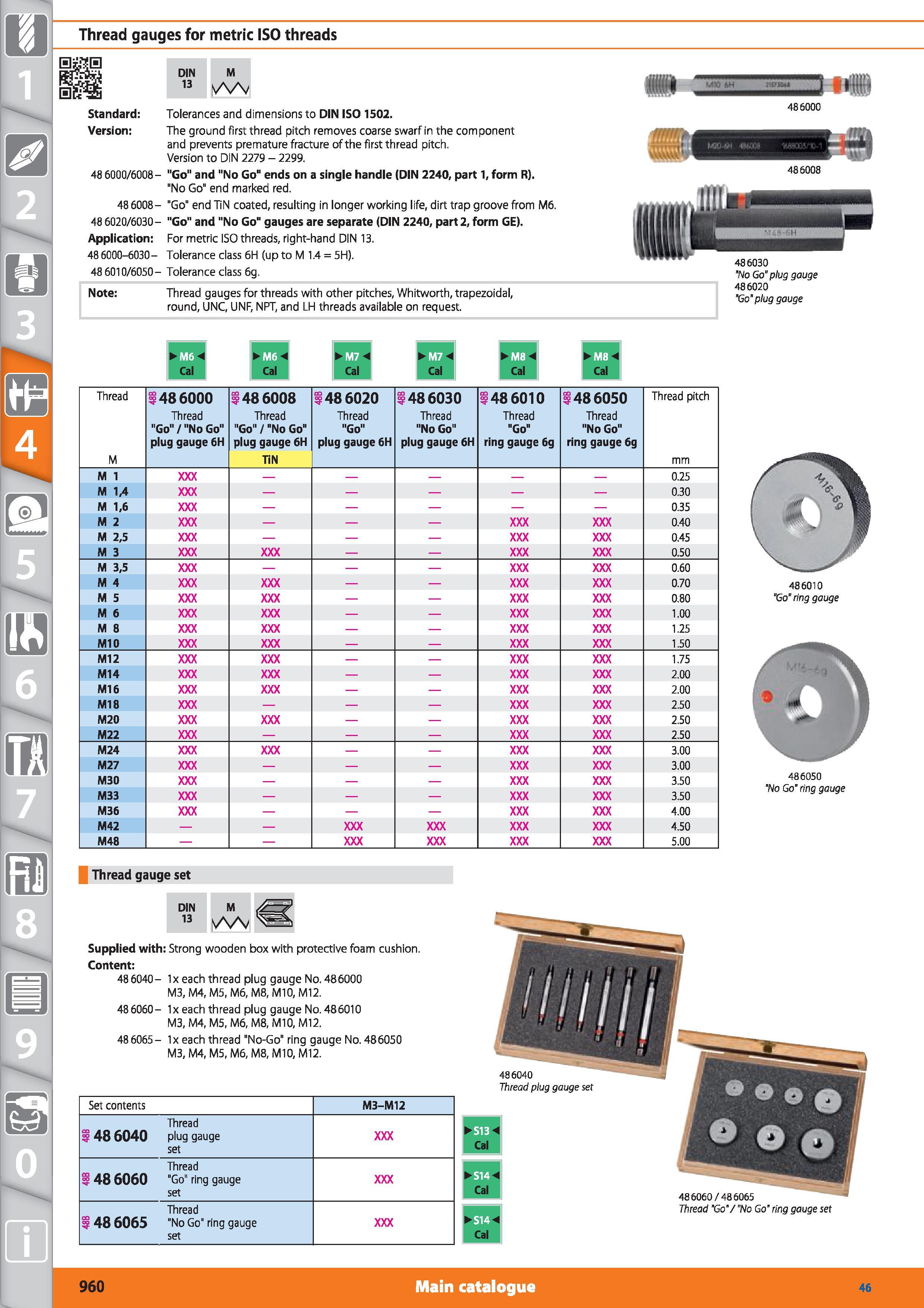

Thread gauges for metric ISO threads Standard Version 48 6000/6008- 48 6008-48 6020/6030-Application 486000-6030- 486010/6050- DIN M 13 Tolerances and dimensions to DIN ISO 1502. The ground first thread pitch removes coarse swarf in the component and prevents premature fracture of the first thread pitch. Version to DIN 2279 - 2299. "Go" and "No Go" ends on a single handle (DIN 2240, part 1, form R). "No Go" end marked red. "Go" end TiN coated, resulting in longer working life, dirt trap groove from M6. "Go" and "No Go" gauges are separate (DIN 2240, part 2, form GE). For metric ISO threads, right-hand DIN 13. Tolerance class 6H (up to M 1.4 5H). Tolerance class 6g. 486000 Note Thread gauges for threads with other pitches, Whitworth, trapezoidal, round, UNC, UNF, NPT, and LH threads available on request. 486030 'No Go“ plug gauge 486020 "Go"plug gauge Cal Thread M 1486000 Thread "Go"/"No Go" plug gauge 6H i> 48 6008 Thread "Go" / "No Go" plug gauge 6H TiN 1486020 Thread "Go" plug gauge 6H i 48 6030 Thread "No Go" plug gauge 6H 1486010 Thread "Go" ring gauge 6g 1486050 Thread "No Go" ring gauge 6g Thread pitch mm M 1 0.25 M 1A 0.30 M 1,6 0.35 M 2 0.40 M 2,5 0.45 M 3 0.50 M 3,5 0.60 M 4 0.70 M 5 0.80 M 6 1.00 M 8 1.25 M10 1.50 M12 1.75 M14 2.00 M16 2.00 M18 2.50 M20 2.50 M22 2.50 M24 3.00 M27 3.00 M30 3.50 M33 3.50 M36 4.00 M42 4.50 M48 5.00 486010 "Go" ring gauge 486050 'No Go" ring gauge Thread gauge set DIN M 13 naa Supplied with Strong wooden box with protective foam cushion. Content 48 6040- lx each thread plug gauge No. 486000 M3, M4, M5, M6, M8, M10, M12. 48 6060- lx each thread plug gauge No. 486010 M3, M4, M5, M6, M8, M10, M12. 48 6065- lx each thread "No-Go" ring gauge No. 486050 M3, M4, M5, M6, M8, M10, M12. Set contents M3-M12 Thread f 48 6040 plug gauge set Thread 48 6060 "Go" ring gauge set Thread i 48 6065 "No Go" ring gauge set 960 Main catalogue Hoffmann Group 46 486040 Thread plug gauge set 486060 / 486065 Thread "Go"/ "No Go' ring gauge set
