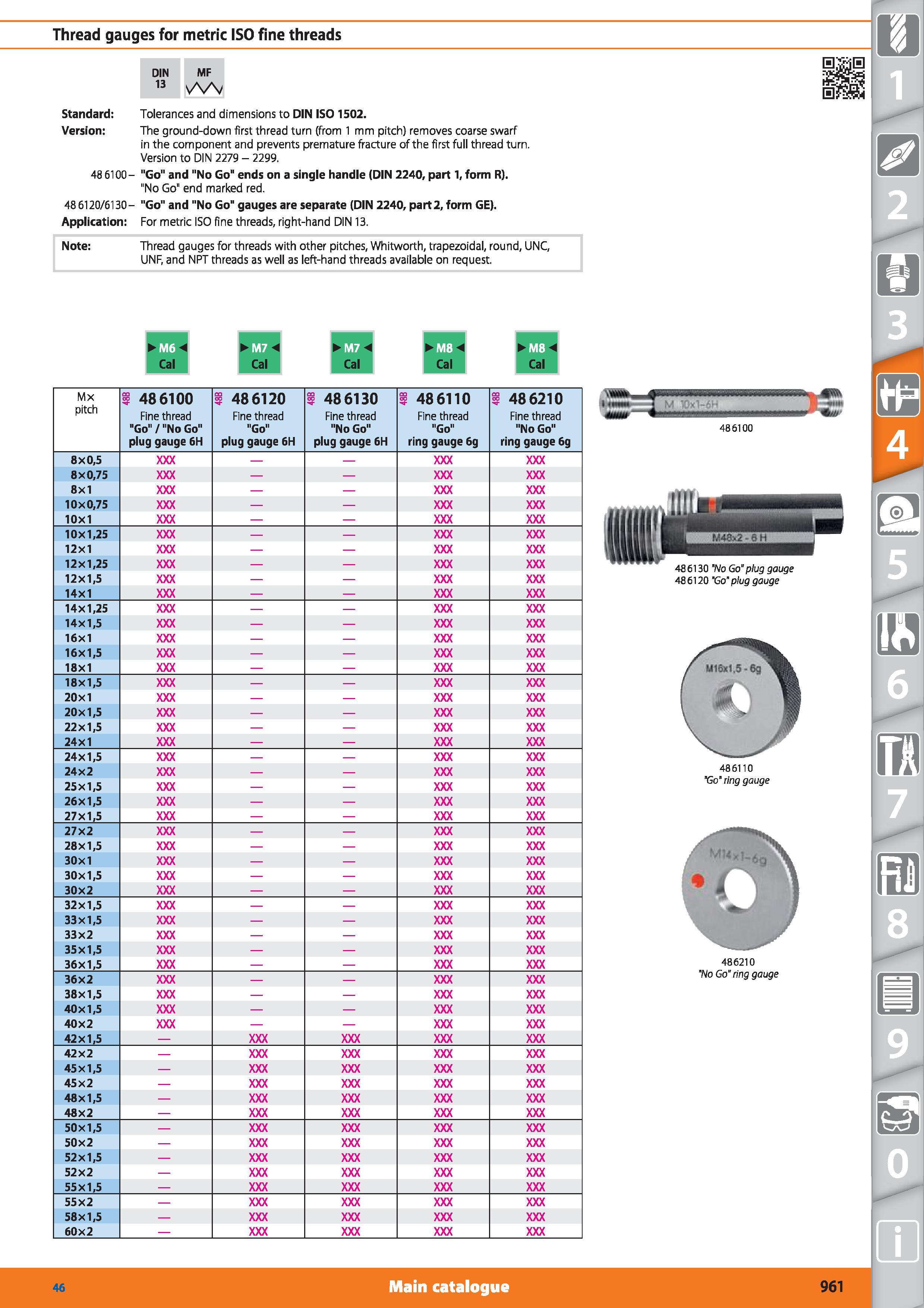

Thread gauges for metric ISO fine threads Standard Version 48 6100- 486120/6130- Application DIN MF 13 Tolerances and dimensions to DIN ISO 1502. The ground-down first thread turn (from 1 mm pitch) removes coarse swarf in the component and prevents premature fracture of the first full thread turn. Version to DIN 2279 - 2299. "Go" and "No Go" ends on a single handle (DIN 2240, part 1, form R). "No Go" end marked red. "Go" and "No Go" gauges are separate (DIN 2240, part 2, form GE). For metric ISO fine threads, right-hand DIN 13. Note Thread gauges for threads with other pitches, Whitworth, trapezoidal, round, UNC, UNF, and NPT threads as well as left-hand threads available on request. s M7 Cal A Cal Mx pitch 1 486100 Fine thread "Go"/"No Go" plug gauge 6H 1 486120 Fine thread "Go" plug gauge 6H 1 486130 Fine thread "No Go" plug gauge 6H 1 486110 Fine thread "Go" ring gauge 6g 486210 Fine thread "No Go" ring gauge 6g 8X0,5 8x0,75 8x1 10x0,75 10X1 10X1,25 12x1 12x1,25 12X1,5 14X1 14X1,25 14x1,5 16x1 16X1,5 18X1 18x1,5 20x1 20x1,5 22x1,5 24X1 24X1,5 24x2 25x1,5 26X1,5 27X1,5 27X2 28x1,5 30x1 30x1,5 30X2 32x1,5 33x1,5 33x2 35X1,5 36X1,5 36X2 38x1,5 40x1,5 40X2 42X1,5 42x2 45x1,5 45x2 48x1,5 48X2 50x1,5 50x2 52x1,5 52X2 55X1,5 55X2 58x1,5 60x2 VMM 4<'r,,,-a-i wsiireamawwHB W\ 486100 486110 "Go’ ring gauge 486210 "JNo Go" ring gauge Main catalogue Hoffmann Group 46 961 486130 'No Go" plug gauge 48 6120 "Go" plug gauge
