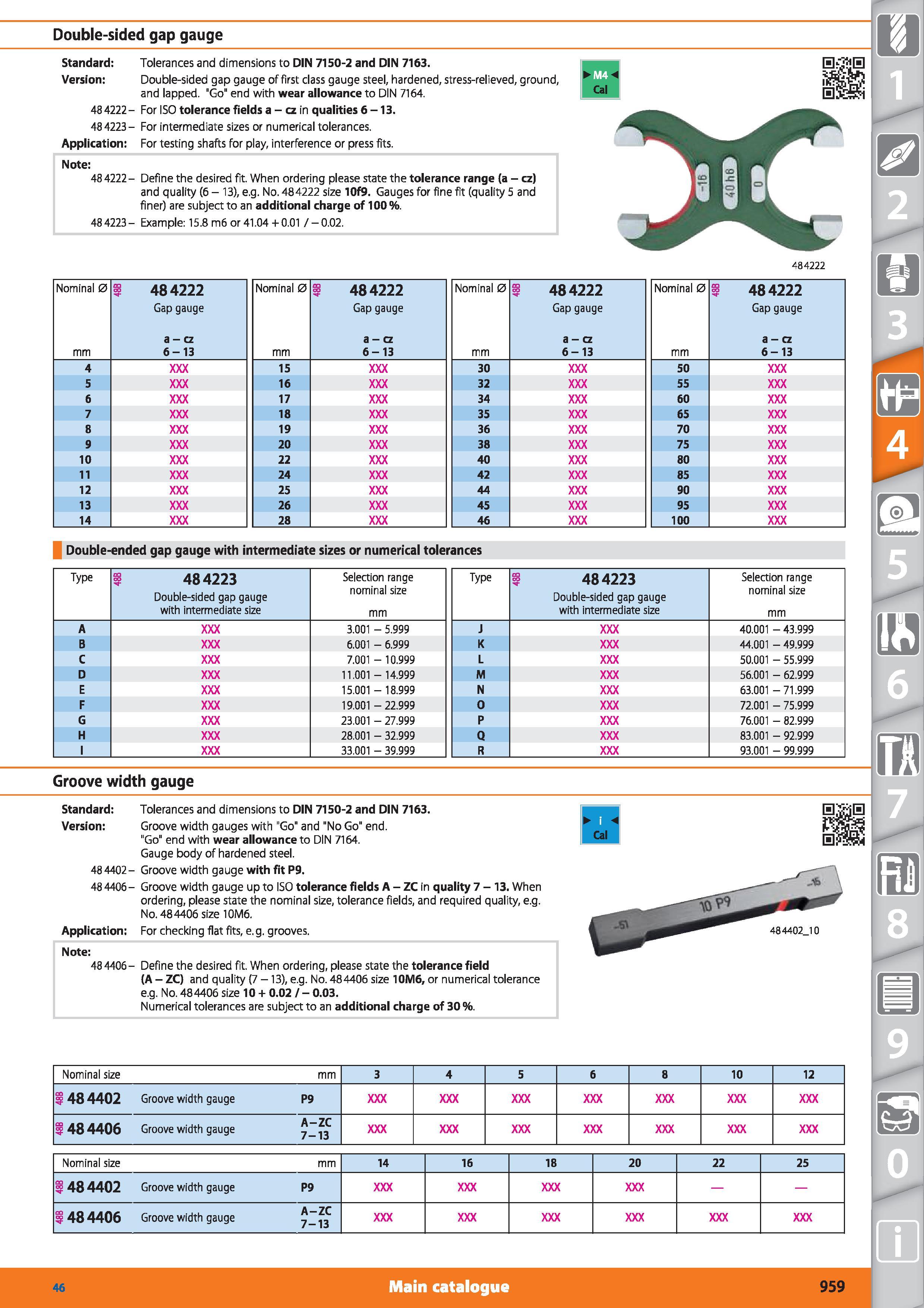

Double-sided gap gauge Standard Tolerances and dimensions to DIN 7150-2 and DIN 7163. Version Double-sided gap gauge of first class gauge steel, hardened, stress-relieved, ground, and lapped. "Go" end with wear allowance to DIN 7164. 484222- For ISO tolerance fields a - cz in qualities 6 -13. 484223- For intermediate sizes or numerical tolerances. Application For testing shafts for play, interference or press fits. Note 484222- Define the desired fit. When ordering please state the tolerance range (a - cz) and quality (6 - 13), e.g. No. 484222 size 10f9. Gauges for fine fit (quality 5 and finer) are subject to an additional charge of 100%. 48 4223 - Example 15.8 m6 or 41.04 + 0.01 / - 0.02. 484222 Nominal 0 mm 484222 Gap gauge a - cz 6-13 Nominal 0 mm 484222 Gap gauge a - cz 6-13 Nominal 0 mm i 484222 Gap gauge a - a 6-13 Nominal 0 mm i 484222 Gap gauge a - cz 6-13 4 15 30 50 5 16 32 55 6 17 34 60 7 18 35 65 8 19 36 70 9 20 38 75 10 22 40 80 11 24 42 85 12 25 44 90 13 26 45 95 14 28 46 100 Double-ended gap gauge with intermediate sizes or numerical tolerances Type 484223 Double-sided gap gauge with intermediate size Selection range nominal size mm Type 484223 Double-sided gap gauge with intermediate size Selection range nominal size mm A 3.001 - 5.999 J 40.001 - 43.999 B 6.001 - 6.999 K 44.001 - 49.999 C 7.001 - 10.999 L 50.001 - 55.999 D 11.001 - 14.999 M 56.001 - 62.999 E 15.001 - 18.999 N 63.001 -71.999 F 19.001 - 22.999 0 72.001 - 75.999 G 23.001 - 27.999 P 76.001 - 82.999 H 28.001 - 32.999 Q 83.001 - 92.999 I 33.001 - 39.999 R 93.001 - 99.999 Groove width gauge Standard Tolerances and dimensions to DIN 7150-2 and DIN 7163. Version Groove width gauges with "Go" and "No Go" end. "Go" end with wear allowance to DIN 7164. Gauge body of hardened steel. 484402- Groove width gauge with fit P9. 484406- Groove width gauge up to ISO tolerance fields A - ZC in quality 7 - 13. When ordering, please state the nominal size, tolerance fields, and required quality, e.g. No. 484406 size 10M6. Application For checking flat fits, e. g. grooves. Note 48 4406 - Define the desired fit. When ordering, please state the tolerance field (A - ZC) and quality (7 -13), e.g. No. 484406 size 10M6, or numerical tolerance e.g. No. 484406 size 10 + 0.02 / - 0.03. Numerical tolerances are subject to an additional charge of 30%. Nominal size mm 3 4 5 6 8 10 12 1484402 Groove width gauge P9 s 48 4406 Groove width gauge A-ZC 7-13 Nominal size mm 14 16 18 20 22 25 1484402 Groove width gauge P9 1484406 Groove width gauge A-ZC 7-13 Main catalogue Hoffmann Group 46 959
