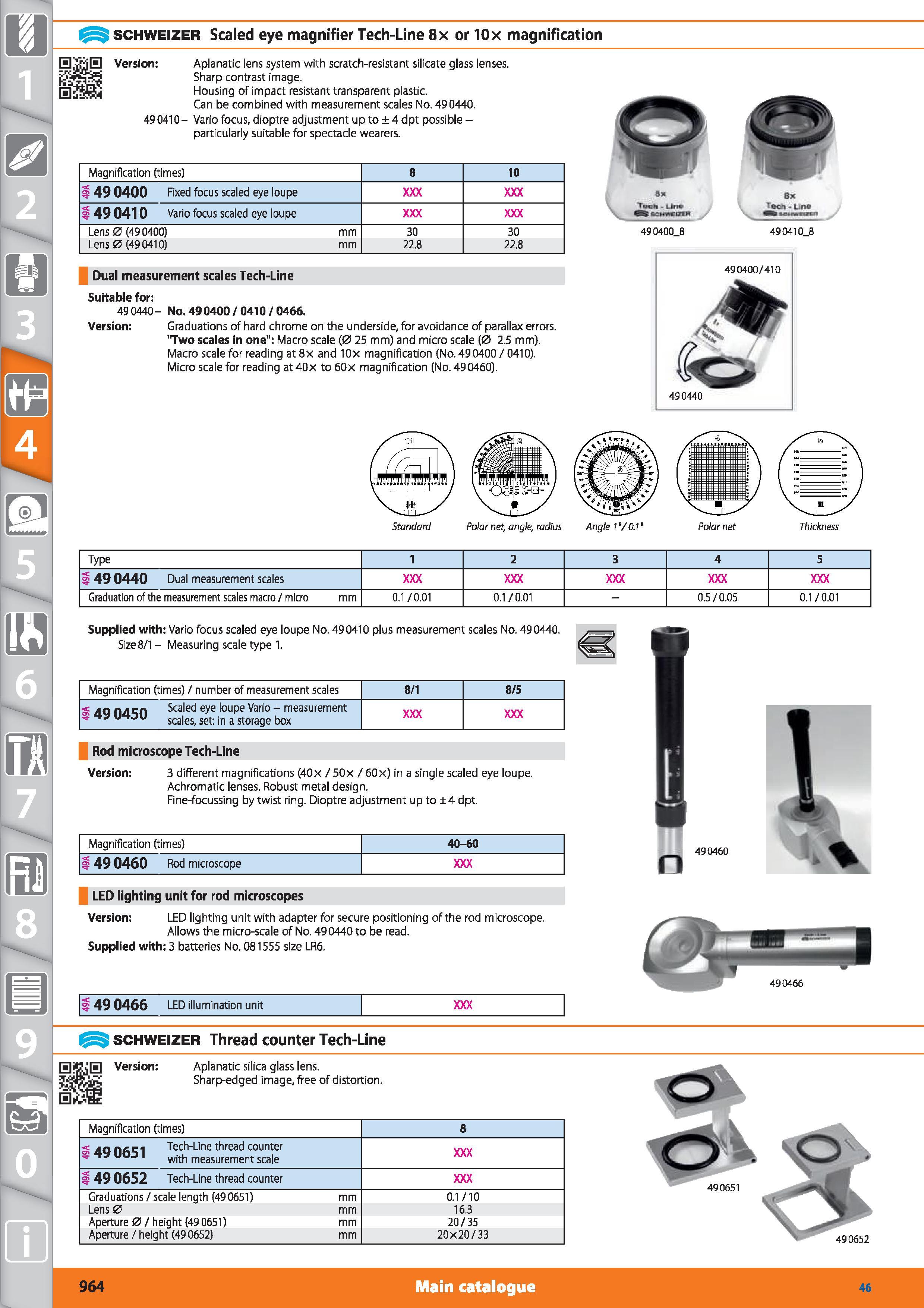

SCHWEIZER Scaled eye magnifier Tech-Line 8x or 10x magnification El Version Aplanatic lens system with scratch-resistant silicate glass lenses. Sharp contrast image. Housing of impact resistant transparent plastic. Can be combined with measurement scales No. 490440. 490410- Vario focus, dioptre adjustment up to ± 4 dpt possible -particularly suitable for spectacle wearers. Magnification (times) 8 10 fi 49 0400 Fixed focus scaled eye loupe 3 49 0410 Vario focus scaled eye loupe Lens 0 (490400) mm 30 30 Lens 0 (490410) mm 22.8 22.8 Dual measurement scales Tech-Line Suitable for 490440- No.490400/0410/0466. Version Graduations of hard chrome on the underside, for avoidance of parallax errors. 'Two scales in one" Macro scale (0 25 mm) and micro scale (0 2.5 mm). Macro scale for reading at 8x and 10X magnification (No. 490400 / 0410). Micro scale for reading at 40x to 60x magnification (No. 490460). 490400/410 490440 Type 1 2 3 4 5 3 49 0440 Dual measurement scales Graduation of the measurement scales macro / micro mm 0.1/0.01 0.1/0.01 - 0.5/0.05 0.1/0.01 Supplied with Vario focus scaled eye loupe No. 490410 plus measurement scales No. 490440. Size 8/1 - Measuring scale type 1. Magnification (times) / number of measurement scales 8/1 8/5 < .n (Men Scaled eye loupe Vario + measurement scales, set in a storage box Rod microscope Tech-Line Version 3 different magnifications (40x / 50x / 60x) in a single scaled eye loupe. Achromatic lenses. Robust metal design. Fine-focussing by twist ring. Dioptre adjustment up to ±4 dpt. Magnification (times) 40-60 3 49 0460 Rod microscope LED lighting unit for rod microscopes Version LED lighting unit with adapter for secure positioning of the rod microscope. Allows the micro-scale of No. 490440 to be read. Supplied with 3 batteries No. 081555 size LR6. n 490460 490466 LED illumination unit SCHWEIZER Thread counter Tech-Line Aplanatic silica glass lens. Sharp-edged image, free of distortion. Magnification (times) 8 S 4Q 0651 Tech-Line thread counter , Y3 UOD with measurement scale 3 49 0652 Tech-Line thread counter Graduations / scale length (490651) mm 0.1/10 Lens 0 mm 16.3 Aperture 0 / height (490651) mm 20/35 Aperture / height (490652) mm 20x20/33 I 49 0400_8 490410_8 490651 490652 Main catalogue
