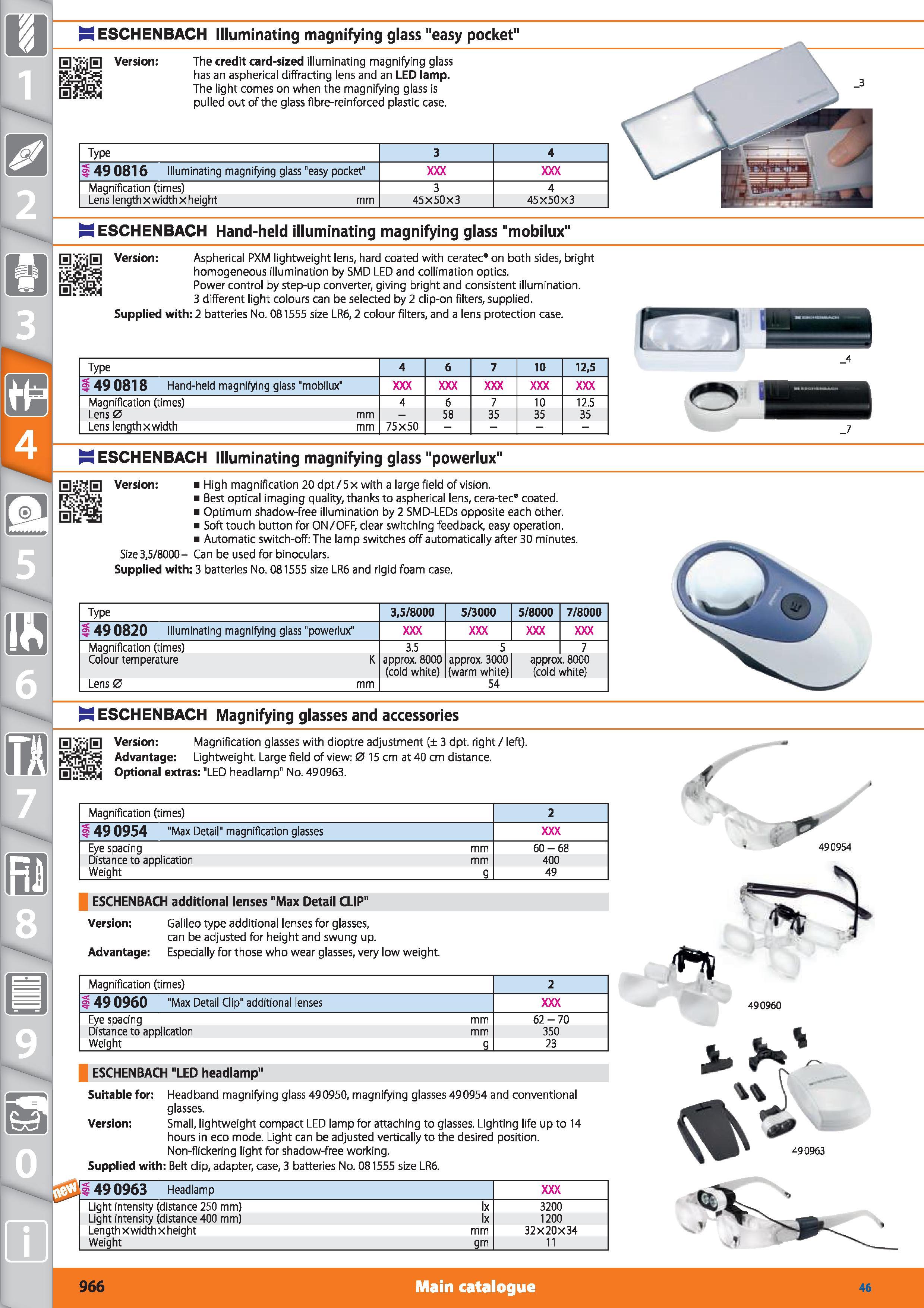

1 tt ESCHENBACH Illuminating magnifying glass "easy pocket" Version The credit card-sized illuminating magnifying glass has an aspherical diffracting lens and an LED lamp. The light comes on when the magnifying glass is pulled out of the glass fibre-reinforced plastic case. Type 3 4 M 49 0816 Illuminating magnifying glass "easy pocket" Maqnification (times) 3 4 Lens lengthxwidthxheight mm 45X50X3 45 X50 X3 wi ESCHENBACH Hand-held illuminating magnifying glass "mobilux" 0 Version Aspherical PXM lightweight lens, hard coated with ceratec on both sides, bright homogeneous illumination by SMD LED and collimation optics. Power control by step-up converter, giving bright and consistent illumination. 3 different light colours can be selected by 2 clip-on filters, supplied. Supplied with 2 batteries No. 081555 size LR6,2 colour filters, and a lens protection case. Da Type 4 6 7 10 12,5 49 0818 Hand-held magnifying glass "mobilux" Maqnification (times) 4 6 7 10 12.5 Lens 0 mm - 58 35 35 35 Lens lengthxwidth mm 75X50 SS ESCHENBACH Illuminating magnifying glass "powerlux" High magnification 20 dpt/5x with a large field of vision. Best optical imaging quality, thanks to aspherical lens, cera-tec” coated. Optimum shadow-free illumination by 2 SMD-LEDs opposite each other. Soft touch button for ON/OFF, clear switching feedback, easy operation. Automatic switch-off The lamp switches off automatically after 30 minutes. Can be used for binoculars. Size 3,5/8000- Supplied with 3 batteries No. 081555 size LR6 and rigid foam case. m Type 3,5/8000 5/3000 5/8000 7/8000 49 0820 Illuminating magnifying glass "powerlux" Magnification (times) 3.5 5 7 Colour temperature K approx. 8000 (cold white) approx. 3000 (warm white) approx. 8000 (cold white) Lens 0 mm 54 wi ESCHENBACH Magnifying glasses and accessories Version Magnification glasses with dioptre adjustment (± 3 dpt. right / left). Advantage Lightweight. Large field of view 0 15 cm at 40 cm distance. Optional extras "LED headlamp" No. 490963. Magnification (times) 2 5 49 0954 "Max Detail" magnification glasses Eye spacing mm 60-68 Distance to application mm 400 Weight g 49 ESCHENBACH additional lenses "Max Detail CLIP" Version Advantage Galileo type additional lenses for glasses, can be adjusted for height and swung up. Especially for those who wear glasses, very low weight. ESCHENBACH "LED headlamp" Suitable for Headband magnifying glass 490950, magnifying glasses 490954 and conventional glasses. Version Small, lightweight compact LED lamp for attaching to glasses. Lighting life up to 14 hours in eco mode. Light can be adjusted vertically to the desired position. Non-flickering light for shadow-free working. Supplied with Belt clip, adapter, case, 3 batteries No. 081555 size LR6. Magnification (times) 2 3 49 0960 "Max Detail Clip" additional lenses Eye spacing mm 62-70 Distance to application mm 350 Weight g 23 3 49 0963 Headlamp Light intensity (distance 250 mm) Ix 3200 Light intensity (distance 400 mm) Ix 1200 Length x widthx height mm 32X20X34 Weight gm 11 U 490954 490960 A. '. 966 Main catalogue Hoffmann Group 46
