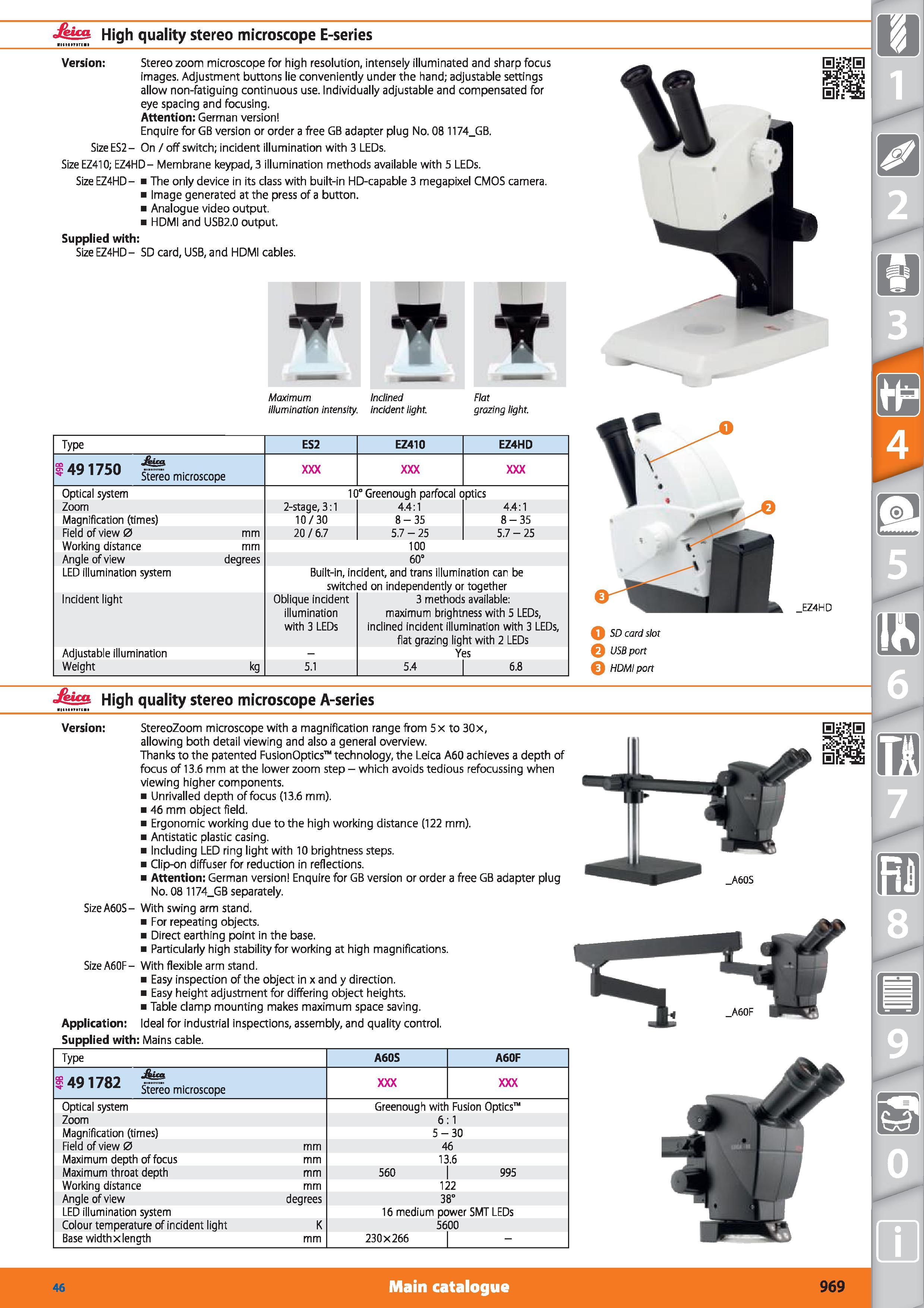

“S High quality stereo microscope E-series Version Stereo zoom microscope for high resolution, intensely illuminated and sharp focus images. Adjustment buttons lie conveniently under the hand; adjustable settings allow non-fatiguing continuous use. Individually adjustable and compensated for eye spacing and focusing. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB. Size ES2- On / off switch; incident illumination with 3 LEDs. Size EZ410; EZ4HD- Membrane keypad, 3 illumination methods available with 5 LEDs. Size EZ4HD- The only device in its class with built-in HD-capable 3 megapixel CMOS camera. Image generated at the press of a button. Analogue video output. HDMI and USB2.0 output. Supplied with Size EZ4HD- SD card, USB, and HDMI cables. T Maximum Inclined illumination intensity, incident light. Type 1491750 Stereo microscope Optical system Zoom Magnification (times) Field of view 0 Working distance Angle of view LED illumination system Incident light Adjustable illumination Weight mm degrees kg ES2 EZ410 EZ4HD 10°Greenough parfocal optics 2-stage, 3:1 4.4:1 4.4:1 10/30 8-35 8-35 20/6.7 5.7-25 5.7-25 100 60° Built-in, incident, and trans illumination can be switched on independently or together Oblique incident illumination with 3 LEDs 5.1 3 methods available maximum brightness with 5 LEDs, inclined incident illumination with 3 LEDs, flat grazing light with 2 LEDs Yes 5.4 I 6.8 o SD card slot 0 USB port Q HDMI port High quality stereo microscope A-series Version StereoZoom microscope with a magnification range from 5x to 30x, allowing both detail viewing and also a general overview. Thanks to the patented FusionOptics technology, the Leica A60 achieves a depth of focus of 13.6 mm at the lower zoom step - which avoids tedious refocussing when viewing higher components. Unrivalled depth of focus (13.6 mm). 46 mm object field. Ergonomic working due to the high working distance (122 mm). Antistatic plastic casing. Including LED ring light with 10 brightness steps. Clip-on diffuser for reduction in reflections. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB separately. SizeA60S- With swing arm stand. For repeating objects. Direct earthing point in the base. Particularly high stability for working at high magnifications. SizeA60F- With flexible arm stand. Easy inspection of the object in x and y direction. Easy height adjustment for differing object heights. Table clamp mounting makes maximum space saving. Application Ideal for industrial inspections, assembly, and quality control. Supplied with Mains cable. Type A60S A60F 491782 Stereo microscope Optical system Greenough with Fusion Optics Zoom 6:1 Magnification (times) 5- 30 Field of view 0 mm 46 Maximum depth of focus mm 13.6 Maximum throat depth mm 560 995 Working distance mm 122 Angle of view degrees 38° LED illumination system 16 medium power SMT LEDs Colour temperature of incident light K 5600 Base width x length mm 230x266 - m Main catalogue Hoffmann Group 46 969
