970 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.970

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 970 0970 ENG Lab2u

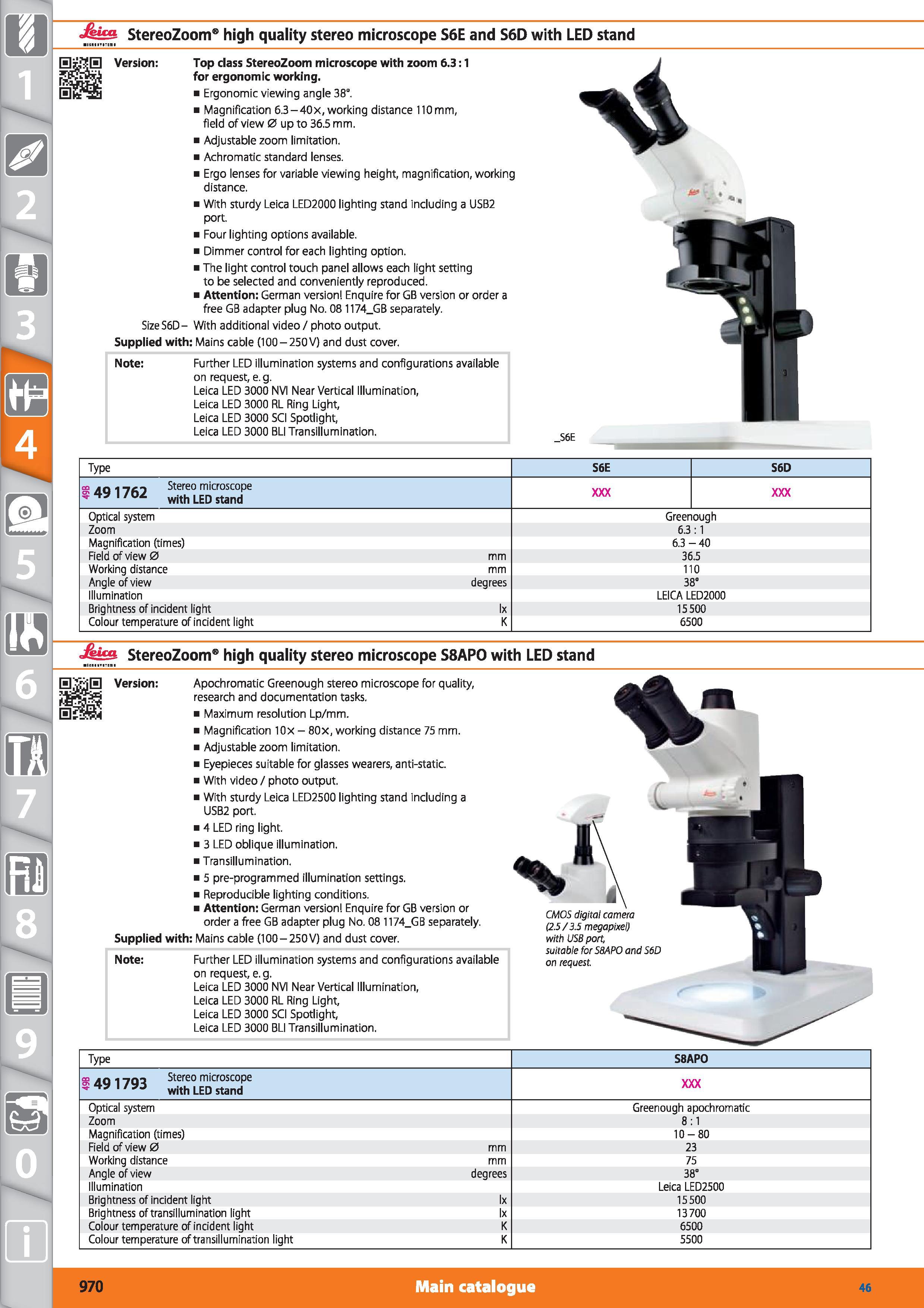

StereoZoom high quality stereo microscope S6E and S6D with LED stand Version Top class StereoZoom microscope with zoom 6.3:1 for ergonomic working. Ergonomic viewing angle 38°. Magnification 6.3-40x, working distance 110mm, field of view 0 up to 36.5 mm. Adjustable zoom limitation. Achromatic standard lenses. Ergo lenses for variable viewing height, magnification, working distance. With sturdy Leica LED2000 lighting stand including a USB2 port. Four lighting options available. Dimmer control for each lighting option. The light control touch panel allows each light setting to be selected and conveniently reproduced. Attention German version Enquire for GB version or order a free GB adapter plug No. 081174_GB separately. SizeS6D- With additional video / photo output. Supplied with Mains cable (100-250V) and dust cover. Note Further LED illumination systems and configurations available on request, e.g. Leica LED 3000 NVI Near Vertical Illumination, Leica LED 3000 RL Ring Light, Leica LED 3000 SCI Spotlight, Leica LED 3000 BLI Transillumination. _S6E Type 1491762 Stereo microscope with LED stand Optical system Zoom Magnification (times) Field of view 0 Working distance Angle of view Illumination Brightness of incident light Colour temperature of incident light mm degrees Ix K S6E S6D Greenough 6.3:1 6.3-40 36.5 110 38° LEICA LED2000 15500 6500 StereoZoom high quality stereo microscope S8APO with LED stand Version Apochromatic Greenough stereo microscope for quality, research and documentation tasks. Maximum resolution Lp/mm. Magnification 10X - 80x, working distance 75 mm. Adjustable zoom limitation. Eyepieces suitable for glasses wearers, anti-static. With video / photo output. With sturdy Leica LED2500 lighting stand including a USB2 port. 4 LED ring light. 3 LED oblique illumination. Transillumination. 5 pre-programmed illumination settings. Reproducible lighting conditions. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB separately. Supplied with Mains cable (100 - 250V) and dust cover. Note Further LED illumination systems and configurations available on request, e.g. Leica LED 3000 NVI Near Vertical Illumination, Leica LED 3000 RL Ring Light, Leica LED 3000 SCI Spotlight, Leica LED 3000 BLI Transillumination. CMOS digital camera (2.5/3.5 megapixel) with USB port, suitable for S8APO and S6D on request Type S8APO m jq i Stereo microscope 5 W 1 /V3 wj(h LED Jtand Optical system Greenough apochromatic Zoom 8:1 Maqnification (times) 10-80 Field of view 0 mm 23 Working distance mm 75 Angle of view degrees 38° Illumination Leica LED2500 Brightness of incident light Ix 15500 Brightness of transillumination light Ix 13700 Colour temperature of incident light K 6500 Colour temperature of transillumination light K 5500 970 Main catalogue Hoffmann Group 46
