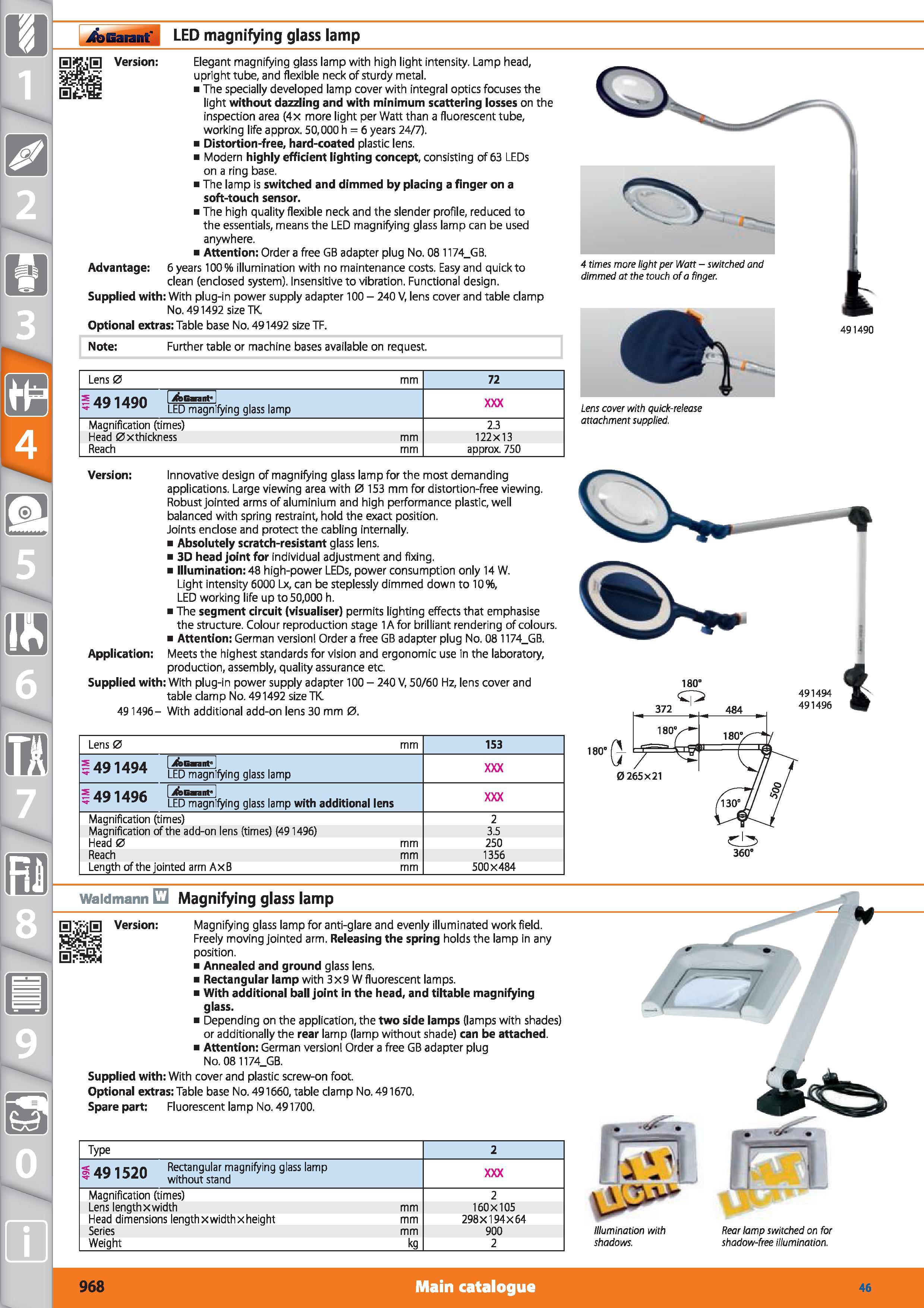

Garant LED magnifying glass lamp Version Elegant magnifying glass lamp with high light intensity. Lamp head, upright tube, and flexible neck of sturdy metal. The specially developed lamp cover with integral optics focuses the light without dazzling and with minimum scattering losses on the inspection area (4x more light per Watt than a fluorescent tube, working life approx. 50,000 h 6 years 24/7). Distortion-free, hard-coated plastic lens. Modern highly efficient lighting concept, consisting of 63 LEDs on a ring base. The lamp is switched and dimmed by placing a finger on a soft-touch sensor. The high quality flexible neck and the slender profile, reduced to the essentials, means the LED magnifying glass lamp can be used anywhere. Attention Order a free GB adapter plug No. 08 1174_GB. Advantage 6 years 100% illumination with no maintenance costs. Easy and quick to clean (enclosed system). Insensitive to vibration. Functional design. Supplied with With plug-in power supply adapter 100 - 240 V, lens cover and table clamp No. 491492 sizeTK. Optional extras Table base No. 491492 size TF. Note Further table or machine bases available on request. Lens 0 mm 72 s 401400 1 1 LED magnifying glass lamp Magnification (times) 2.3 Head 0xthickness mm 122x13 Reach mm approx. 750 Lens cover with quick-release attachment supplied. Version Innovative design of magnifying glass lamp for the most demanding applications. Large viewing area with 0 153 mm for distortion-free viewing. Robust jointed arms of aluminium and high performance plastic, well balanced with spring restraint, hold the exact position. Joints enclose and protect the cabling internally. Absolutely scratch-resistant glass lens. 3D head joint for individual adjustment and fixing. Illumination 48 high-power LEDs, power consumption only 14 W. Light intensity 6000 Lx, can be steplessly dimmed down to 10%, LED working life up to 50,000 h. The segment circuit (visualiser) permits lighting effects that emphasise the structure. Colour reproduction stage lAfor brilliant rendering of colours. Attention German version Order a free GB adapter plug No. 08 1174_GB. Application Meets the highest standards for vision and ergonomic use in the laboratory, production, assembly, quality assurance etc. Supplied with With plug-in power supply adapter 100 - 240 V, 50/60 Flz, lens cover and table clamp No. 491492 size TK. 491496- With additional add-on lens 30 mm 0. Lens 0 mm 153 S 49 1494 1 / >Garant' LED magnifying glass lamp S 49 1496 1 Al&ranr LED magnifying glass lamp with additional lens Magnification (times) 2 Magnification of the add-on lens (times) (491496) 3.5 Head 0 mm 250 Reach mm 1356 Length of the jointed arm AxB mm 500 x484 C13 360" Waldmann E Magnifying glass lamp Version Magnifying glass lamp for anti-glare and evenly illuminated work field. Freely moving jointed arm. Releasing the spring holds the lamp in any position. Annealed and ground glass lens. Rectangular lamp with 3x9 W fluorescent lamps. With additional ball joint in the head, and tiltable magnifying glass. Depending on the application, the two side lamps (lamps with shades) or additionally the rear lamp (lamp without shade) can be attached. Attention German version Order a free GB adapter plug No. 08 1174_GB. Supplied with With cover and plastic screw-on foot. Optional extras Table base No. 491660, table clamp No. 491670. Spare part Fluorescent lamp No. 491700. Type 2 Si AQ 1 Rectangular magnifying glass lamp 'r without stand Magnification (times) 2 Lens lengthxwidth mm 160X105 Head dimensions lengthxwidthxheight mm 298X194X 64 Series mm 900 Weight kg 2 liV'l Illumination with shadows. Rear lamp switched on for shadow-free illumination. 968 Main catalogue Hoffmann Group 46 4 times more light per Watt - switched and dimmed at the touch of a finger. 491490
