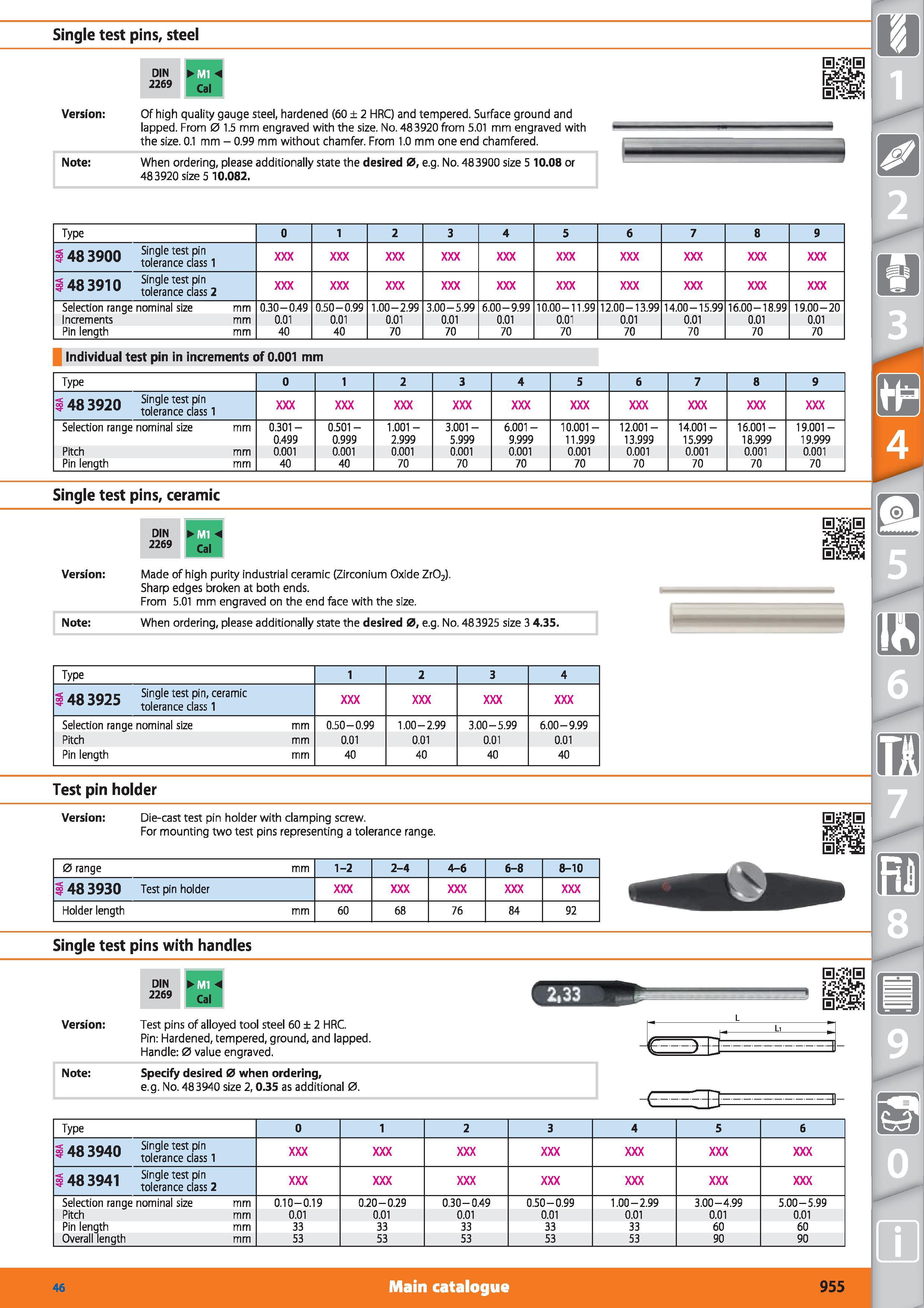

Single test pins, steel Note DIN Ml 2269 Cal Version Of high quality gauge steel, hardened (60 ± 2 HRC) and tempered. Surface ground and lapped. From 0 1.5 mm engraved with the size. No. 483920 from 5.01 mm engraved with the size. 0.1 mm - 0.99 mm without chamfer. From 1.0 mm one end chamfered. When ordering, please additionally state the desired 0, e.g. No. 483900 size 5 10.08 or 483920 size 5 10.082. -I Type 0 1 2 3 4 5 6 7 8 9 1483900 Single test pin tolerance class 1 1483910 Single test pin tolerance class 2 Selection range nominal size mm 0.30-0.49 0.50-0.99 1.00-2.99 3.00-5.99 6.00-9.99 10.00-11.99 12.00-13.99 14.00-15.99 16.00-18.99 19.00-20 Increments mm 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 Pin length mm 40 40 70 70 70 70 70 70 70 70 Individual test pin in increments of 0.001 mm Single test pins, ceramic DIN 2269 Version Made of high purity industrial ceramic (Zirconium Oxide Zr02). Sharp edges broken at both ends. From 5.01 mm engraved on the end face with the size. Note When ordering, please additionally state the desired 0, e.g. No. 483925 size 3 4.35. Type 0 1 2 3 4 5 6 7 8 9 S A.a qqin Single test pin g 48 t0 erance class 1 Selection range nominal size mm 0.301 -0.499 0.501 -0.999 1.001 2.999 3.001 -5.999 6.001 -9.999 10.001- 11.999 12.001- 13.999 14.001 -15.999 16.001 18.999 19.001 19.999 Pitch mm 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 Pin length mm 40 40 70 70 70 70 70 70 70 70 Type 1 2 3 4 < .a 01p Single test pin, ceramic tolerance class 1 Selection range nominal size mm 0.50-0.99 1.00-2.99 3.00-5.99 6.00-9.99 Pitch mm 0.01 0.01 0.01 0.01 Pin length mm 40 40 40 40 Test pin holder Version Die-cast test pin holder with clamping screw. For mounting two test pins representing a tolerance range. 0 range mm 1-2 2-4 4-6 6-8 8-10 M 48 3930 Test pin holder Holder length mm 60 68 76 84 92 Single test pins with handles DIN 2269 Version Test pins of alloyed tool steel 60 ± 2 HRC. Pin Hardened, tempered, ground, and lapped. Handle 0 value engraved. Note Specify desired 0 when ordering, e.g. No. 483940 size 2,0.35 as additional 0. L1 u -f (- r i i i i Type 0 1 2 3 4 5 6 1483940 Single test pin tolerance class 1 1483941 Single test pin tolerance class 2 Selection range nominal size mm 0.10-0.19 0.20-0.29 0.30-0.49 0.50-0.99 1.00-2.99 3.00-4.99 5.00-5.99 Pitch mm 0.01 0.01 0.01 0.01 0.01 0.01 0.01 Pin length mm 33 33 33 33 33 60 60 Overall length mm 53 53 53 53 53 90 90 m Main catalogue Hoffmann Group 46 955
