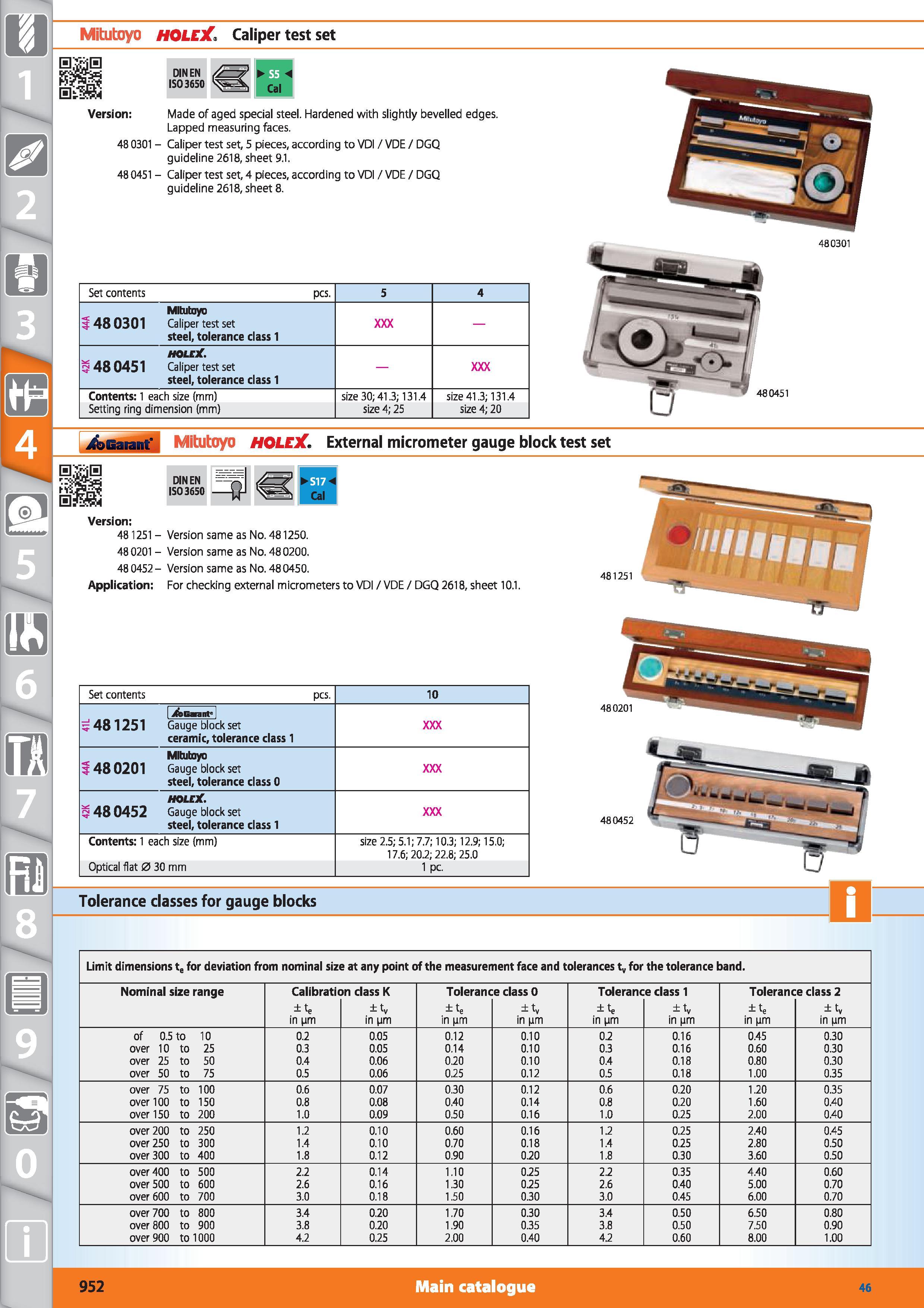

Mitutoyo HOLEX Caliper test set Version 48 0301 - 480451- Made of aged special steel. Hardened with slightly bevelled edges. Lapped measuring faces. Caliper test set, 5 pieces, according to VDI / VDE / DGQ guideline 2618, sheet 9.1. Caliper test set, 4 pieces, according to VDI / VDE / DGQ guideline 2618, sheet 8. Set contents pcs. 5 4 1480301 Mlhitoyo Caliper test set steel, tolerance class 1 3 480451 holbC. Caliper test set steel, tolerance class 1 Contents 1 each size (mm) size 30; 41.3; 131.4 size 41.3; 131.4 Setting ring dimension (mm) size 4; 25 size 4; 20 480301 480451 Mitutoyo HOLEX External micrometer gauge block test set DINEN ISO 3650 Cal Version 481251 - Version same as No. 481250. 480201 - Version same as No. 480200. 48 0452 - Version same as No. 48 0450. Application For checking external micrometers to VDI / VDE / DGQ 2618, sheet 10.1. 8 0 m Set contents pcs. 10 481251 I Garant Gauge block set ceramic, tolerance class 1 1480201 Mitutoyo Gauge block set steel, tolerance class 0 -480452 HOLEX Gauge block set steel, tolerance class 1 Contents 1 each size (mm) size 2.5; 5.1; 7.7; 10.3; 12.9; 15.0; 17.6; 20.2; 22.8; 25.0 Optical flat 0 30 mm 1 pc. 48 0452 Tolerance classes for gauge blocks Limit dimensions te for deviation from nominal size at any point of the measurement face and tolerances tv for the tolerance band. Nominal size range Calibration class K Tolerance class 0 Tolerance class 1 Tolerance class 2 ± te ±tv ±te ±tv ±t ±tv ±te ±t. in nm in m in im in im in nm in jm in im in (jm of 0.5 to 10 0.2 0.05 0.12 0.10 0.2 0.16 0.45 0.30 over 10 to 25 0.3 0.05 0.14 0.10 0.3 0.16 0.60 0.30 over 25 to 50 0.4 0.06 0.20 0.10 0.4 0.18 0.80 0.30 over 50 to 75 0.5 0.06 0.25 0.12 0.5 0.18 1.00 0.35 over 75 to 100 0.6 0.07 0.30 0.12 0.6 0.20 1.20 0.35 over 100 to 150 0.8 0.08 0.40 0.14 0.8 0.20 1.60 0.40 over 150 to 200 1.0 0.09 0.50 0.16 1.0 0.25 2.00 0.40 over 200 to 250 1.2 0.10 0.60 0.16 1.2 0.25 2.40 0.45 over 250 to 300 1.4 0.10 0.70 0.18 1.4 0.25 2.80 0.50 over 300 to 400 1.8 0.12 0.90 0.20 1.8 0.30 3.60 0.50 over 400 to 500 2.2 0.14 1.10 0.25 2.2 0.35 4.40 0.60 over 500 to 600 2.6 0.16 1.30 0.25 2.6 0.40 5.00 0.70 over 600 to 700 3.0 0.18 1.50 0.30 3.0 0.45 6.00 0.70 over 700 to 800 3.4 0.20 1.70 0.30 3.4 0.50 6.50 0.80 over 800 to 900 3.8 0.20 1.90 0.35 3.8 0.50 7.50 0.90 over 900 to 1000 4.2 0.25 2.00 0.40 4.2 0.60 8.00 1.00 481251 480201 952 Main catalogue Hoffmann Group 46
