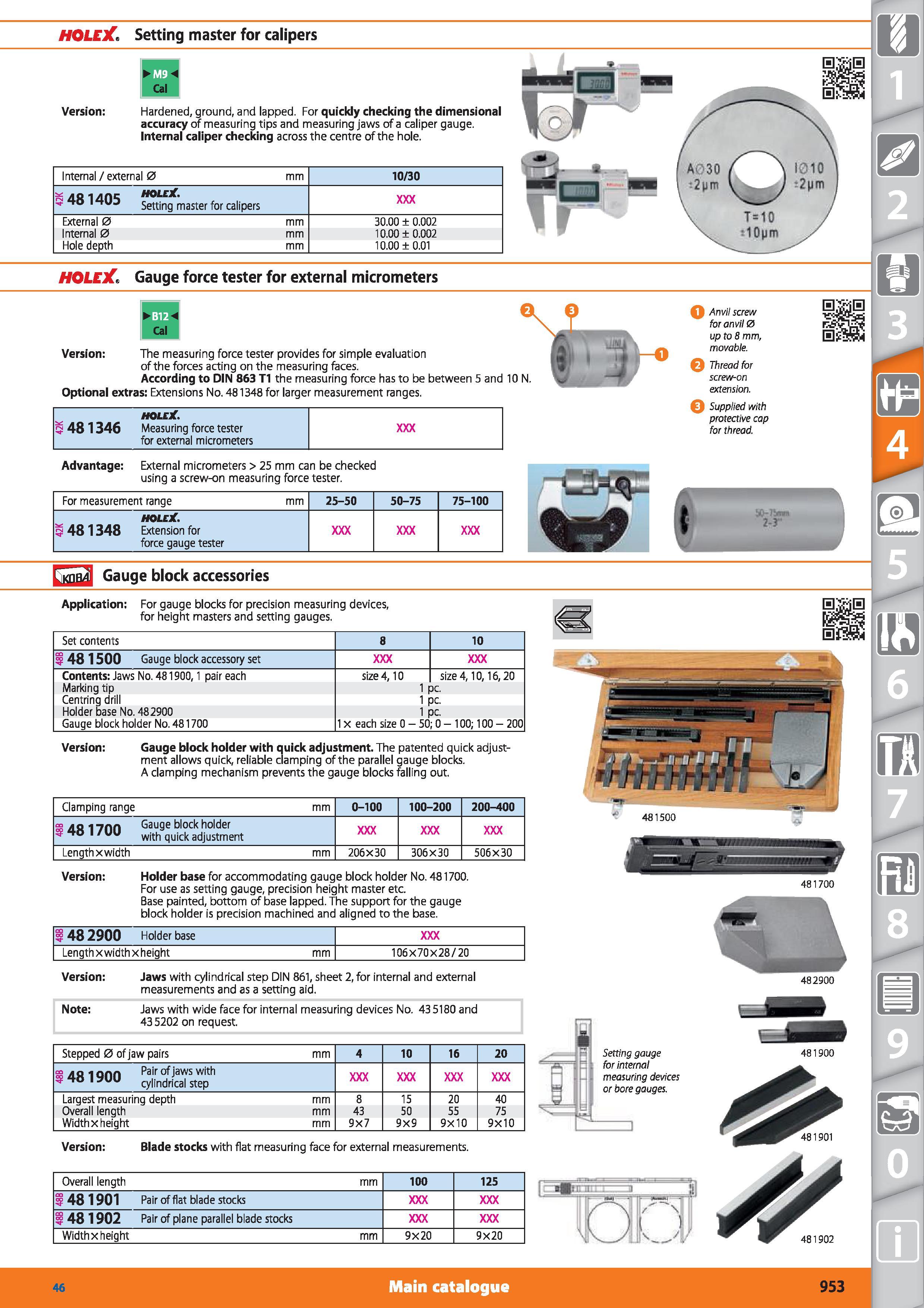

HOLEX Setting master for calipers Version Hardened, ground, and lapped. For quickly checking the dimensional accuracy of measuring tips and measuring jaws of a caliper gauge. Internal caliper checking across the centre of the hole. Internal / external 0 mm 10/30 AR i Ant; hqlejc. Setting master for calipers External 0 mm 30.00 ± 0.002 Internal 0 mm 10.00 ±0.002 Hole depth mm 10.00 ±0.01 HOLEJCGauge force tester for external micrometers Cal Version The measuring force tester provides for simple evaluation of the forces acting on the measuring faces. According to DIN 863 Tl the measuring force has to be between 5 and 10 N. Optional extras Extensions No. 481348 for larger measurement ranges. HOLEX tj 48 1346 Measuring force tester for external micrometers Advantage External micrometers > 25 mm can be checked using a screw-on measuring force tester. For measurement range mm 25-50 50-75 75-100 HOLEX 3 481348 Extension for force gauge tester Gauge block accessories Application For gauge blocks for precision measuring devices, for height masters and setting gauges. Set contents 8 10 1481500 Gauge block accessory set Contents Jaws No. 481900, 1 pair each size 4,10 size 4,10,16,20 Marking tip 1 pc. Centring drill 1 pc. Holder base No. 482900 1 pc. Gauge block holder No. 481700 1X each size 0 - 50; 0 - 100; 100 - 200 Version Gauge block holder with quick adjustment. The patented quick adjust- ment allows quick, reliable clamping of the parallel gauge blocks. A clamping mechanism prevents the gauge blocks falling out. Clamping range mm 0-100 100-200 200-400 n 4ft 17nn Gauge block holder with quick adjustment Lengthxwidth mm 206x30 306x30 506x30 Version Holder base for accommodating gauge block holder No. 481700. For use as setting gauge, precision height master etc. Base painted, bottom of base lapped. The support for the gauge block holder is precision machined and aligned to the base. 1 48 2900 Holder base Lengthxwidthxheight mm 106x70x28/20 Version Jaws with cylindrical step DIN 861, sheet 2, for internal and external measurements and as a setting aid. Note Jaws with wide face for internal measuring devices No. 435180 and 435202 on request. Stepped 0 of jaw pairs mm 4 10 16 20 S481900 “S"- Largest measuring depth mm 8 15 20 40 Overall length mm 43 50 55 75 Widthxheight mm 9X7 9X9 9X10 9X10 Version Blade stocks with flat measuring face for external measurements. Overall length mm 100 125 1481901 Pair of flat blade stocks 1481902 Pair of plane parallel blade stocks Widthxheight mm 9X20 9X20 46 Main catalogue
