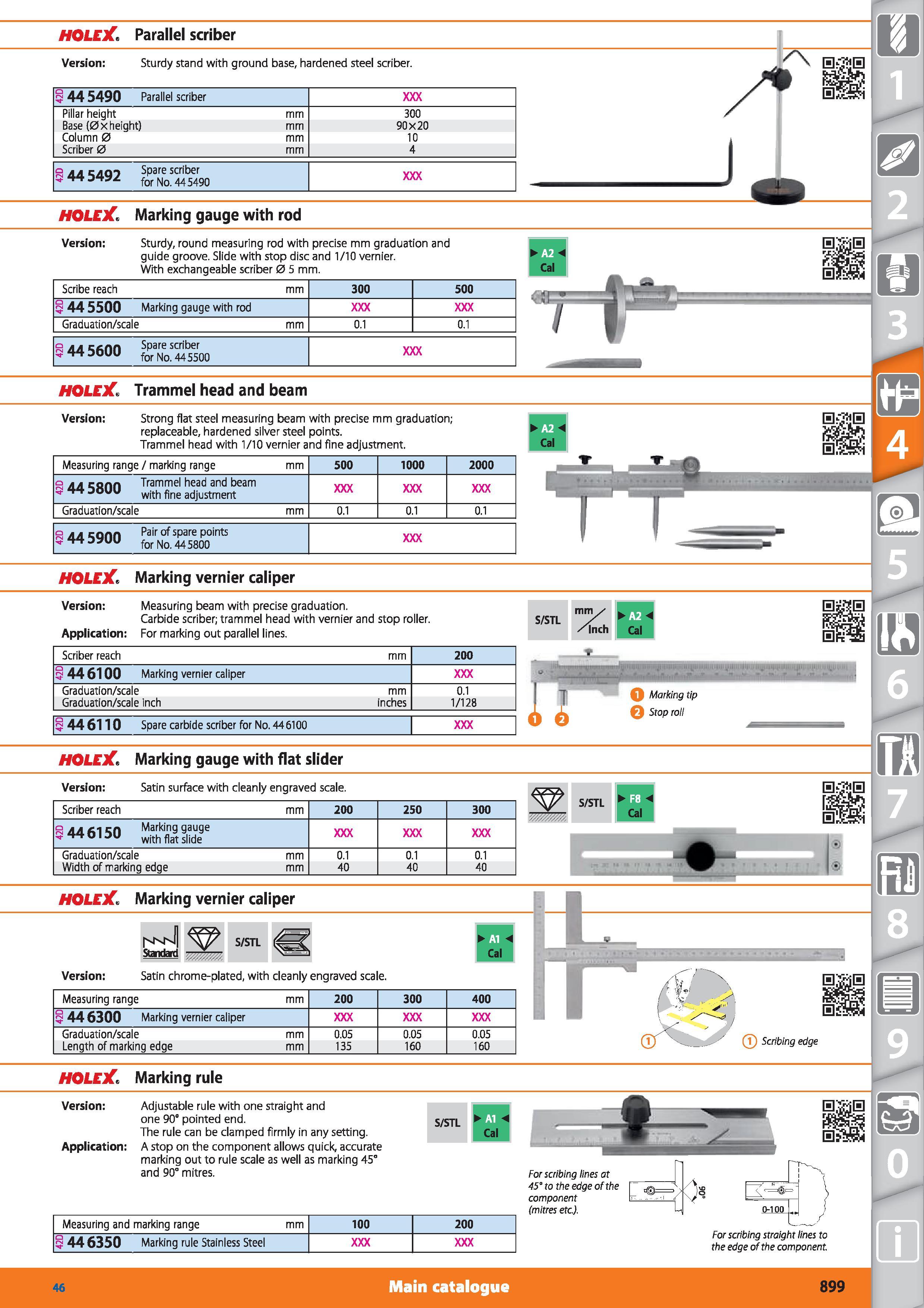

HOLEX Parallel scriber Version Sturdy stand with ground base, hardened steel scriber. 44 5490 Parallel scriber Pillar height mm 300 Base (0x height) mm 90X20 Column 0 mm 10 Scriber 0 mm 4 S ii 5AQ sPare scriber „.44D4i Z for No. 445490 HOLEX Marking gauge with rod Version Sturdy, round measuring rod with precise mm graduation and guide groove. Slide with stop disc and 1/10 vernier. Scribe reach mm 300 500 44 5500 Marking gauge with rod Graduation/scale mm 0.1 0.1 S 44 5600 sPare scriber 44 30UU for No. 445500 HOLEX Trammel head and beam Version Strong flat steel measuring beam with precise mm graduation, replaceable, hardened silver steel points. Trammel head with 1/10 vernier and fine adjustment. Measuring range / marking range mm 500 1000 2000 q a a coftn Trammel head and beam a- 44 jouu w t 1 fjne ac jUStment Graduation/scale mm 0.1 0.1 0.1 a 44 qqnn Pair of spare points 44 3SUU for No. 445800 HOLEJCMarking vernier caliper Version Measuring beam with precise graduation. Carbide scriber; trammel head with vernier and stop roller. Application For marking out parallel lines. Scriber reach 44 6100 Marking vernier caliper Graduation/scale Graduation/scale inch 44 6110 Spare carbide scriber for No. 446100 HOLEX Marking gauge with flat slider Version Satin surface with cleanly engraved scale. Scriber reach mm 200 250 300 446150 Marking gauge 44 013U with flat slide Graduation/scale mm 0.1 0.1 0.1 Width of marking edge mm 40 40 40 HOLEX Marking vernier caliper Standard S/STL Version Satin chrome-plated, with cleanly engraved scale. Measuring range mm 200 300 400 44 6300 Marking vernier caliper Graduation/scale mm 0.05 0.05 0.05 Length of marking edge mm 135 160 160 HOLEX Marking rule Version Adjustable rule with one straight and one 90° pointed end. The rule can be clamped firmly in any setting. Application A stop on the component allows quick, accurate marking out to rule scale as well as marking 45° and 90° mitres. Measuring and marking range mm 100 200 44 6350 Marking rule Stainless Steel For scribing lines at 45° to the edge of the component (mitres etc). n- L, o-i nn j For scribing straight lines to the edge of the component Main catalogue Hoffmann Group 46 899
