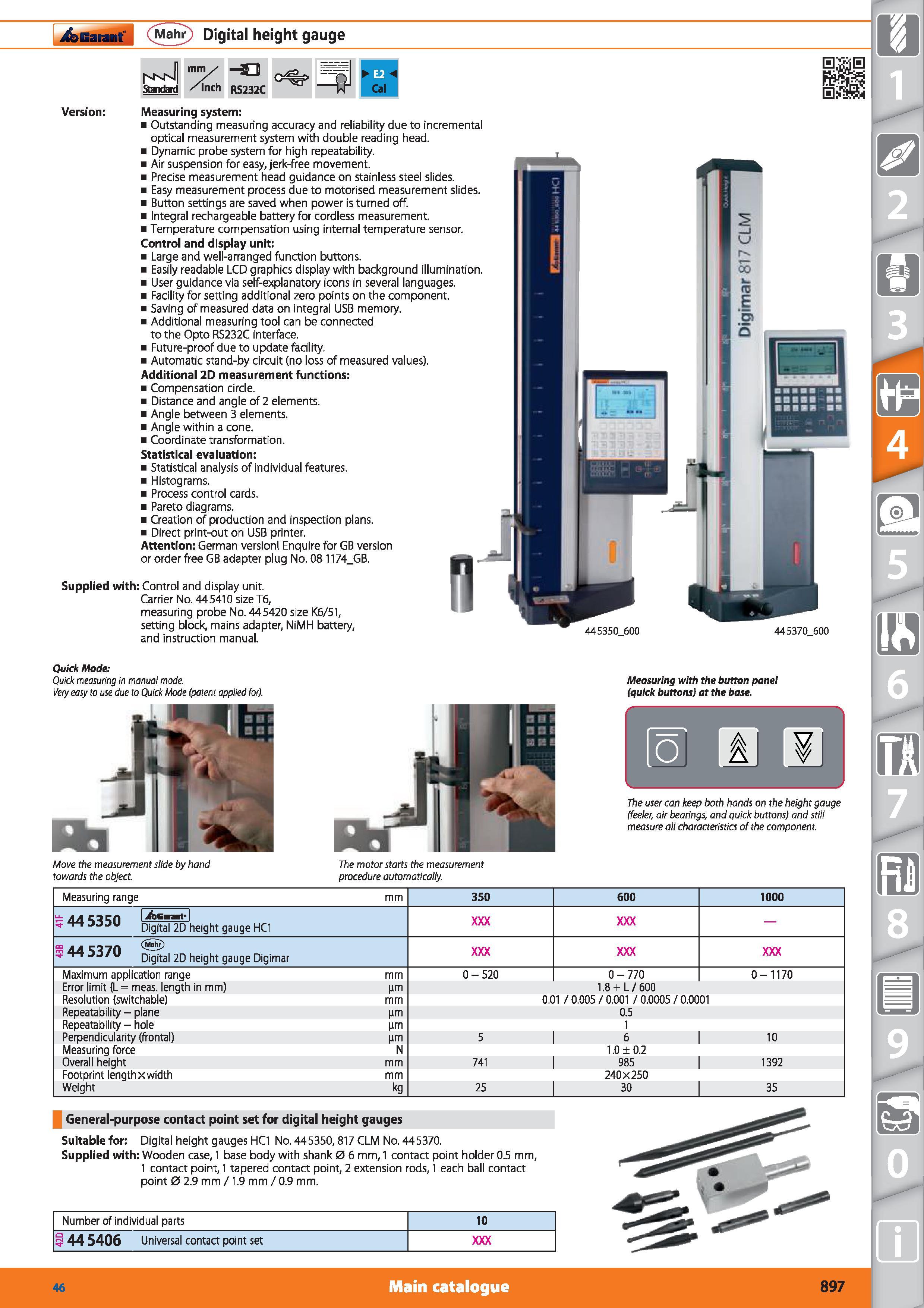

Garant Mahr Digital height gauge Version vkn Standard mm /inch RS232C Measuring system Outstanding measuring accuracy and reliability due to incremental optical measurement system with double reading head. Dynamic probe system for high repeatability. Air suspension for easy, jerk-free movement. Precise measurement head guidance on stainless steel slides. Easy measurement process due to motorised measurement slides. Button settings are saved when power is turned off. Integral rechargeable battery for cordless measurement. Temperature compensation using internal temperature sensor. Control and display unit Large and well-arranged function buttons. Easily readable LCD graphics display with background illumination. User guidance via self-explanatory icons in several languages. Facility for setting additional zero points on the component. Saving of measured data on integral USB memory. Additional measuring tool can be connected to the Opto RS232C interface. Future-proof due to update facility. Automatic stand-by circuit (no loss of measured values). Additional 2D measurement functions Compensation circle. Distance and angle of 2 elements. Angle between 3 elements. Angle within a cone. Coordinate transformation. Statistical evaluation Statistical analysis of individual features. Flistograms. Process control cards. Pareto diagrams. Creation of production and inspection plans. Direct print-out on USB printer. Attention German version Enquire for GB version or order free GB adapter plug No. 081174_GB. Supplied with Control and display unit. Carrier No. 445410 size T6, measuring probe No. 445420 size K6/51, setting block, mains adapter, NiMH battery, and instruction manual. 445350 600 445370 600 The motor starts the measurement procedure automatically. Measuring with the button panel Iquick buttons) at the base. Quick Mode Quick measuring in manual mode. Very easy to use due to Quick Mode (patent applied for). Move the measurement slide by hand towards the object. The user can keep both hands on the height gauge (feeler, air bearings, and quick buttons) and still measure all characteristics of the component. Measuring range mm 350 600 1000 AA t-l M3U Digita 2D hejght gauge HC1 44 5370 Digital 2D height gauge Digimar Maximum application range mm 0-520 0-770 0-1170 Error limit (L meas. length in mm) jm 1.8 + L/600 Resolution (switchable) mm 0.01 / 0.005 / 0.001 / 0.0005 / 0.0001 Repeatability - plane jm 0.5 Repeatability - hole jm 1 Perpendicularity (frontal) m 5 6 10 Measuring force N 1.0 ±0.2 Overall height mm 741 985 1392 Footprint lengthxwidth mm 240X250 Weight kg 25 30 35 General-purpose contact point set for digital height gauges Suitable for Digital height gauges HC1 No. 445350,817 CLM No. 445370. Supplied with Wooden case, 1 base body with shank 0 6 mm, 1 contact point holder 0.5 mm, 1 contact point, 1 tapered contact point, 2 extension rods, 1 each ball contact point 0 2.9 mm /1.9 mm / 0.9 mm. Number of individual parts 10 44 5406 Universal contact point set Main catalogue Hoffmann Group 46 897
