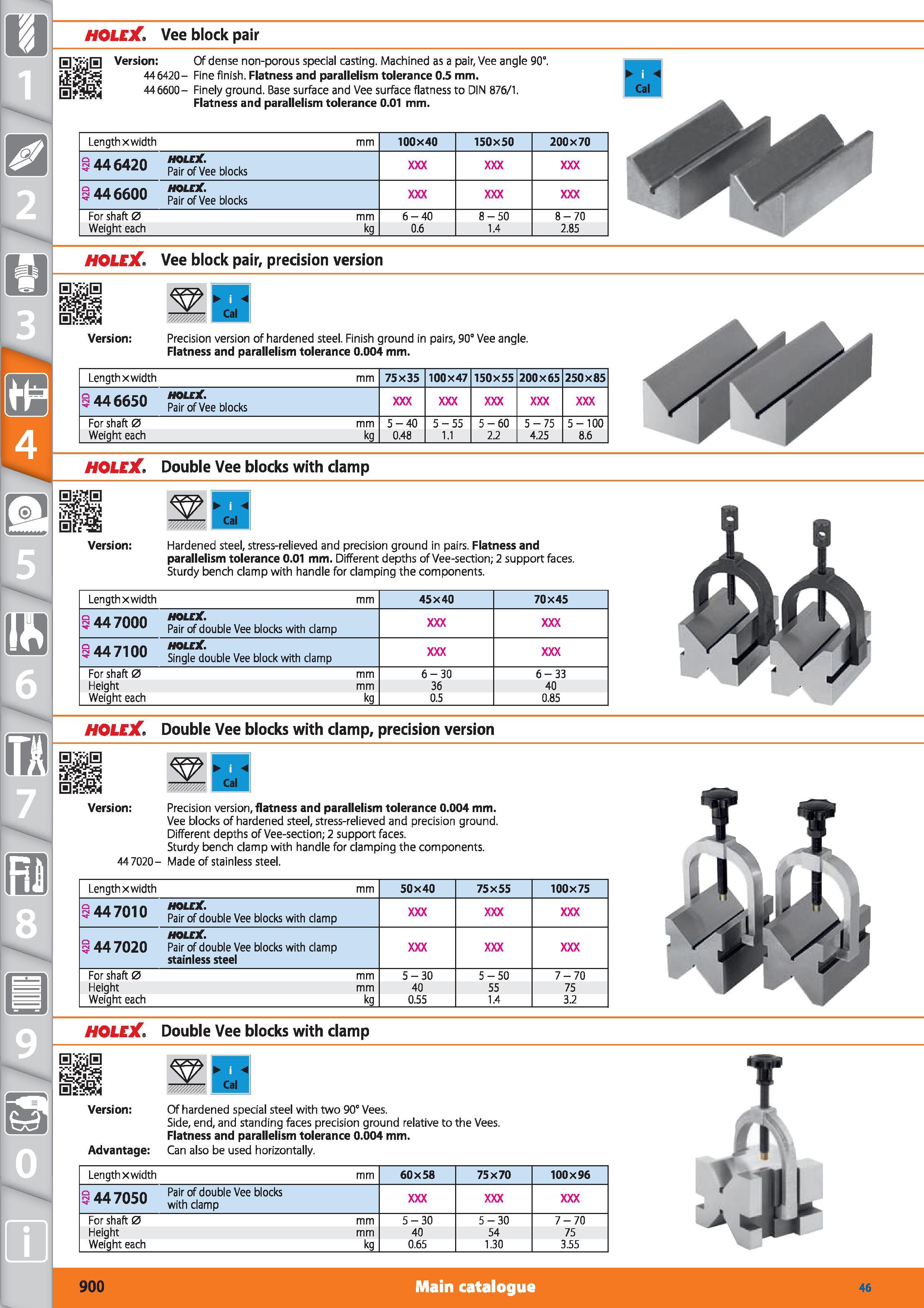

900 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.900

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 900 0900 ENG Lab2u

1 HOLEX Vee block pair s;shs Version Of dense non-porous special casting. Machined as a pair, Vee angle 90°. 446420- Fine finish. Flatness and parallelism tolerance 0.5 mm. 446600- Finely ground. Base surface and Vee surface flatness to DIN 876/1. Flatness and parallelism tolerance 0.01 mm. Lengthxwidth mm 100x40 150x50 200x70 44 6420 HOLEX Pair of Vee blocks 446600 HOLEX Pair of Vee blocks For shaft 0 mm 6-40 8-50 8-70 Weight each kg 0.6 1.4 2.85 HOLEX Vee block pair, precision version Cal Version Precision version of hardened steel. Finish ground in pairs, 90° Vee angle. Flatness and parallelism tolerance 0.004 mm. Lengthxwidth mm 75x35 100x47 150x55 200x65 250 x85 44 6650 HOLEX Pair of Vee blocks For shaft 0 mm 5-40 5-55 5-60 5-75 5-100 Weight each kg 0.48 1.1 2.2 4.25 8.6 HOLEJC'. Double Vee blocks with clamp Cal Hardened steel, stress-relieved and precision ground in pairs. Flatness and parallelism tolerance 0.01 mm. Different depths of Vee-section; 2 support faces. Sturdy bench clamp with handle for clamping the components. Lengthxwidth mm 45x40 70x45 447000 HOLEX Pair of double Vee blocks with clamp 447100 HOLEX Single double Vee block with clamp For shaft 0 mm 6-30 6-33 Height mm 36 40 Weight each kg 0.5 0.85 HOLEX Double Vee blocks with clamp, precision version Cal Version 447020- Precision version, flatness and parallelism tolerance 0.004 mm. Vee blocks of hardened steel, stress-relieved and precision ground. Different depths of Vee-section; 2 support faces. Sturdy bench clamp with handle for clamping the components. Made of stainless steel. Lengthxwidth mm 50x40 75x55 100x75 447010 HOLEX Pair of double Vee blocks with clamp 447020 HOLEX Pair of double Vee blocks with clamp stainless steel For shaft 0 mm 5-30 5-50 7-70 Height mm 40 55 75 Weight each kg 0.55 1.4 3.2 HOLEX Double Vee blocks with clamp Cal Advantage Of hardened special steel with two 90° Vees. Side, end, and standing faces precision ground relative to the Vees. Flatness and parallelism tolerance 0.004 mm. Can also be used horizontally. Lengthxwidth mm 60x58 75x70 100x96 447050 Pair of double Vee blocks with clamp For shaft 0 mm 5-30 5-30 7-70 Height mm 40 54 75 Weight each kg 0.65 1.30 3.55 900 Main catalogue Hoffmann Group 46
