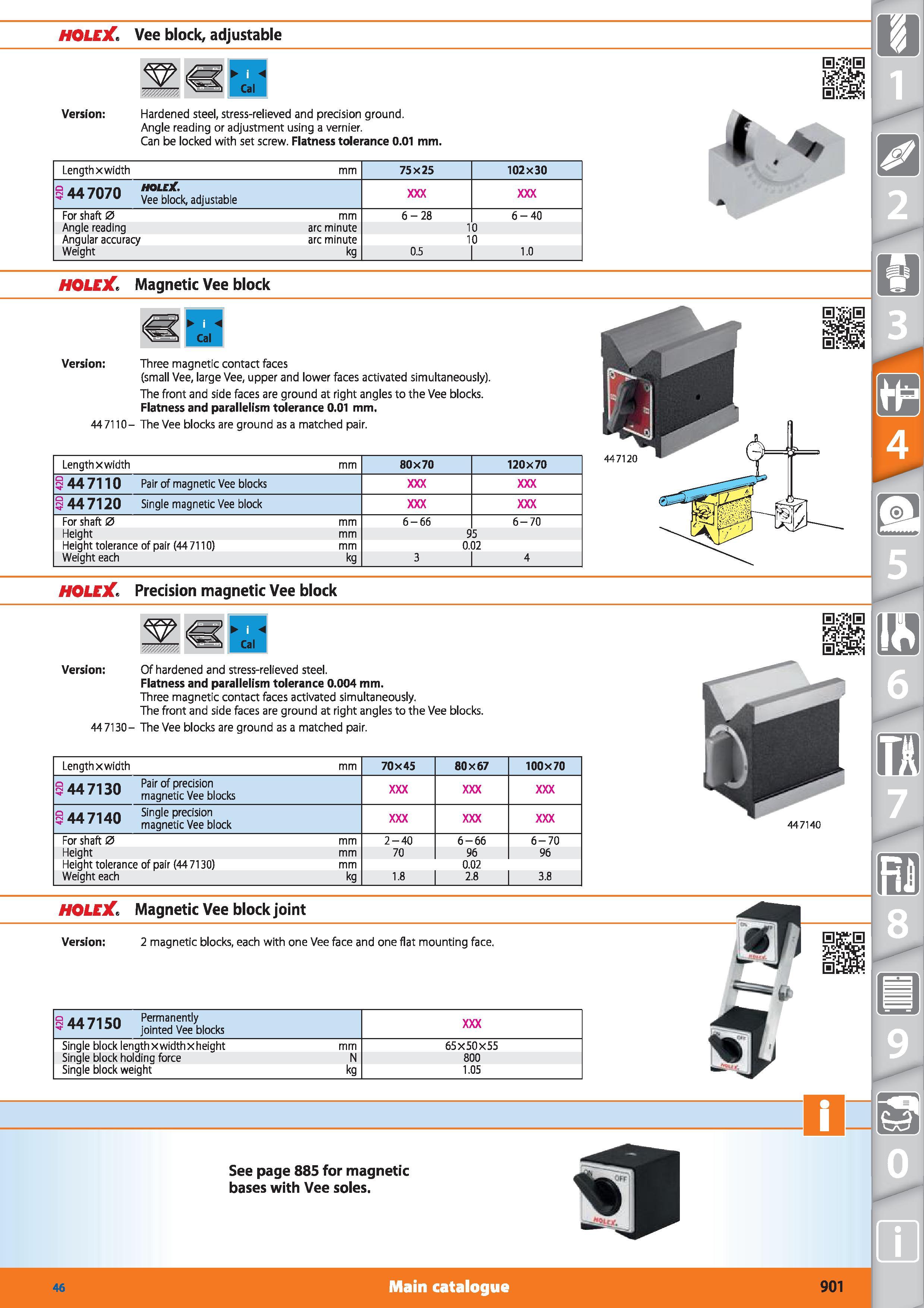

HOLEX Vee block, adjustable Cal Version Hardened steel, stress-relieved and precision ground. Angle reading or adjustment using a vernier. Can be locked with set screw. Flatness tolerance 0.01 mm. Lengthxwidth mm 75x25 102x30 44 7070 rblock, adjustable For shaft 0 mm 6-28 6-40 Angle reading arc minute 1 0 Angular accuracy arc minute 1 0 Weight kg 0.5 1.0 HOLEX Magnetic Vee block I Version Three magnetic contact faces (small Vee, large Vee, upper and lower faces activated simultaneously). The front and side faces are ground at right angles to the Vee blocks. Flatness and parallelism tolerance 0.01 mm. 447110- The Vee blocks are ground as a matched pair. Lengthxwidth mm 80x70 120x70 447110 Pair of magnetic Vee blocks 447120 Single magnetic Vee block For shaft 0 mm 6-66 6-70 Height mm 95 Height tolerance of pair (447110) mm 0.02 Weight each kg 3 4 HOLEX Precision magnetic Vee block Cal Version Of hardened and stress-relieved steel. Flatness and parallelism tolerance 0.004 mm. Three magnetic contact faces activated simultaneously. The front and side faces are ground at right angles to the Vee blocks. 447130- The Vee blocks are ground as a matched pair. Lengthxwidth mm 70x45 80x67 100x70 447130 Pair of precision magnetic Vee blocks 447140 Single precision magnetic Vee block For shaft 0 mm 2-40 6-66 6-70 Height mm 70 96 96 Height tolerance of pair (44 7130) mm 0.02 Weight each kg 1.8 2.8 3.8 HOLEX Magnetic Vee block joint Version 2 magnetic blocks, each with one Vee face and one flat mounting face. S 44 71 SO Permanently / 3U jointed Vee b ocks Single block lengthxwidthxheight mm 65X50X55 Single block holding force N 800 Single block weight kg 1.05 See page 885 for magnetic bases with Vee soles. 447140 Main catalogue Hoffmann Group 46 901
