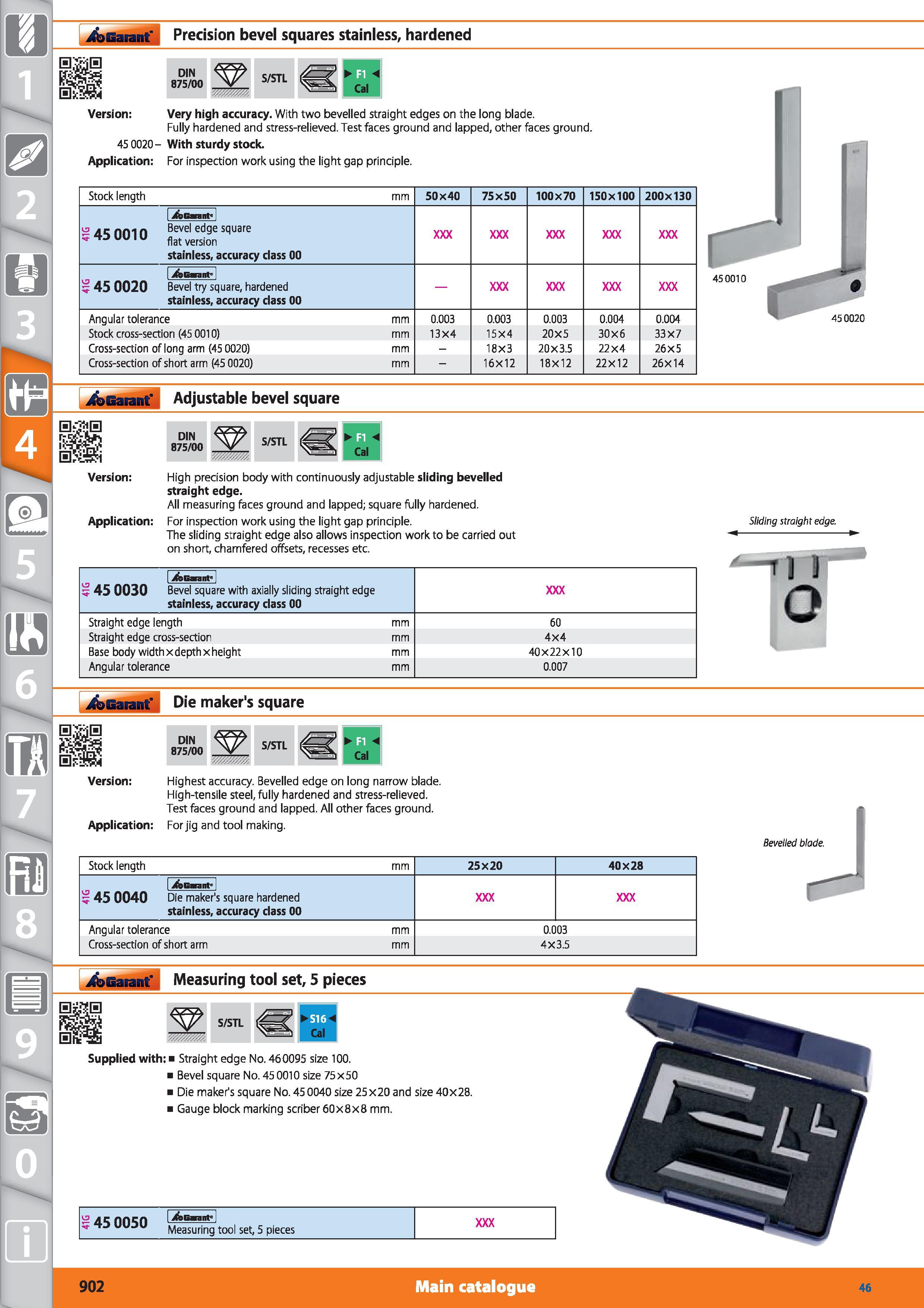

1 ssia HicHS Version 45 0020-Application DIN 875/00 S/STL < Cal Very high accuracy. With two bevelled straight edges on the long blade. Fully hardened and stress-relieved. Test faces ground and lapped, other faces ground. With sturdy stock. For inspection work using the light gap principle. Stock length mm 50x40 75x50 100x70 150x100 200x130 jfbGanmt1 J S 45 0010 Bevel edge square flat version stainless, accuracy class 00 5 45 0020 1 Xb Garant’ Bevel try square, hardened stainless, accuracy class 00 Angular tolerance mm 0.003 0.003 0.003 0.004 0.004 Stock cross-section (45 0010) mm 13X4 15X4 20X5 30X6 33X7 Cross-section of long arm (45 0020) mm - 18X3 20X3.5 22x4 26X5 Cross-section of short arm (45 0020) mm - 16X12 18X12 22X12 26X14 450010 j&Gajariil Adjustable bevel square rr.S DIN 875/00 S/STL - Cal Version Application High precision body with continuously adjustable sliding bevelled straight edge. All measuring faces ground and lapped; square fully hardened. For inspection work using the light gap principle. The sliding straight edge also allows inspection work to be carried out on short, chamfered offsets, recesses etc. Sliding straightedge. I Xb Garant 5 45 0030 Bevel square with axially sliding straight edge stainless, accuracy class 00 Straight edge length mm 60 Straight edge cross-section mm 4X4 Base body widthxdepthxheight mm 40 x 22x10 Angular tolerance mm 0.007 j&GajariH Die maker's square DIN 875/00 S/STL Cal Version Highest accuracy. Bevelled edge on long narrow blade. High-tensile steel, fully hardened and stress-relieved. Test faces ground and lapped. All other faces ground. Application For jig and tool making. Bevelled blade. Stock length mm 25X20 40X28 1 /is Emit' j 45 0040 Die maker's square hardened stainless, accuracy class 00 Angular tolerance mm 0.003 Cross-section of short arm mm 4X3.5 Measuring tool set, 5 pieces S/STL Cal Supplied with Straight edge No. 460095 size 100. Bevel square No. 450010 size 75x50 Die maker's square No. 450040 size 25x20 and size 40x28. Gauge block marking scriber 60x8x8 mm. I jfeBwiit" Measuring tool set, 5 pieces 902 Main catalogue Hoffmann Group 46
