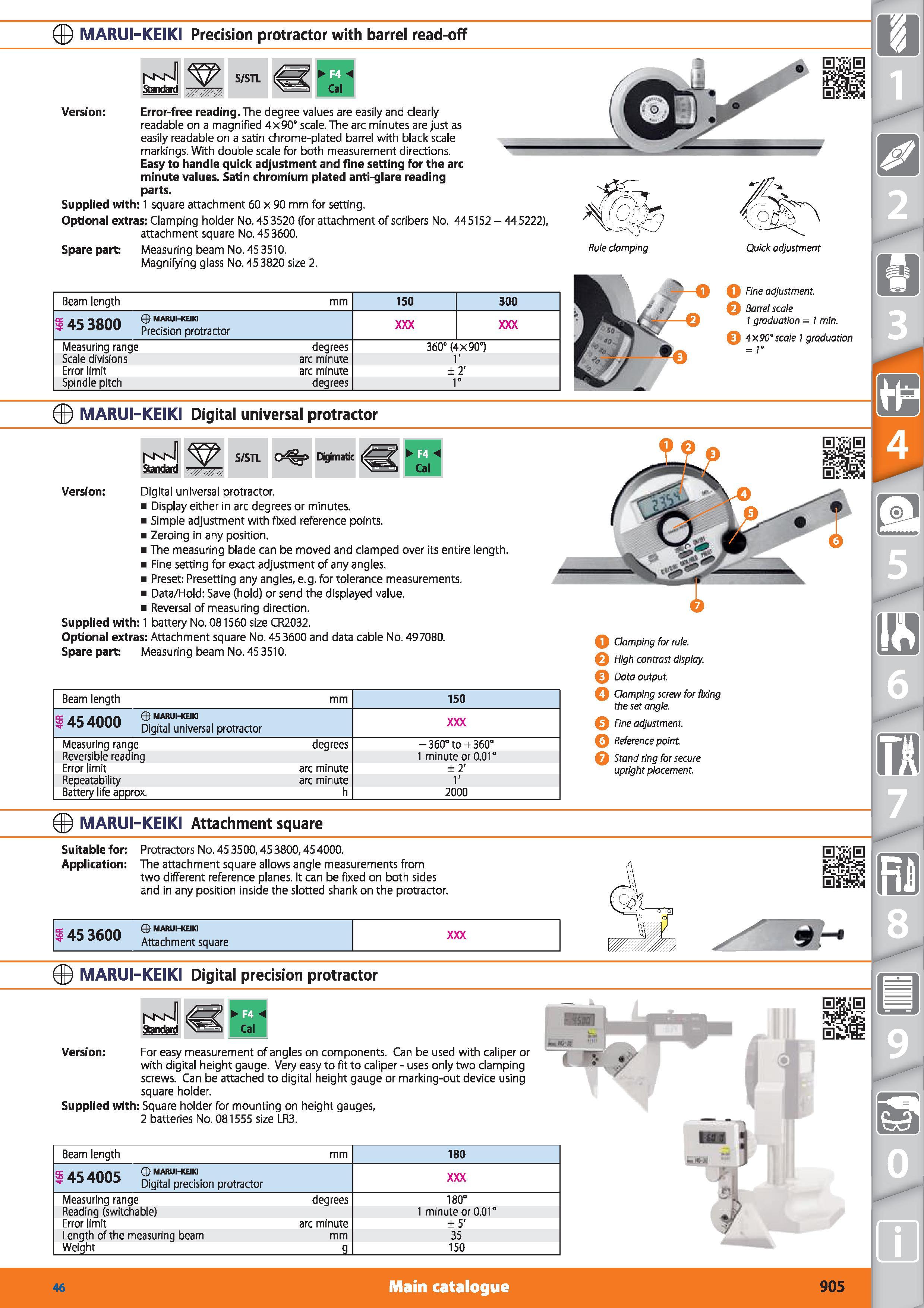

MARUI-KEIKI Precision protractor with barrel read-off Standard S/STL Version Error-free reading. The degree values are easily and clearly readable on a magnified 4x90° scale. The arc minutes are just as easily readable on a satin chrome-plated barrel with black scale markings. With double scale for both measurement directions. Easy to handle quick adjustment and fine setting for the arc minute values. Satin chromium plated anti-glare reading parts. Supplied with 1 square attachment 60 x 90 mm for setting. Optional extras Clamping holder No. 45 3520 (for attachment of scribers No. 445152 - 445222), attachment square No. 45 3600. Spare part Measuring beam No. 45 3510. Magnifying glass No. 45 3820 size 2. Rule clamping Beam length mm ISO 300 S 45 3800 Precision protractor Measuring range degrees 360° (4x90°) Scale divisions arc minute r Error limit arc minute ±2' Spindle pitch degrees 1° -o Quick adjustment o Fine adjustment Barrel scale 1 graduation 1 min. ( 4x90°scale I graduation 1° MARUI-KEIKI Digital universal protractor Standard S/STL Djgrnatk Version Digital universal protractor. Display either in arc degrees or minutes. Simple adjustment with fixed reference points. Zeroing in any position. The measuring blade can be moved and clamped over its entire length. Fine setting for exact adjustment of any angles. Preset Presetting any angles, e.g. for tolerance measurements. Data/Flold Save (hold) or send the displayed value. Reversal of measuring direction. Supplied with 1 battery No. 081560 size CR2032. Optional extras Attachment square No. 453600 and data cable No. 497080. Spare part Measuring beam No. 45 3510. MARUI-KEIKI Attachment square Suitable for Protractors No. 45 3500,45 3800,45 4000. Application The attachment square allows angle measurements from two different reference planes. It can be fixed on both sides and in any position inside the slotted shank on the protractor. 1453600 MARUI-KEIKI Attachment square MARUI-KEIKI Digital precision protractor Beam length mm 150 S 45 4000 MARJ -KEIKI Digital universal protractor Measuring range degrees -360° to+360° Reversible reading 1 minute or 0.01° Error limit arc minute ±2' Repeatability arc minute 1' Battery life approx h 2000 Q Clamping for rule. Q High contrast display. Q Data output. Q Clamping screw for fixing the set angle. Fine adjustment. 0 Reference point. Q Stand ring for secure upright placement. 6 s VK J H Standard Cal Version For easy measurement of angles on components. Can be used with caliper or with digital height gauge. Very easy to fit to caliper - uses only two clamping screws. Can be attached to digital height gauge or marking-out device using square holder. Supplied with Square holder for mounting on height gauges, 2 batteries No. 081555 size LR3. Beam length mm 180 S 45 4005 MMU -KEIKI Digital precision protractor Measuring range degrees 180° Reading (switchable) 1 minute or 0.01° Error limit arc minute ±5' Length of the measuring beam mm 35 Weight g 150 46 Main catalogue
