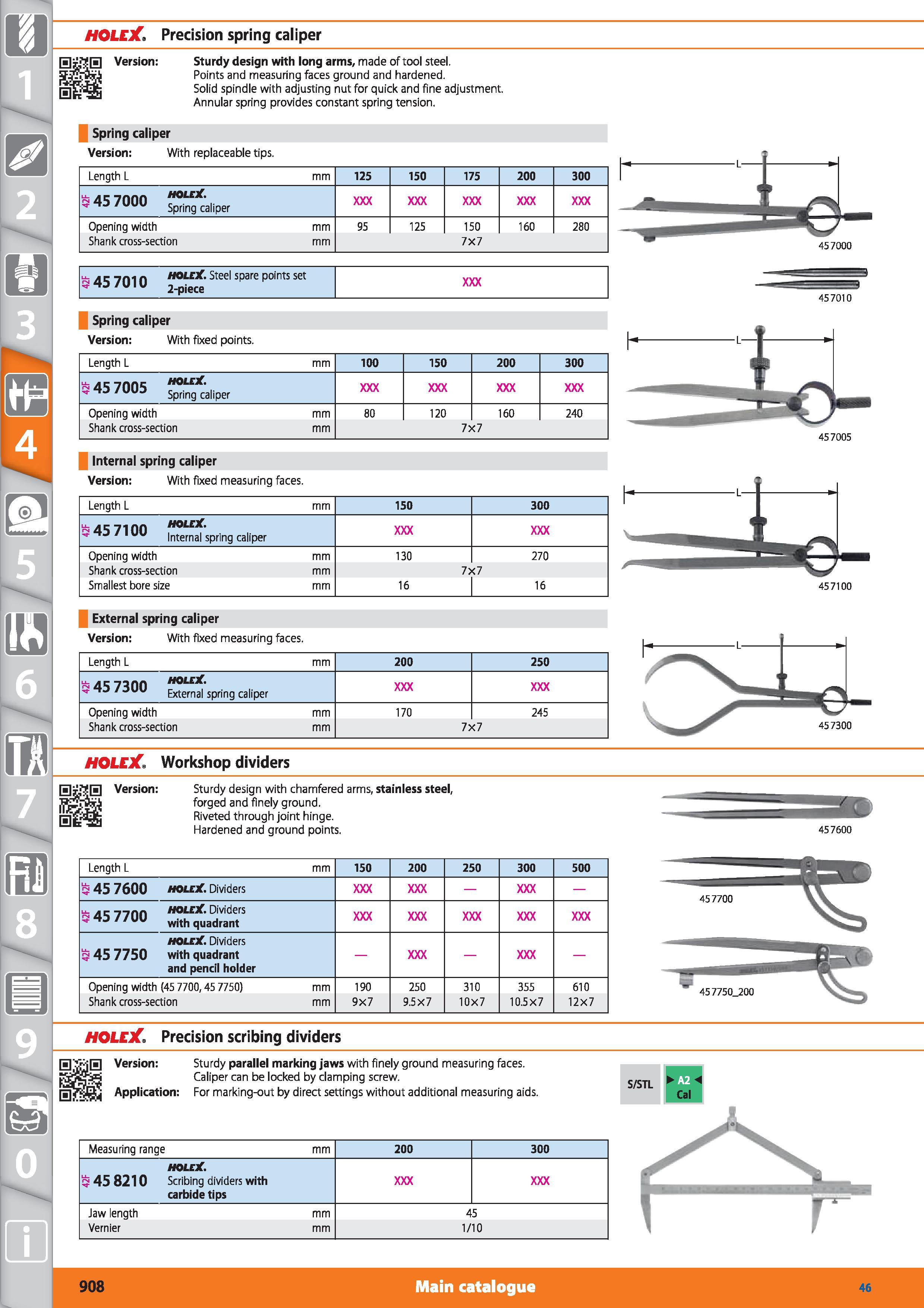

1 HOLEX Precision spring caliper Version Sturdy design with long arms, made of tool steel. IjSwi Points and measuring faces ground and hardened. Solid spindle with adjusting nut for quick and fine adjustment. Annular spring provides constant spring tension. Spring caliper Version With replaceable tips. Length L mm 125 150 175 200 300 3 45 7000 Spring caliper Opening width mm 95 125 150 160 280 Shank cross-section mm 7X7 i 457010 HOLEX Steel spare points set 2-piece Spring caliper Version With fixed points. Length L mm 100 150 200 300 S 45 7005 , Spring caliper Opening width mm 80 120 160 240 Shank cross-section mm 7X7 Internal spring caliper Version With fixed measuring faces. Length L mm 150 300 45 7100 HOLEX Internal spring caliper Opening width mm 130 270 Shank cross-section mm 7X7 Smallest bore size mm 16 16 m External spring caliper Version With fixed measuring faces. Length L mm 200 250 S 45 7300 External spring caliper Opening width mm 170 245 Shank cross-section mm 7X7 457005 457100 457300 HOLEX Workshop dividers 07,;' 0 Version Sturdy design with chamfered arms, stainless steel, forged and finely ground. SfcNifi Riveted through joint hinge. Hardened and ground points. Length L mm 150 200 250 300 500 45 7600 HOLEX Dividers 5 45 7700 HOLEX Dividers with quadrant 45 7750 HOLEX Dividers with quadrant and pencil holder Opening width (45 7700,45 7750) mm 190 250 310 355 610 Shank cross-section mm 9X7 9.5X7 10X7 10.5X7 12X7 457600 45 7750_200 HOLEX Precision scribing dividers :- 0 Version Sturdy parallel marking jaws with finely ground measuring faces. Caliper can be locked by clamping screw. S/STL A2 , Application For marking-out by direct settings without additional measuring aids. Measuring range mm 200 300 HOLEX Qi 45 8210 Scribing dividers with carbide tips Jaw length mm 45 Vernier mm 1/10 457700 908 Main catalogue Hoffmann Group 46
