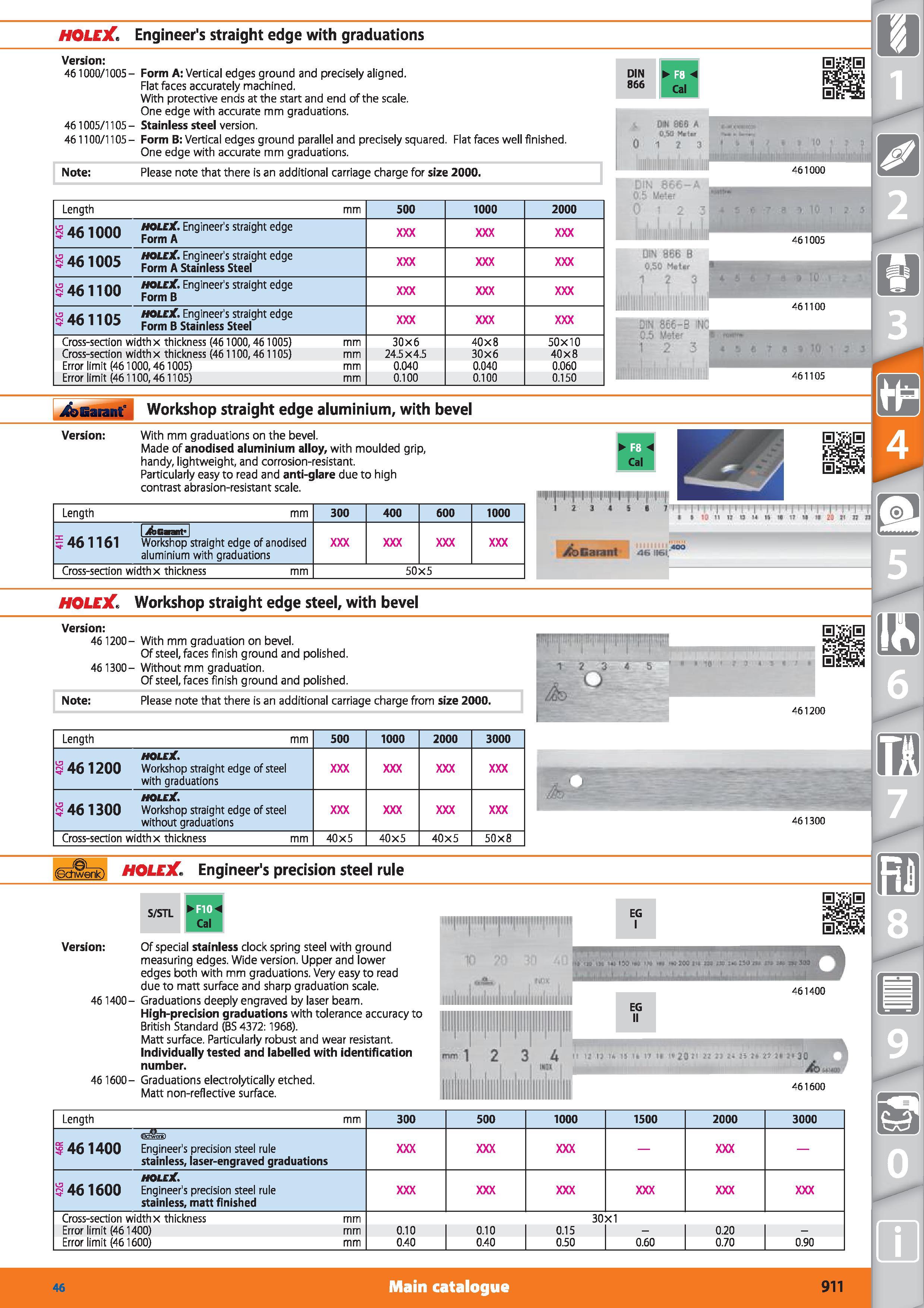

HOLEX Engineer's straight edge with graduations Version 461000/1005- Form A Vertical edges ground and precisely aligned. Flat faces accurately machined. With protective ends at the start and end of the scale. One edge with accurate mm graduations. 46 1005/1105 - Stainless steel version. 461100/1105- Form B Vertical edges ground parallel and precisely squared. Flat faces well finished. One edge with accurate mm graduations. DIN 866 ffl < Cal 05 0 Note Please note that there is an additional carriage charge for size 2000, Length mm 500 1000 2000 -461000 holeX. Engineer's straight edge Form A 461005 holcX. Engineer's straight edge Form A Stainless Steel 461100 holcX. Engineer's straight edge Form B 461105 holcX. Engineer's straight edge Form B Stainless Steel Cross-section widthx thickness (461000,461005) mm 30x6 40x8 50x10 Cross-section width x thickness (461100,461105) mm 24.5x4.5 30x6 40x8 Error limit (461000,461005) mm 0.040 0.040 0.060 Error limit (461100,461105) mm 0.100 0.100 0.150 Workshop straight edge aluminium, with bevel Version With mm graduations on the bevel. Made of anodised aluminium alloy, with moulded grip, handy, lightweight, and corrosion-resistant. Particularly easy to read and anti-glare due to high contrast abrasion-resistant scale. Length mm 300 400 600 1000 461161 (ifeGrait1' Workshop straight edge of anodised aluminium with graduations Cross-section width x thickness mm 50x5 HOLEJCWorkshop straight edge steel, with bevel Version 46 1200- With mm graduation on bevel. Of steel, faces finish ground and polished. 46 1300- Without mm graduation. Of steel, faces finish ground and polished. Note Please note that there is an additional carriage charge from size 2000. Length mm 500 1000 2000 3000 461200 hqleX. Workshop straight edge of steel with graduations 461300 hqleX. Workshop straight edge of steel without graduations Cross-section width x thickness mm 40x5 40x5 40x5 50x8 HOLEX Engineer's precision steel rule S/STL F10 Cal Version Of special stainless clock spring steel with ground measuring edges. Wide version. Upper and lower edges both with mm graduations. Very easy to read due to matt surface and sharp graduation scale. 46 1400- Graduations deeply engraved by laser beam. High-precision graduations with tolerance accuracy to British Standard (BS 4372:1968). Matt surface. Particularly robust and wear resistant. Individually tested and labelled with identification number. & lllllllllllllllllllllllillllllllllllllllllll mir 1 14 II U 17 20 I 46 1600- Graduations electrolytically etched. Matt non-reflective surface. iiiiiiiiiiiiiiiliiiu 461600 Length mm 300 500 1000 1500 2000 3000 0 46 1400 Engineer's precision steel rule stainless, laser-engraved graduations hqleX. 46 1600 Engineer's precision steel rule stainless, matt finished Cross-section width x thickness mm 30X1 Error limit (461400) mm 0.10 0.10 0.15 - 0.20 - Error limit (461600) mm 0.40 0.40 0.50 0.60 0.70 0.90 Main catalogue Hoffmann Group 46 911
