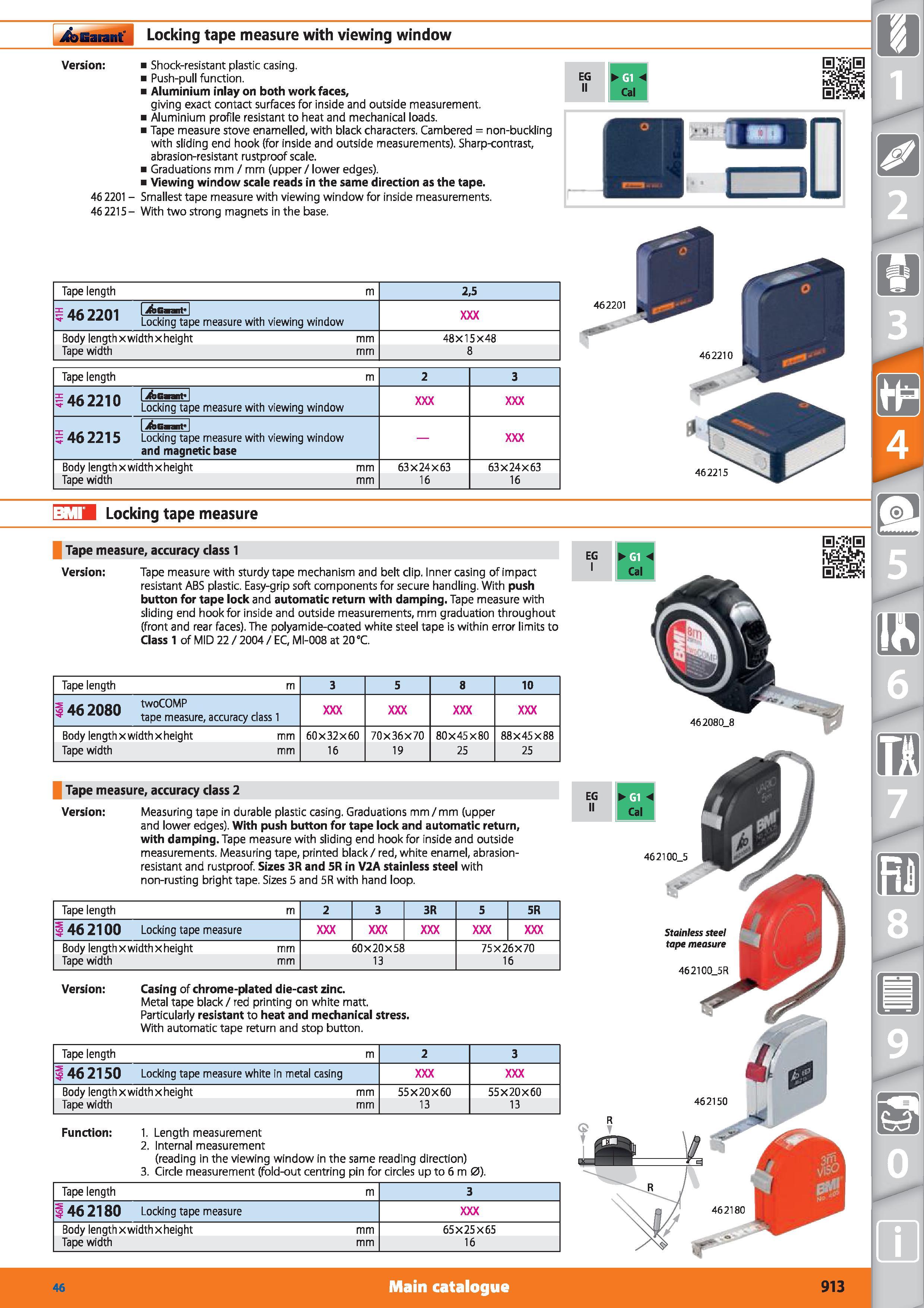

Garant Locking tape measure with viewing window Version Shock-resistant plastic casing. Push-pull function. Aluminium inlay on both work faces, giving exact contact surfaces for inside and outside measurement. Aluminium profile resistant to heat and mechanical loads. Tape measure stove enamelled, with black characters. Cambered non-buckling with sliding end hook (for inside and outside measurements). Sharp-contrast, abrasion-resistant rustproof scale. Graduations mm / mm (upper / lower edges). Viewing window scale reads in the same direction as the tape. 46 2201 - Smallest tape measure with viewing window for inside measurements. 46 2215 - With two strong magnets in the base. Tape length m 2,5 -462201 Locking tape measure with viewing window Body lengthxwidthxheight mm 48x15x48 Tape width mm 8 Tape length m 2 3 '462210 li&Grait l Locking tape measure with viewing window i 462215 lifeGmnt” Locking tape measure with viewing window and magnetic base Body lengthxwidthxheight mm 63x24x63 63x24x63 Tape width mm 16 16 Locking tape measure Tape measure, accuracy class 1 Version Tape measure with sturdy tape mechanism and belt clip. Inner casing of impact resistant ABS plastic. Easy-grip soft components for secure handling. With push button for tape lock and automatic return with damping. Tape measure with sliding end hook for inside and outside measurements, mm graduation throughout (front and rear faces). The polyamide-coated white steel tape is within error limits to Class 1 of MID 22 / 2004 / EC, MI-008 at 20°C. EG H 1 Cal 0 0 Tape length m 3 5 8 10 1462080 JwoCOMP - tape measure, accuracy class 1 Body lengthxwidthxheight mm 60x32x60 70x36x70 80x45 x 80 88x45 x 88 Tape width mm 16 19 25 25 462080_8 Tape measure, accuracy class 2 Version Measuring tape in durable plastic casing. Graduations mm /mm (upper and lower edges). With push button for tape lock and automatic return, with damping. Tape measure with sliding end hook for inside and outside measurements. Measuring tape, printed black/ red, white enamel, abrasion-resistant and rustproof. Sizes 3R and 5R in V2A stainless steel with non-rusting bright tape. Sizes 5 and 5R with hand loop. Tape length m 2 3 3R 5 5R 1 46 2100 Locking tape measure Body lengthxwidthxheight mm 60X20X58 75X26X70 Tape width mm 13 16 Version Casing of chrome-plated die-cast zinc. Metal tape black / red printing on white matt. Particularly resistant to heat and mechanical stress. With automatic tape return and stop button. Tape length m 2 3 1462150 Locking tape measure white in metal casing Body lengthxwidthxheight mm 55X20X60 55X20X60 Tape width mm 13 13 Function 1. Length measurement 2. Internal measurement (reading in the viewing window in the same reading direction) 3. Circle measurement (fold-out centring pin for circles up to 6 m 0). Tape length m 3 1462180 Locking tape measure Body lengthxwidthxheight mm 65X25X65 Tape width mm 16 462100_5 462180 Stainless steel tape measure 462100_5R 462150 Main catalogue Hoffmann Group 46 913
