915 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.915

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 915 0915 ENG Lab2u

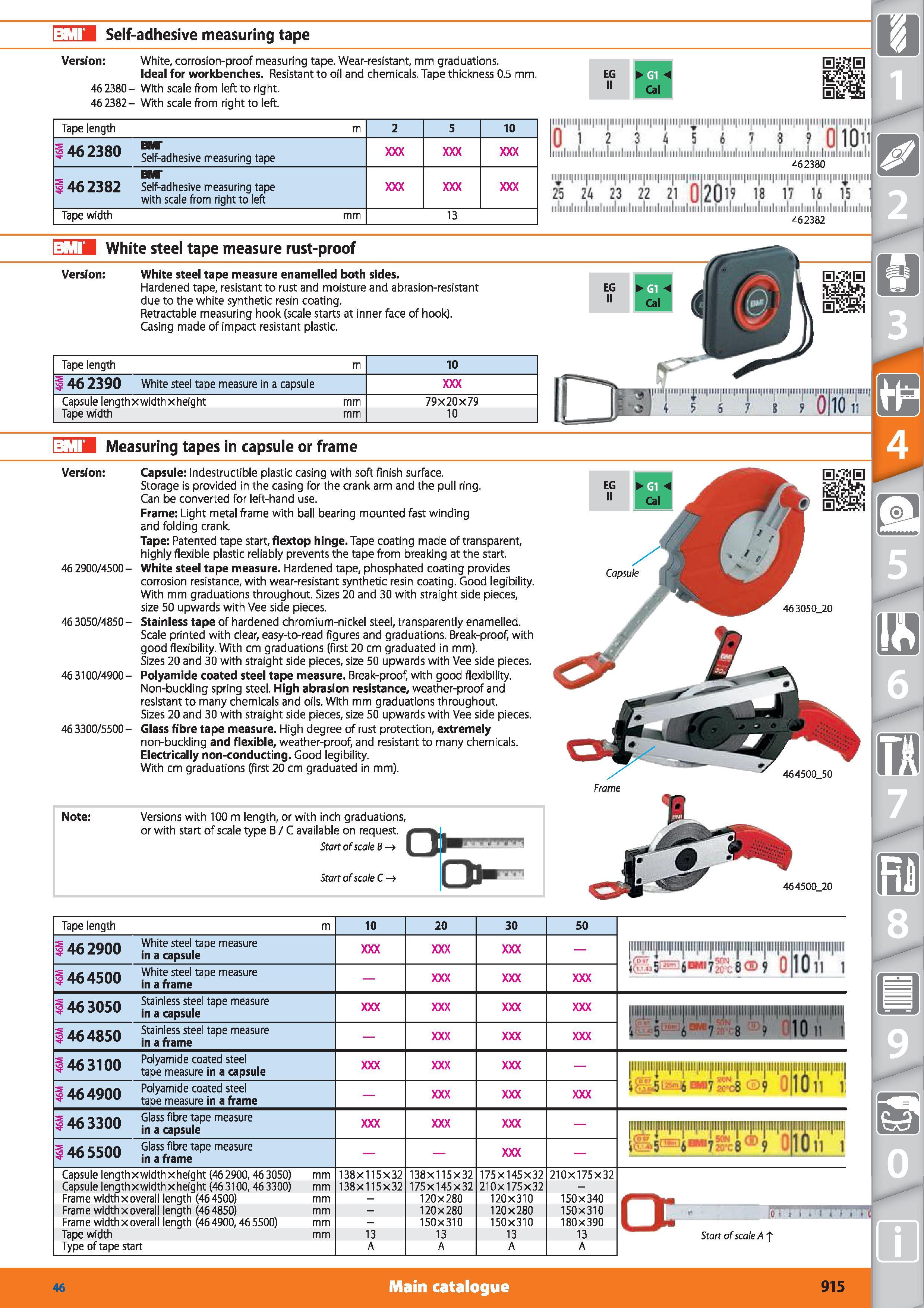

Self-adhesive measuring tape Version White, corrosion-proof measuring tape. Wear-resistant, mm graduations. Ideal for workbenches. Resistant to oil and chemicals. Tape thickness 0.5 mm. 46 2380- With scale from left to right. 46 2382- With scale from right to left. EG II Tape length m 2 5 10 1462380 BNT Self-adhesive measuring tape 1462382 BNT Self-adhesive measuring tape with scale from right to left Tape width mm 13 462382 White steel tape measure rust-proof Version White steel tape measure enamelled both sides. Hardened tape, resistant to rust and moisture and abrasion-resistant due to the white synthetic resin coating. Retractable measuring hook (scale starts at inner face of hook). Casing made of impact resistant plastic. Tape length m 10 1 46 2390 White steel tape measure in a capsule Capsule lengthxwidthxheight mm 79X20X79 Tape width mm 10 -:',\U Measuring tapes in capsule or frame Version Capsule Indestructible plastic casing with soft finish surface. Storage is provided in the casing for the crank arm and the pull ring. Can be converted for left-hand use. Frame Light metal frame with ball bearing mounted fast winding and folding crank Tape Patented tape start, flextop hinge. Tape coating made of transparent, highly flexible plastic reliably prevents the tape from breaking at the start. 46 2900/4500 - White steel tape measure. Hardened tape, phosphated coating provides corrosion resistance, with wear-resistant synthetic resin coating. Good legibility. With mm graduations throughout. Sizes 20 and 30 with straight side pieces, size 50 upwards with Vee side pieces. 46 3050/4850 - Stainless tape of hardened chromium-nickel steel, transparently enamelled. Scale printed with clear, easy-to-read figures and graduations. Break-proof, with good flexibility. With cm graduations (first 20 cm graduated in mm). Sizes 20 and 30 with straight side pieces, size 50 upwards with Vee side pieces. 46 3100/4900- Polyamide coated steel tape measure. Break-proof, with good flexibility. Non-buckling spring steel. High abrasion resistance, weather-proof and resistant to many chemicals and oils. With mm graduations throughout. Sizes 20 and 30 with straight side pieces, size 50 upwards with Vee side pieces. 46 3300/5500 - Glass fibre tape measure. High degree of rust protection, extremely non-buckling and flexible, weather-proof, and resistant to many chemicals. Electrically non-conducting. Good legibility. With cm graduations (first 20 cm graduated in mm). Note Versions with 100 m length, or with inch graduations, or with start of scale type B / C available on request. Start of scale 8 > Start of scale C - i 464500_20 Tape length m 10 20 30 50 l ll l ll llllillll llll llli llll im 1 .5 1-7 8 011611 1 s OQfin White steel tape measure K> Z7UU jn a jgpjuie 3 46 45(10 white steel tape measure TU TJVV jn a frame s ac. men Stainless steel tape measure 3 46 3050 inacapsu e i 5 6 7 8 9 ifffi s inert Stainless steel tape measure 46 4850 inaframe s 46 3100 Polyamide coated steel 3 uu tape measure jn a capsule llll illl llii llil illl lili lili iiii iiii iiii iiil iin iiiniiii ini iiii luii 1 3 46 4900 Po yam'de coated steel tape measure in a frame 15 7 8 9 0 s iinn Glass fibre tape measure 46 3300 in a capsule ninin ii ini nniiin iniiiiinnii i ii ini ini 1 /7t I 1 c/Wi 1 1 A nmrnrpiipii s if- rrnn Glass fibre tape measure KJ 33UU jn a frame Capsule lengthxwidthxheight (462900,463050) mm Capsule lengthxwidthxheight (463100,463300) mm 138x115x32 138x115x32 138x115x32 175x145x32 175x145x32 210x175x32 210x175x32 Frame widthxoverall length (464500) mm - 120x280 120x310 150x340 Frame widthxoverall length (464850) mm Frame widthxoverall length (464900,465500) mm Tape width mm - 120x280 150x310 13 120x280 150x310 13 150x310 180x390 13 1 - oTT i r 13 Start of scale A f Type of tape start A A A A Main catalogue Hoffmann Group 46 915
