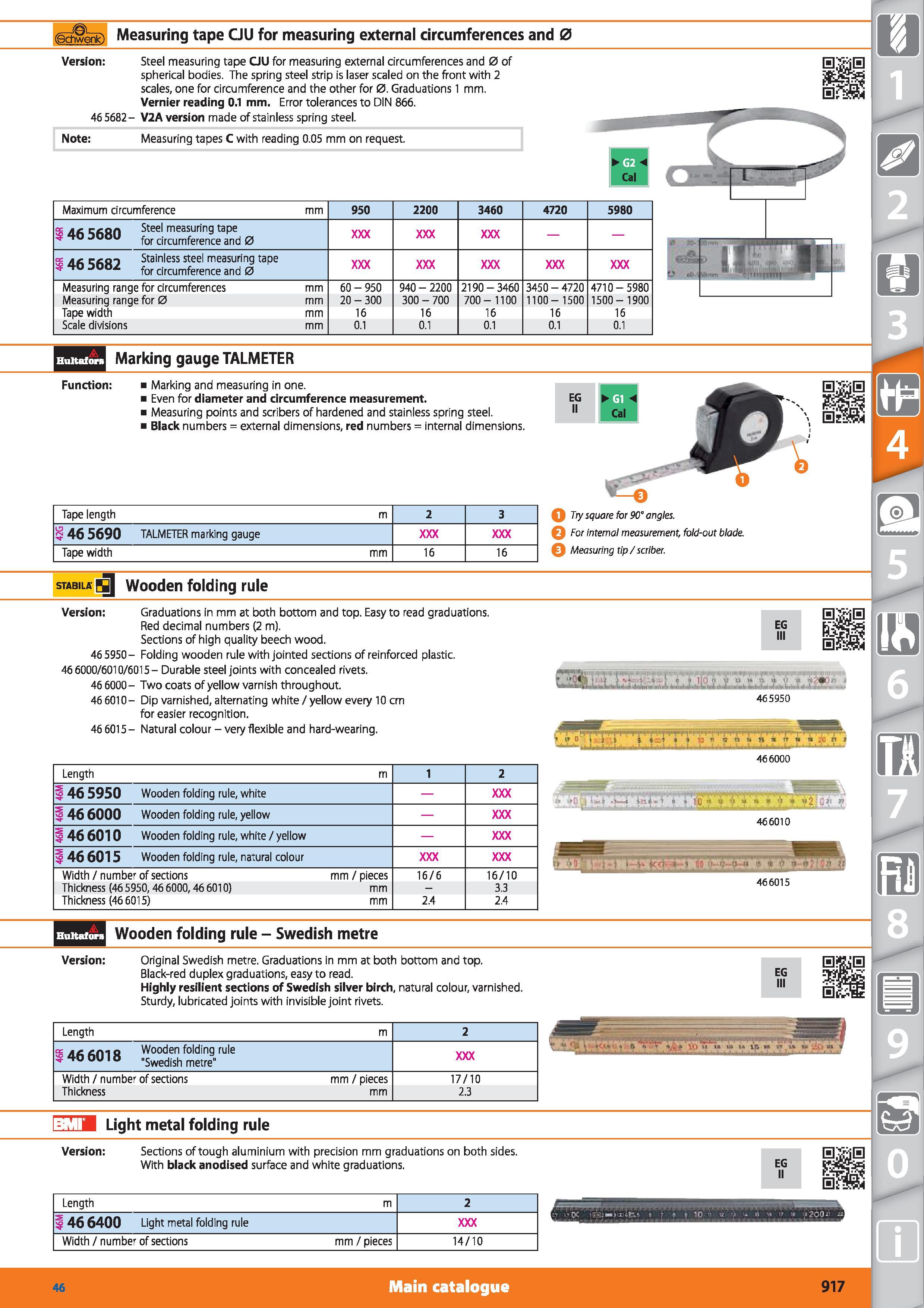

Measuring tape CJU for measuring external circumferences and 0 Version Steel measuring tape CJU for measuring external circumferences and 0 of spherical bodies. The spring steel strip is laser scaled on the front with 2 scales, one for circumference and the other for 0. Graduations 1 mm. Vernier reading 0.1 mm. Error tolerances to DIN 866. 46 5682- V2A version made of stainless spring steel. Note Measuring tapes C with reading 0.05 mm on request. 1465680 feel measuring tape -rw for circumference and 0 Maximum circumference 1465682 Stainless steel measuring tape for circumference and 0 Measuring range for circumferences Measuring range for 0 Tape width Scale divisions mm 950 60 - 950 20 - 300 16 0.1 2200 940 - 2200 300 - 700 16 0.1 3460 2190 - 3460 700- 1100 16 0.1 4720 3450 - 4720 1100- 1500 16 0.1 5980 4710-5980 1500- 1900 16 0.1 Marking gauge TALMETER Function Marking and measuring in one. Even for diameter and circumference measurement. Measuring points and scribers of hardened and stainless spring steel. Black numbers external dimensions, red numbers internal dimensions. Tape length m 2 3 46 5690 TALMETER marking gauge Tape width mm 16 16 Q Try square for 90° angles. Q For Internal measurement, fold-out blade. Measuring tip /scriber. STABILA 3 Wooden folding rule Version Graduations in mm at both bottom and top. Easy to read graduations. Red decimal numbers (2 m). Sections of high quality beech wood. 46 5950- Folding wooden rule with jointed sections of reinforced plastic. 466000/6010/6015- Durable steel joints with concealed rivets. 46 6000- Two coats of yellow varnish throughout. 46 6010- Dip varnished, alternating white/yellow every 10 cm for easier recognition. 466015- Natural colour - very flexible and hard-wearing. EG III c .'i ii u u it w .i I kmsliiiik'Lftii lilLiiaktuklaiJjIvkiniirf'iAiiiiK 465950 Length m 1 2 1465950 Wooden folding rule, white 1466000 Wooden folding rule, yellow 1466010 Wooden folding rule, white / yellow 1466015 Wooden folding rule, natural colour Width / number of sections mm / pieces 16/6 16/10 Thickness (46 5950,46 6000,46 6010) mm - 3.3 Thickness (46 6015) mm 2.4 2.4 1 I f Mil FI I" I H T1 I 'T< I 'T1 T- T r7 it o t i t 1 i yw o n m n tt i 466000 -7-' - V 10 t W M II II 1 2 0 1 r 466010 466015 Wooden folding rule - Swedish metre Version Original Swedish metre. Graduations in mm at both bottom and top. Black-red duplex graduations, easy to read. Highly resilient sections of Swedish silver birch, natural colour, varnished. Sturdy, lubricated joints with invisible joint rivets. EG III Length m 2 i 46 6018 Wooden folding rule "Swedish metre" Width / number of sections mm / pieces 17/10 Thickness mm 2.3 Light metal folding rule Version Sections of tough aluminium with precision mm graduations on both sides. With black anodised surface and white graduations. Length m 2 j 46 6400 Light metal folding rule Width / number of sections mm / pieces 14/10 :> :,x 10 ;u. Main catalogue Hoffmann Group 46 917
