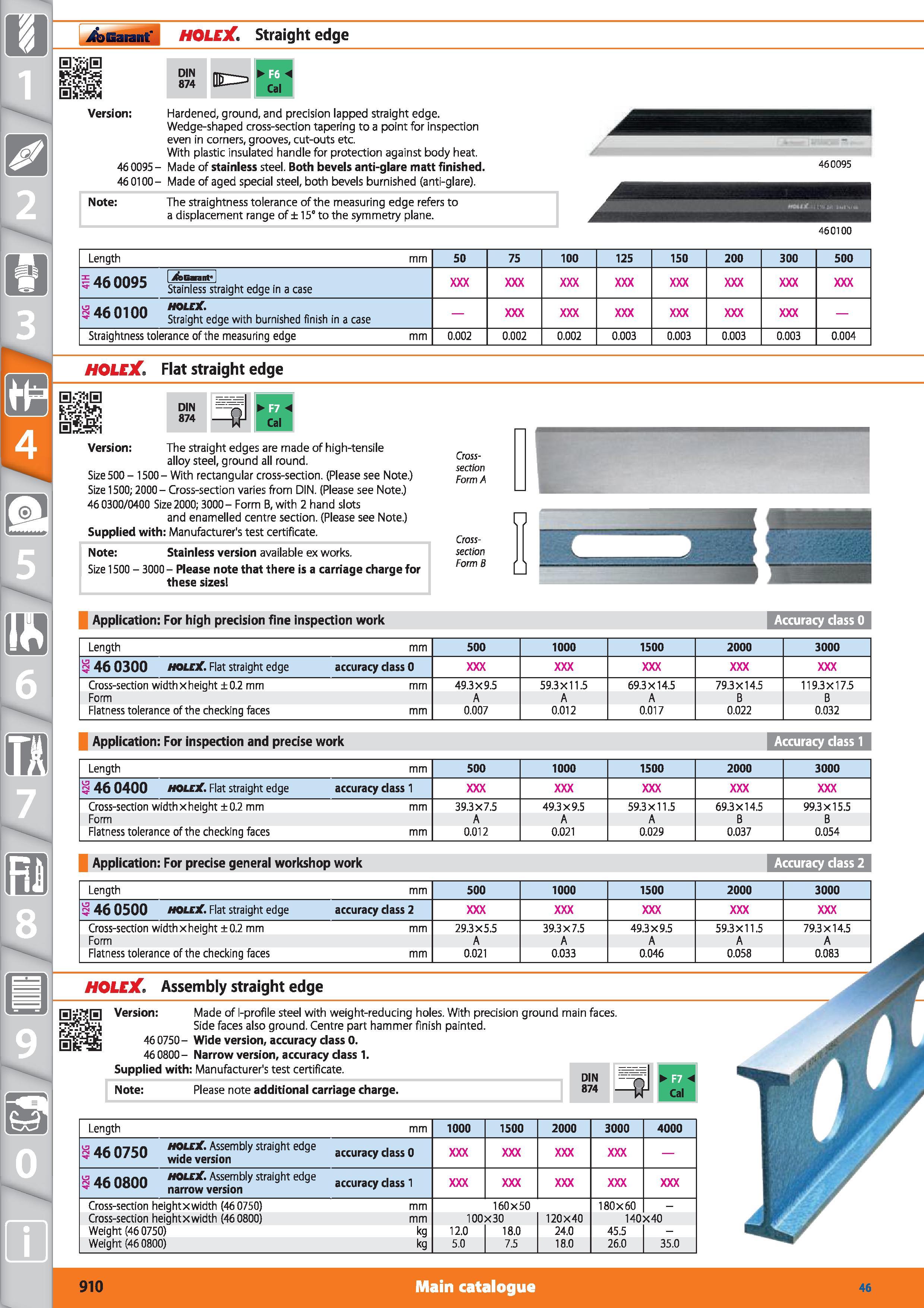

/bGarant HOLEX Straight edge DIN F6 874 UJJ J Cal Version Hardened, ground, and precision lapped straight edge. Wedge-shaped cross-section tapering to a point for inspection even in corners, grooves, cut-outs etc. With plastic insulated handle for protection against body heat. 46 0095 - Made of stainless steel. Both bevels anti-glare matt finished. 46 0100- Made of aged special steel, both bevels burnished (anti-glare). 460095 Note The straightness tolerance of the measuring edge refers to a displacement range of ± 15° to the symmetry plane. 460100 Length mm 50 75 100 125 150 200 300 500 5 46 0095 1 J&Gaant" Stainless straight edge in a case 460100 HOLEX Straight edge with burnished finish in a case Straightness tolerance of the measuring edge mm 0.002 0.002 0.002 0.003 0.003 0.003 0.003 0.004 HOLEX Flat straight edge aluEi m DIN 874 2f7 o Version The straight edges are made of high-tensile alloy steel, ground all round. Size 500 - 1500 - With rectangular cross-section. (Please see Note.) Size 1500; 2000 - Cross-section varies from DIN. (Please see Note.) 460300/0400 Size 2000; 3000 - Form B, with 2 hand slots and enamelled centre section. (Please see Note.) Supplied with Manufacturer's test certificate. Note Stainless version available ex works. Size 1500 - 3000 - Please note that there is a carriage charge for these sizes Cross-section Form A Cross-section Form B IU to Application For high precision fine inspection work Accuracy class El Length mm 500 1000 1500 2000 3000 46 0300 HOLEX Flat straight edge accuracy class 0 Cross-section widthxheight ±0.2 mm 49.3X9.5 59.3X11.5 69.3X14.5 79.3X14.5 119.3X17.5 Form A A A B B Flatness tolerance of the checking faces mm 0.007 0.012 0.017 0.022 0.032 Application For inspection and precise work Accuracy class 1 Length mm 500 1000 1500 2000 3000 46 0400 HOLEX Flat straight edge accuracy class 1 Cross-section widthxheight ±0.2 mm 39.3x7.5 49.3x9.5 59.3x11.5 69.3x14.5 99.3x15.5 Form A A A B B Flatness tolerance of the checking faces mm 0.012 0.021 0.029 0.037 0.054 Application For precise general workshop work Accuracy class 2 Length i 46 0500 HOLEX Flat straight edge accuracy class 2 Cross-section widthxheight ±0.2 mm Form Flatness tolerance of the checking faces mm 500 29.3x5.5 A 0.021 1000 39.3x7.5 A 0.033 1500 49.3x9.5 A 0.046 2000 3000 HOLEX Assembly straight edge Made of l-profile steel with weight-reducing holes. With precision ground main faces Side faces also ground. Centre part hammer finish painted. 46 0750- Wide version, accuracy class 0. 46 0800 - Narrow version, accuracy class 1. Supplied with Manufacturer's test certificate. Note Please note additional carriage charge. DIN 874 Cal Length mm 1000 1500 2000 3000 4000 S 4ft H7Sn HOLEX Assembly straight edge - wide version accuracy class 0 H Aft nann HOLEX Assembly straight edge 3 40 UOUU narrow version accuracy class 1 Cross-section heightxwidth (460750) mm 160x50 180x60 - Cross-section heightx width (460800) mm 100X30 120X40 140X40 Weight (46 0750) kg 12.0 18.0 24.0 45.5 - Weight (460800) kg 5.0 7.5 18.0 26.0 35.0 59.3x11.5 A 79.3x14.5 A 910 Main catalogue Hoffmann Group 46
