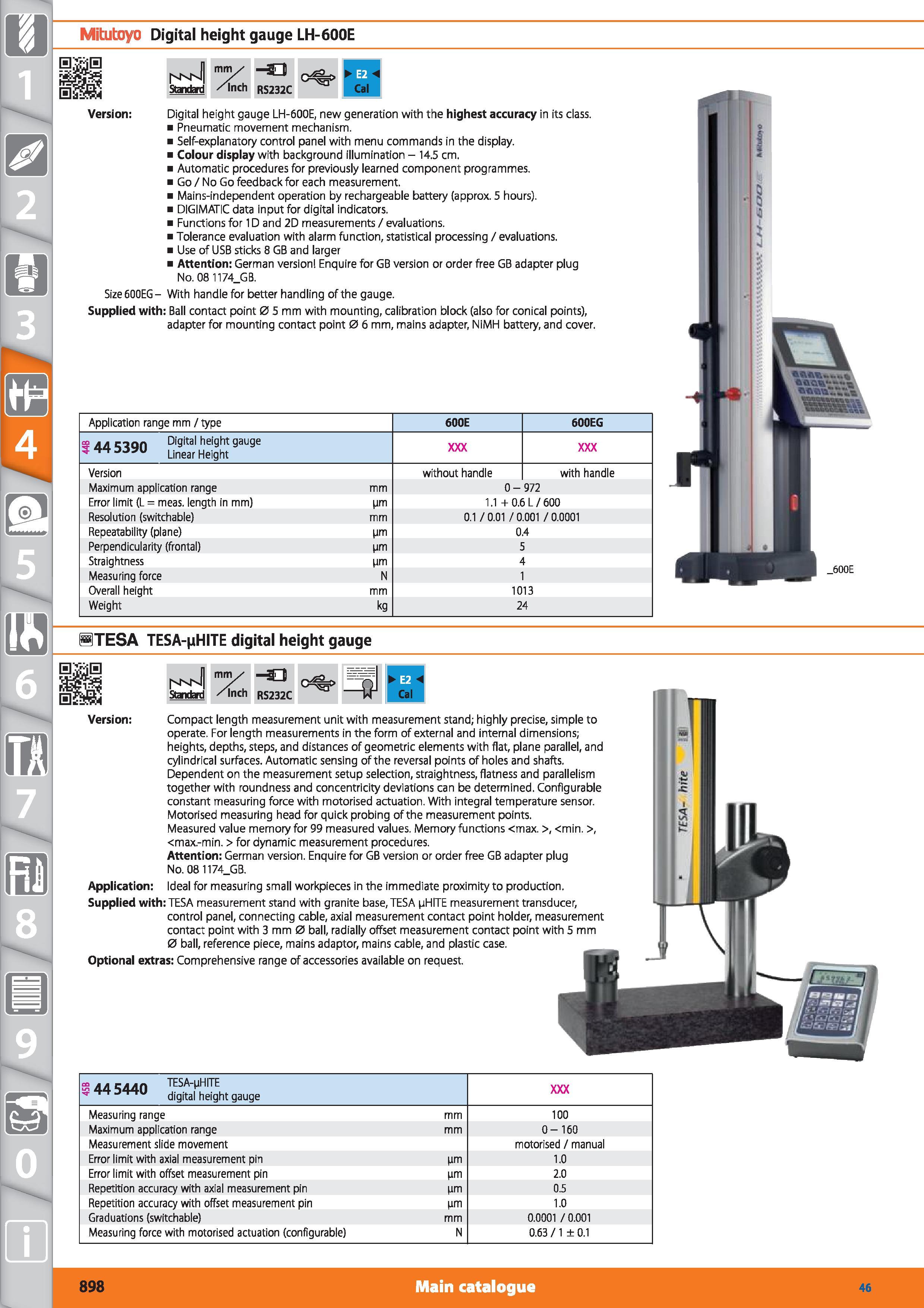

Mitutoyo Digital height gauge LH-600E Standard mm/ /Inch RS232C Version Digital height gauge LH-600E, new generation with the highest accuracy in its class. Pneumatic movement mechanism. Self-explanatory control panel with menu commands in the display. Colour display with background illumination - 14.5 cm. Automatic procedures for previously learned component programmes. Go / No Go feedback for each measurement. Mains-independent operation by rechargeable battery (approx. 5 hours). DIGIMATIC data input for digital indicators. Functions for 1D and 2D measurements / evaluations. Tolerance evaluation with alarm function, statistical processing / evaluations. Use of USB sticks 8 GB and larger Attention German version Enquire for GB version or order free GB adapter plug No. 08 1174_G B. Size600EG- With handle for better handling of the gauge. Supplied with Ball contact point 0 5 mm with mounting, calibration block (also for conical points), adapter for mounting contact point 0 6 mm, mains adapter, NiMH battery, and cover. Application range mm / type 1445390 Digital height gauge Linear Height Version Maximum application range Error limit (L meas. length in mm) Resolution (switchable) Repeatability (plane) Perpendicularity (frontal) Straightness Measuring force Overall height Weight mm nm mm nm nm nm N mm kg 600E 600EG without handle with handle 0-972 1.1 +0.6L/600 0.1 /0.01 / 0.001 / 0.0001 0.4 5 4 1 1013 24 BTESA TESA- iHITE digital height gauge a 44 5440 tesa-mhite digital height gauge Measuring range mm 100 Maximum application range mm 0-160 Measurement slide movement motorised / manual Error limit with axial measurement pin nm 1.0 Error limit with offset measurement pin nm 2.0 Repetition accuracy with axial measurement pin nm 0.5 Repetition accuracy with offset measurement pin nm 1.0 Graduations (switchable) mm 0.0001 / 0.001 Measuring force with motorised actuation (configurable) N 0.63 /1 ± 0.1 898 Main catalogue Hoffmann Group 46 Version Compact length measurement unit with measurement stand; highly precise, simple to operate. For length measurements in the form of external and internal dimensions; heights, depths, steps, and distances of geometric elements with flat, plane parallel, and cylindrical surfaces. Automatic sensing of the reversal points of holes and shafts. Dependent on the measurement setup selection, straightness, flatness and parallelism together with roundness and concentricity deviations can be determined. Configurable constant measuring force with motorised actuation. With integral temperature sensor. Motorised measuring head for quick probing of the measurement points. Measured value memory for 99 measured values. Memory functions , , for dynamic measurement procedures. Attention German version. Enquire for GB version or order free GB adapter plug No. 08 1174_GB. Application Ideal for measuring small workpieces in the immediate proximity to production. Supplied with TESA measurement stand with granite base, TESA HITE measurement transducer, control panel, connecting cable, axial measurement contact point holder, measurement contact point with 3 mm 0 ball, radially offset measurement contact point with 5 mm 0 ball, reference piece, mains adaptor, mains cable, and plastic case. Optional extras Comprehensive range of accessories available on request.
