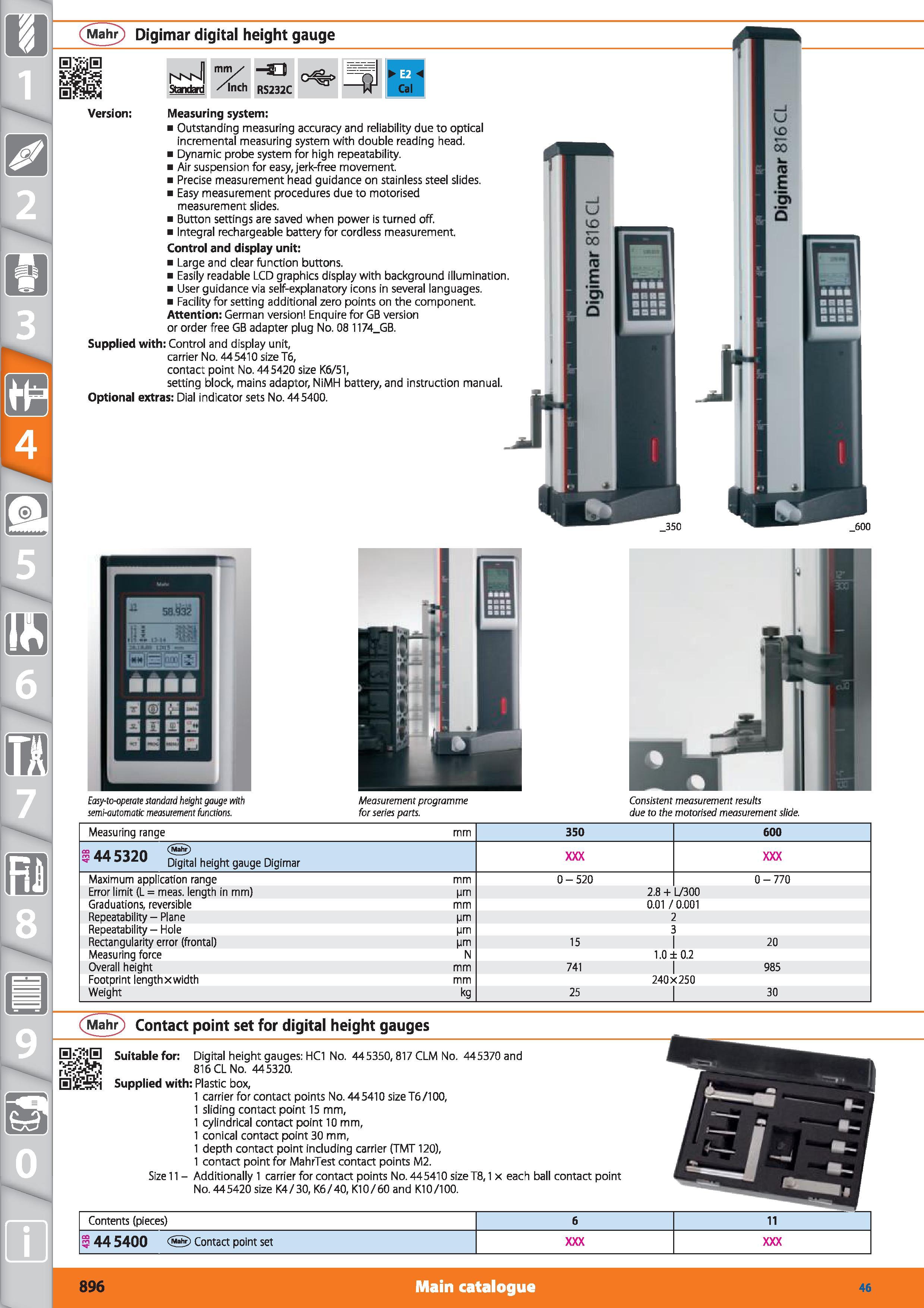

Mahr Digimar digital height gauge Standard mm/ /Inch RS232C a Cal Version Measuring system Outstanding measuring accuracy and reliability due to optical incremental measuring system with double reading head. Dynamic probe system for high repeatability. Air suspension for easy, jerk-free movement. Precise measurement head guidance on stainless steel slides. Easy measurement procedures due to motorised measurement slides. Button settings are saved when power is turned off. Integral rechargeable battery for cordless measurement. Control and display unit Large and clear function buttons. Easily readable LCD graphics display with background illumination. User guidance via self-explanatory icons in several languages. Facility for setting additional zero points on the component. Attention German version Enquire for GB version or order free GB adapter plug No. 08 1174_GB. Supplied with Control and display unit, carrier No. 445410 size T6, contact point No. 445420 size K6/51, setting block, mains adaptor, NiMH battery, and instruction manual. Optional extras Dial indicator sets No. 445400. Measuring range 350 600 1445320 Mahr Digital height gauge Digimar Maximum application range Error limit (L meas. length in mm) Graduations, reversible Repeatability - Plane Repeatability - Hole Rectangularity error (frontal) Measuring force Overall height Footprint lengthxwidth Weight mm (jm mm jm jjm jm N mm kg 0-520 15 741 25 2.8 + U300 0.01 / 0.001 2 3 I 1.0 ±0.2 I 240x250 0-770 20 985 30 Mahr Contact point set for digital height gauges Suitablefor Digital height gauges HC1 No. 445350,817 CLM No. 445370 and 816 CL No. 445320. ESijSi Supplied with Plastic box, 1 carrier for contact points No. 445410 size T6/100, 1 sliding contact point 15 mm, 1 cylindrical contact point 10 mm, 1 conical contact point 30 mm, 1 depth contact point including carrier (TMT120), 1 contact point for MahrTest contact points M2. Size 11 - Additionally 1 carrier for contact points No. 445410 size T8,1 x each ball contact point No. 445420 size K4/30, K6/40, K10/60 and KlO/100. Contents (pieces) 6 11 9 44 5400 Contact point set 896 Main catalogue Hoffmann Group 46
