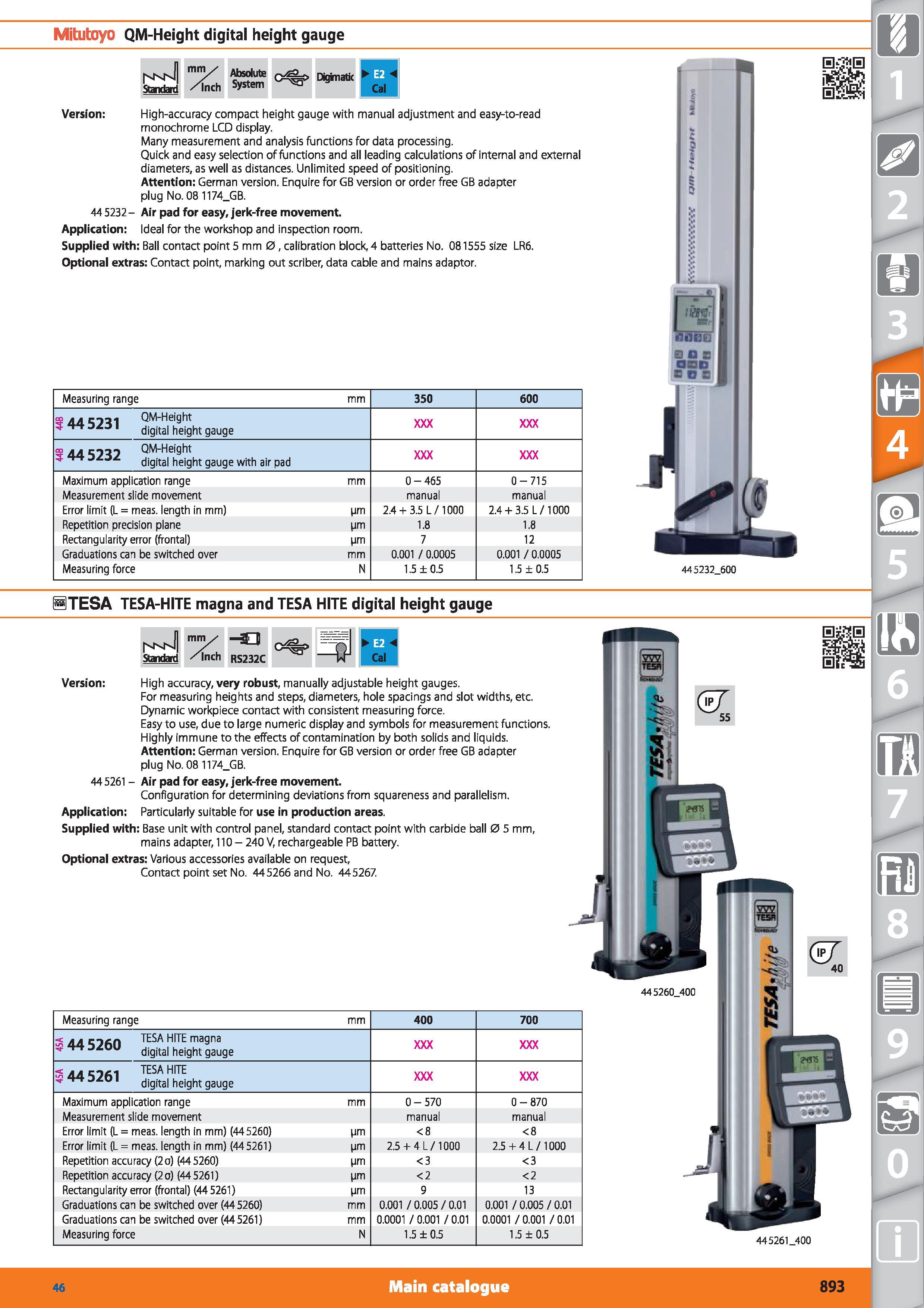

Mitutoyo QM-Height digital height gauge Standard mm /inch Absolute System C y> Digimatk Version High-accuracy compact height gauge with manual adjustment and easy to-read monochrome LCD display. Many measurement and analysis functions for data processing. Quick and easy selection of functions and all leading calculations of internal and external diameters, as well as distances. Unlimited speed of positioning. Attention German version. Enquire for GB version or order free GB adapter plug No. 08 1174_GB. 44 5232 - Air pad for easy, jerk-free movement. Application Ideal for the workshop and inspection room. Supplied with Ball contact point 5 mm 0, calibration block, 4 batteries No. 081555 size LR6. Optional extras Contact point, marking out scriber, data cable and mains adaptor. Measuring range mm 350 600 3 aa CT31 QM-Fleight 3- tt j digital height gauge 1 44 5232 QM-Height digital height gauge with air pad Maximum application range mm 0-465 0-715 Measurement slide movement manual manual Error limit (L meas. length in mm) 2.4 + 3.5 L/1000 2.4 + 3.5 L/1000 Repetition precision plane jm 1.8 1.8 Rectangularity error (frontal) 7 12 Graduations can be switched over mm 0.001 / 0.0005 0.001 /0.0005 Measuring force N 1.5 ±0.5 1.5 ±0.5 445232_600 BTESA TESA-HITE magna and TESA HITE digital height gauge vmJ Standard mmy /Inch RS232C Version High accuracy, very robust, manually adjustable height gauges. For measuring heights and steps, diameters, hole spacings and slot widths, etc. Dynamic workpiece contact with consistent measuring force. Easy to use, due to large numeric display and symbols for measurement functions. Highly immune to the effects of contamination by both solids and liquids. Attention German version. Enquire for GB version or order free GB adapter plug No. 08 1174_GB. 44 5261 - Air pad for easy, jerk-free movement. Configuration for determining deviations from squareness and parallelism. Application Particularly suitable for use in production areas. Supplied with Base unit with control panel, standard contact point with carbide ball 0 5 mm, mains adapter, 110 - 240 V, rechargeable PB battery. Optional extras Various accessories available on request. Contact point set No. 445266 and No. 445267. Measuring range mm 400 700 < i TESA HITE magna 445260 digital height gauge a 44 5261 TESAHITE digital height gauge Maximum application range mm 0-570 0-870 Measurement slide movement manual manual Error limit (L meas. length in mm) (445260) tjm <8 <8 Error limit (L meas. length in mm) (445261) (jm 2.5 + 4 L/1000 2.5 + 4 L / 1000 Repetition accuracy (2a) (445260) <3 <3 Repetition accuracy (2o) (445261) jm <2 <2 Rectangularity error (frontal) (44 5261) 9 13 Graduations can be switched over (445260) mm 0.001 / 0.005 / 0.01 0.001 / 0.005 / 0.01 Graduations can be switched over (445261) mm 0.0001 /0.001 / 0.01 0.0001 / 0.001 / 0.01 Measuring force N 1.5 ±0.5 1.5 ±0.5 46 Main catalogue
