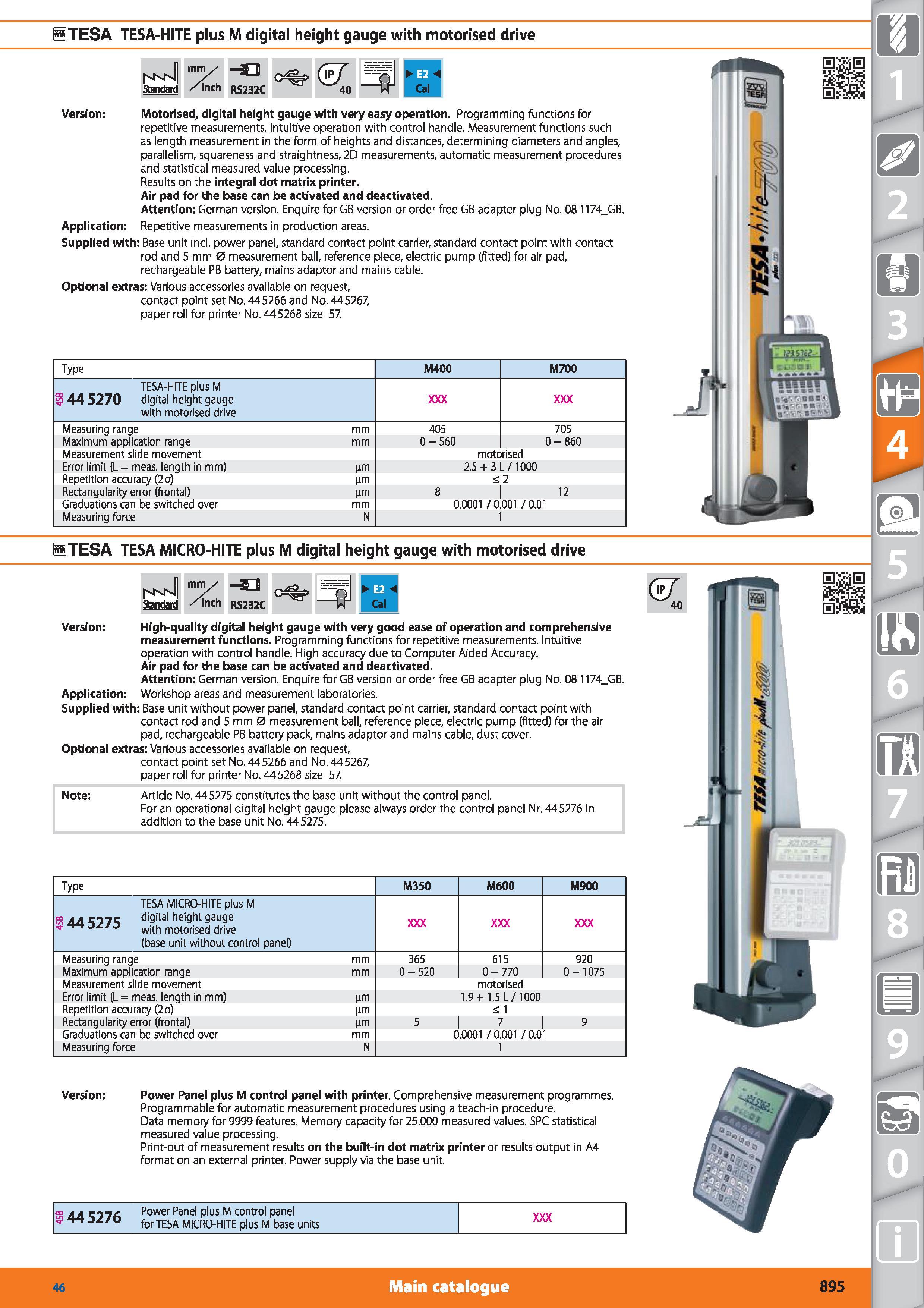

BTESA TESA-HITE plus M digital height gauge with motorised drive Standard mm /inch RS232C (zf 40 Version Motorised, digital height gauge with very easy operation. Programming functions for repetitive measurements. Intuitive operation with control handle. Measurement functions such as length measurement in the form of heights and distances, determining diameters and angles, parallelism, squareness and straightness, 2D measurements, automatic measurement procedures and statistical measured value processing. Results on the integral dot matrix printer. Air pad for the base can be activated and deactivated. Attention German version. Enquire for GB version or order free GB adapter plug No. 08 1174_GB. Application Repetitive measurements in production areas. Supplied with Base unit ind. power panel, standard contact point carrier, standard contact point with contact rod and 5 mm 0 measurement ball, reference piece, electric pump (fitted) for air pad, rechargeable PB battery, mains adaptor and mains cable. Optional extras Various accessories available on request, contact point set No. 445266 and No. 445267, paper roll for printer No. 445268 size 57. spa 11 1 s s Type M400 M700 TESA-HITE plus M s 44 5270 digital height gauge with motorised drive Measuring range mm 405 705 Maximum application range mm 0-560 0-860 Measurement slide movement motorised Error limit (L meas. length in mm) nm 2.5 + 3 L/1000 Repetition accuracy (2a) Urn <,2 Rectangularity error (frontal) Hm 8 12 Graduations can be switched over mm 0.0001 / 0.001 / 0.01 Measuring force N 1 STESA TESA MICRO-HITE plus M digital height gauge with motorised drive Version High-quality digital height gauge with very good ease of operation and comprehensive measurement functions. Programming functions for repetitive measurements. Intuitive operation with control handle. High accuracy due to Computer Aided Accuracy. Air pad for the base can be activated and deactivated. Attention German version. Enquire for GB version or order free GB adapter plug No. 08 1174_GB. Application Workshop areas and measurement laboratories. Supplied with Base unit without power panel, standard contact point carrier, standard contact point with contact rod and 5 mm 0 measurement ball, reference piece, electric pump (fitted) for the air pad, rechargeable PB battery pack, mains adaptor and mains cable, dust cover. Optional extras Various accessories available on request, contact point set No. 445266 and No. 445267, paper roll for printer No. 445268 size 57. Note Article No. 445275 constitutes the base unit without the control panel. For an operational digital height gauge please always order the control panel Nr. 445276 in addition to the base unit No. 445275. Type 1445275 TESA MICRO-HITE plus M digital height gauge with motorised drive (base unit without control panel) M350 M600 M900 Measuring range Maximum application range Measurement slide movement Error limit (L meas. length in mm) Repetition accuracy (2o) Rectangularity error (frontal) Graduations can be switched over Measuring force mm nm Hm Hm mm N 365 0-520 615 0-770 motorised 1.9 + 1.5 L/1000 <; 1 I 7 0.0001 / 0.001 / 0.01 1 920 0-1075 Version Power Panel plus M control panel with printer. Comprehensive measurement programmes. Programmable for automatic measurement procedures using a teach-in procedure. Data memory for 9999 features. Memory capacity for 25.000 measured values. SPC statistical measured value processing. Print-out of measurement results on the built-in dot matrix printer or results output in A4 format on an external printer. Power supply via the base unit. Power Panel plus M control panel for TESA MICRO-HITE plus M base units Main catalogue Hoffmann Group 46 895
