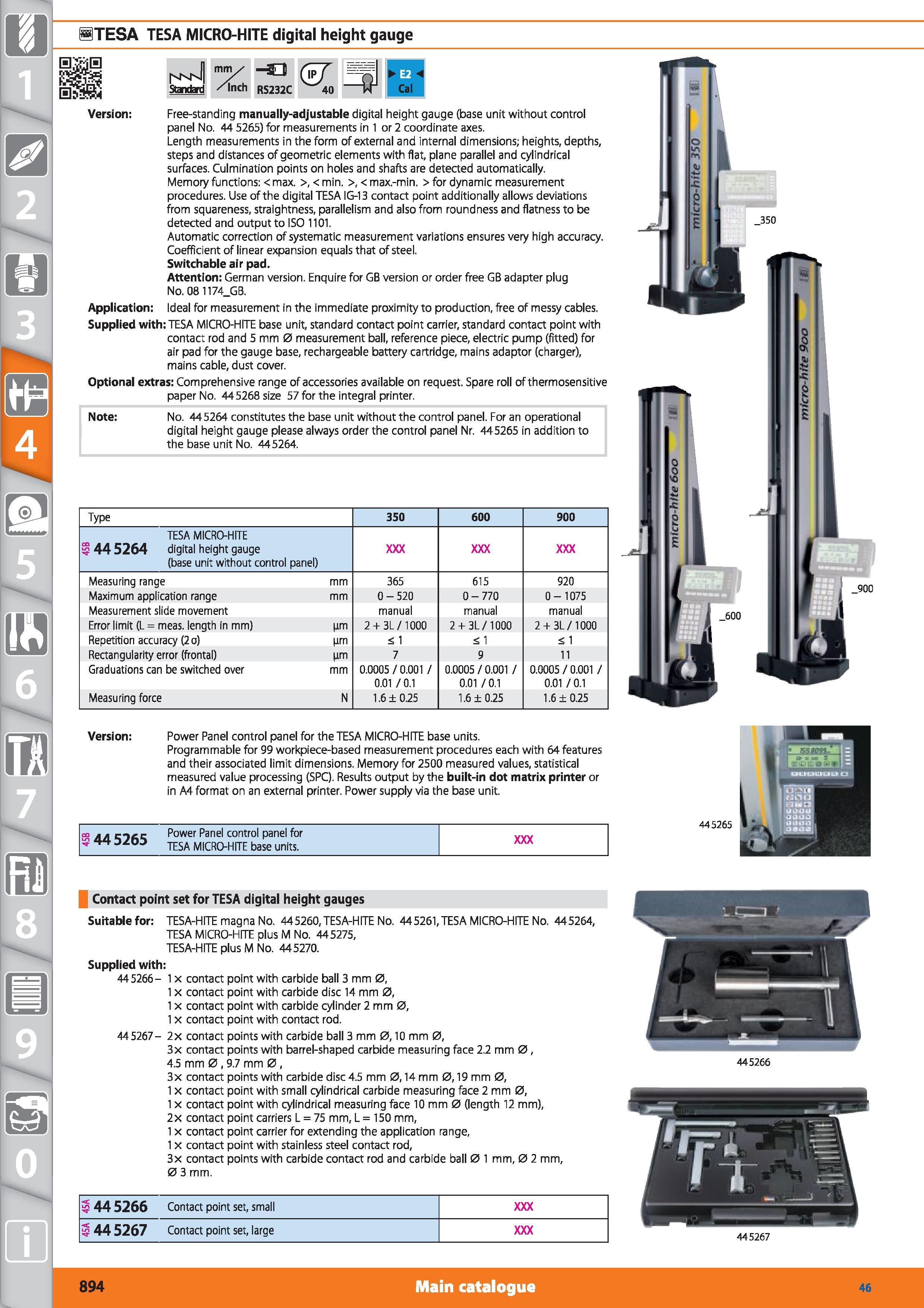

1 -TESA TESA MICRO-HITE digital height gauge Standard mm/ /Inch RS232C <57 40 Cal Da IU ffll Version Free-standing manually-adjustable digital height gauge (base unit without control panel No. 44 5265) for measurements in 1 or 2 coordinate axes. Length measurements in the form of external and internal dimensions; heights, depths, steps and distances of geometric elements with fiat, plane parallel and cylindrical surfaces. Culmination points on holes and shafts are detected automatically. Memory functions < max. >, < min. >, < max.-min. > for dynamic measurement procedures. Use of the digital TESA IG-13 contact point additionally allows deviations from squareness, straightness, parallelism and also from roundness and flatness to be detected and output to ISO 1101. Automatic correction of systematic measurement variations ensures very high accuracy. Coefficient of linear expansion equals that of steel. Switchable air pad. Attention German version. Enquire for GB version or order free GB adapter plug No. 08 1174_GB. Application Ideal for measurement in the immediate proximity to production, free of messy cables. Supplied with TESA MICRO-HITE base unit, standard contact point carrier, standard contact point with contact rod and 5 mm 0 measurement ball, reference piece, electric pump (fitted) for air pad for the gauge base, rechargeable battery cartridge, mains adaptor (charger), mains cable, dust cover. Optional extras Comprehensive range of accessories available on request. Spare roll of thermosensitive paper No. 445268 size 57 for the integral printer. Note No. 445264 constitutes the base unit without the control panel. For an operational digital height gauge please always order the control panel Nr. 445265 in addition to the base unit No. 445264. Type 350 600 900 TESA MICRO-HITE 44 5264 digital height gauge (base unit without control panel) Measuring range mm 365 615 920 Maximum application range mm 0-520 0-770 0-1075 Measurement slide movement manual manual manual Error limit (L meas. length in mm) (im 2 + 3L/1000 2 + 3L/1000 2 + 3L/1000 Repetition accuracy (2 a) Um s 1 s 1 s 1 Rectangularity error (frontal) Um 7 9 11 Graduations can be switched over mm 0.0005 / 0.001 / 0.0005 / 0.001 / 0.0005 / 0.001 / 0.01 / 0.1 0.01 / 0.1 0.01 / 0.1 Measuring force N 1.6 ±0.25 1.6 ±0.25 1.6 ±0.25 Version Power Panel control panel for the TESA MICRO-HITE base units. Programmable for 99 workpiece-based measurement procedures each with 64 features and their associated limit dimensions. Memory for 2500 measured values, statistical measured value processing (SPC). Results output by the built-in dot matrix printer or in A4 format on an external printer. Power supply via the base unit. 1445265 Power Panel control panel for TESA MICRO-HITE base units. Contact point set for TESA digital height gauges Suitable for TESA-HITE magna No. 445260,TESA-HITE No. 445261, TESA MICRO-HITE No. 445264, TESA MICRO-HITE plus M No. 445275, TESA-HITE plus M No. 445270. Supplied with 445266- 1 x contact point with carbide ball 3 mm 0, 1 x contact point with carbide disc 14 mm 0, 1 x contact point with carbide cylinder 2 mm 0, 1 x contact point with contact rod. 445267 - 2x contact points with carbide ball 3 mm 0,10 mm 0, 3x contact points with barrel-shaped carbide measuring face 2.2 mm 0, 4.5 mm 0,9.7 mm 0, 3x contact points with carbide disc 4.5 mm 0,14 mm 0,19 mm 0, 1 x contact point with small cylindrical carbide measuring face 2 mm 0, 1 x contact point with cylindrical measuring face 10 mm 0 (length 12 mm), 2x contact point carriers L 75 mm, L 150 mm, 1 x contact point carrier for extending the application range, 1 x contact point with stainless steel contact rod, 3x contact points with carbide contact rod and carbide ball 0 1 mm, 0 2 mm, 0 3 mm. 44 5266 Contact point set, small 3 44 5267 Contact point set, large 445267 445266 894 Main catalogue Hoffmann Group 46
