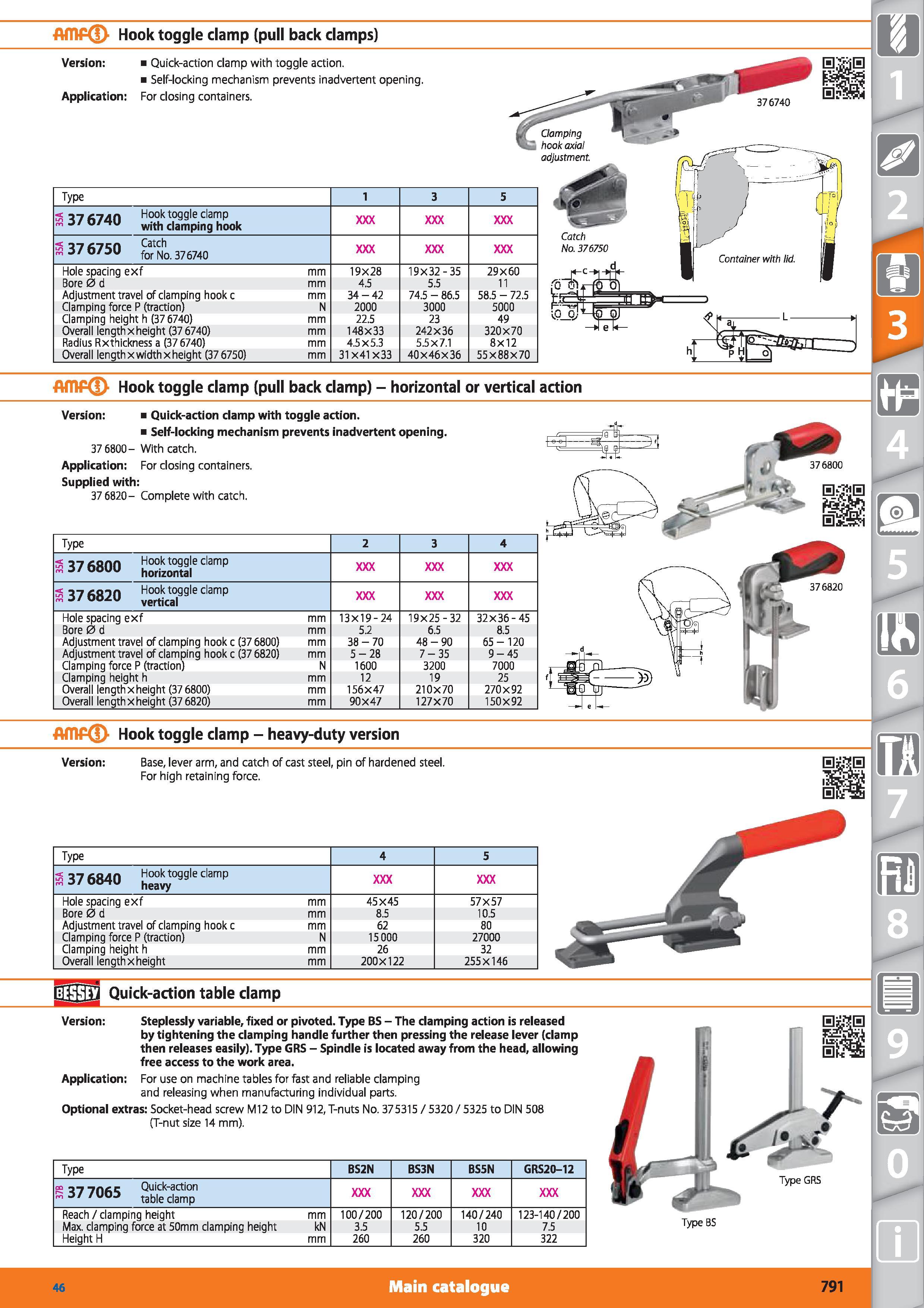

ATOP Hook toggle clamp (pull back clamps) Version Quick-action clamp with toggle action. Self-locking mechanism prevents inadvertent opening. Application For closing containers. Type 1 3 5 S XI Hook t099le clamp 3 with clamping hook 3376750 faf No. 376740 Hole spacing exf mm 19X28 19x32-35 29X60 Bore 0 d mm 4.5 5.5 11 Adjustment travel of clamping hook c mm 34-42 74.5 - 86.5 58.5 - 72.5 Clamping force P (traction) N 2000 3000 5000 Clamping height h (37 6740) mm 22.5 23 49 Overall length x height (376740) mm 148x33 242x36 320x70 Radius Rxthickness a (37 6740) mm 4.5 x 5.3 5.5 x 7.1 8x12 Overall lengthxwidthxheight (376750) mm 31x41x33 40x46x36 55x88x70 L M , .'‘K'lfll 1 J =2 AfflPCf)' Hook toggle clamp (pull back clamp) - horizontal or vertical action Version Quick-action clamp with toggle action. Self-locking mechanism prevents inadvertent opening. 37 6800- With catch. Application For closing containers. Supplied with 37 6820- Complete with catch. Type 2 3 4 S 37 6800 E“ s XI fijon Hook t099le Clamp rn aozu vertical Hole spacing exf mm 13x19-24 19x25-32 32x36-45 Bore 0 d mm 5.2 6.5 8.5 Adjustment travel of clamping hook c (37 6800) mm 38-70 48-90 65-120 Adjustment travel of clamping hook c (37 6820) mm 5-28 7-35 9-45 Clamping force P (traction) N 1600 3200 7000 Clamping height h mm 12 19 25 Overall length x height (376800) mm 156x47 210x70 270x92 Overall length x height (376820) mm 90X47 127X70 150x92 AMP Hook toggle clamp - heavy-duty version Version Base, lever arm, and catch of cast steel, pin of hardened steel. For high retaining force. Type 4 5 5 XI Hook t099le damp m 3/ oo tu heavy Hole spacing exf mm 45X45 57X57 Bore 0 d mm 8.5 10.5 Adjustment travel of clamping hook c mm 62 80 Clamping force P (traction) N 15000 27000 Clamping height h mm 26 32 Overall length x height mm 200X122 255X146 GI 0 1 Quick-action table clamp Version Steplessly variable, fixed or pivoted. Type BS - The clamping action is released by tightening the damping handle further then pressing the release lever (clamp then releases easily). Type GRS - Spindle is located away from the head, allowing free access to the work area. Application For use on machine tables for fast and reliable clamping and releasing when manufacturing individual parts. Optional extras Socket-head screw M12 to DIN 912, T-nuts No. 375315/5320/5325 to DIN 508 (T-nut size 14 mm). Type BS2N BS3N BS5N GRS20-12 3-7 -7otc Quick-action 37 7065 tabte damp Reach / clamping height Max. clamping force at 50mm clamping height mm kN 100/200 3.5 120 / 200 5.5 140/240 10 123-140 / 200 7.5 Height H mm 260 260 320 322 46 Main catalogue
