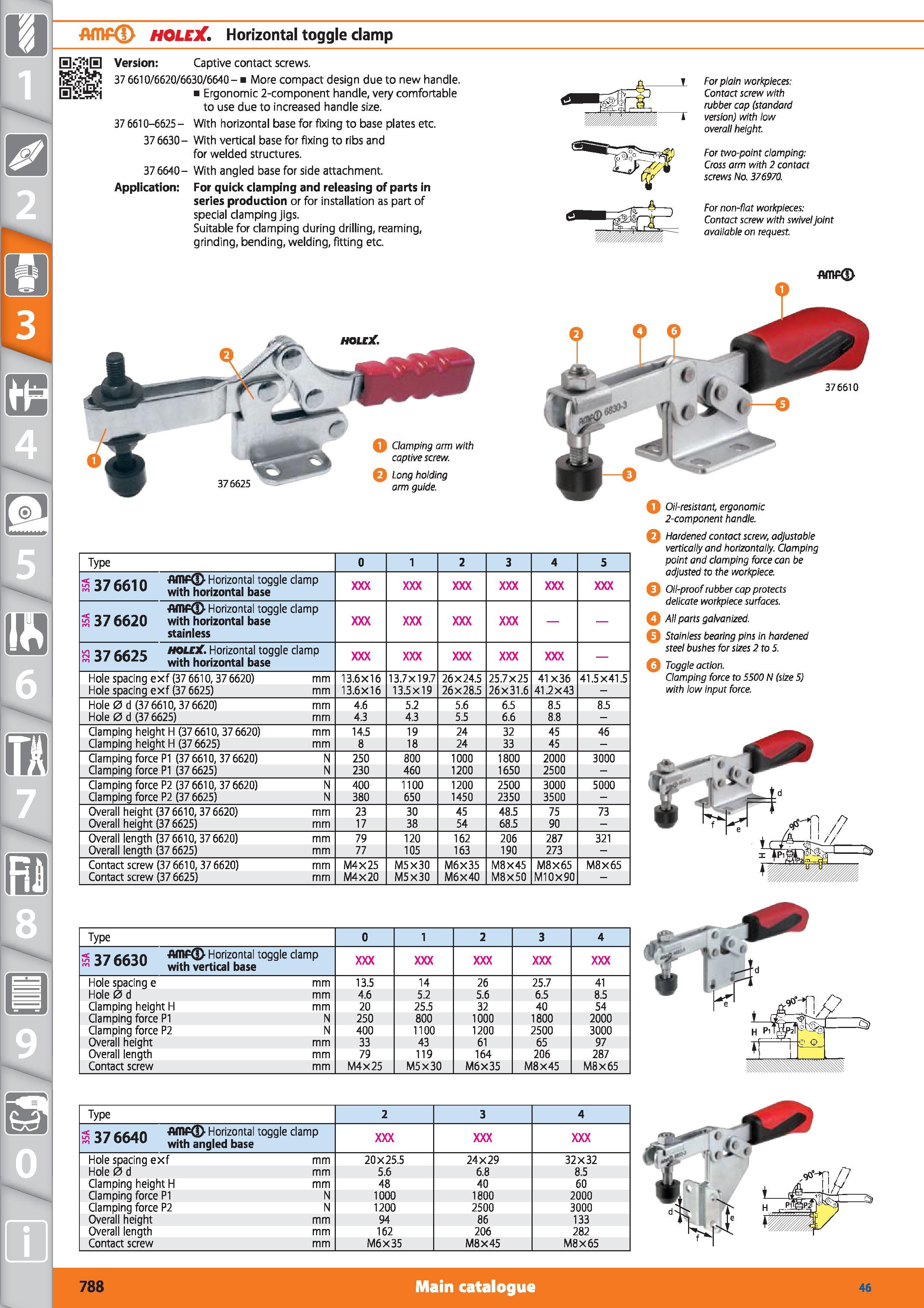

1 Amp(l> HOLEX Horizontal toggle damp da lUl to Version Captive contact screws. 37 6610/6620/6630/6640- More compact design due to new handle. Ergonomic 2-component handle, very comfortable to use due to increased handle size. 37 6610-6625- With horizontal base for fixing to base plates etc. 37 6630- With vertical base for fixing to ribs and for welded structures. 37 6640- With angled base for side attachment. Application For quick clamping and releasing of parts in series production or for installation as part of special clamping jigs. Suitable for clamping during drilling, reaming, grinding, bending, welding, fitting etc. For plain workpieces Contact screw with rubber cap (standard version) with low overall height For two-point clamping Cross arm with 2 contact screws No. 376970. For non-flat workpieces Contact screw with swivel pint available on request HOLEX 376625 Q Clamping arm with captive screw. Long holding arm guide. Type 0 1 2 3 4 5 <37 n AflIF Horizontal toggle clamp m 31 OOIU wjth horizontal base AIIIP Horizontal toggle clamp 37 6620 with horizontal base stainless i/i 37 (Lc.'ic HOLEX Horizontal toggle clamp m 3/ OOz j wj(h horizontal base Hole spacing exf (37 6610,37 6620) mm 13.6x16 13.7x19.7 26 x 24.5 25.7X25 41x36 41.5x41.5 Hole spacing exf (37 6625) mm 13.6x16 13.5x19 26x28.5 26x31.6 41.2x43 - Hole 0d (37 6610,37 6620) mm 4.6 5.2 5.6 6.5 8.5 8.5 Hole 0d (37 6625) mm 4.3 4.3 5.5 6.6 8.8 - Clamping height H (376610,376620) mm 14.5 19 24 32 45 46 Clamping height H (37 6625) mm 8 18 24 33 45 - Clamping force PI (376610, 376620) N 250 800 1000 1800 2000 3000 Clamping force PI (37 6625) N 230 460 1200 1650 2500 - Clamping force P2 (376610,376620) N 400 1100 1200 2500 3000 5000 Clamping force P2 (37 6625) N 380 650 1450 2350 3500 - Overall height (376610,376620) mm 23 30 45 48.5 75 73 Overall height (37 6625) mm 17 38 54 68.5 90 - Overall length (376610,376620) mm 79 120 162 206 287 321 Overall length (37 6625) mm 77 105 163 190 273 - Contact screw (37 6610,37 6620) mm M4X25 M5X30 M6X35 M8X45 M8X65 M8X65 Contact screw (37 6625) mm M4X20 M5X30 M6X40 M8X50 M10X90 - Type 0 1 2 3 4 37 / 3n Afllf Horizontal toggle clamp ffi 3/ OD3U wjth vertjca bgse Hole spacing e mm 13.5 14 26 25.7 41 Hole 0 d mm 4.6 5.2 5.6 6.5 8.5 Clamping height H mm 20 25.5 32 40 54 Clamping force PI N 250 800 1000 1800 2000 Clamping force P2 N 400 1100 1200 2500 3000 Overall height mm 33 43 61 65 97 Overall length mm 79 119 164 206 287 Contact screw mm M4x25 M5X30 M6x35 M8x45 M8x65 Q Oil-resistant, ergonomic 2-component handle. Q Hardened contact screw, adjustable vertically and horizontally. Clamping point and clamping force can be adjusted to the workpiece. Oil-proof rubber cap protects delicate workpiece surfaces. Q All parts galvanized. Q Stainless bearing pins in hardened steel bushes for sizes 2 to 5. Toggle action. Clamping force to 5500 N (size 5) with low input force. Type 2 3 4 S nn c.c.Af\ Amp Horizontal toggle clamp m i/ 00 IU with angled base Hole spacing exf mm 20X25.5 24X29 32X32 Hole 0 d mm 5.6 6.8 8.5 Clamping height H mm 48 40 60 Clamping force PI N 1000 1800 2000 Clamping force P2 N 1200 2500 3000 Overall height mm 94 86 133 Overall length mm 162 206 282 Contact screw mm M6X35 M8X45 M8X65 788 Main catalogue Hoffmann Group 46
