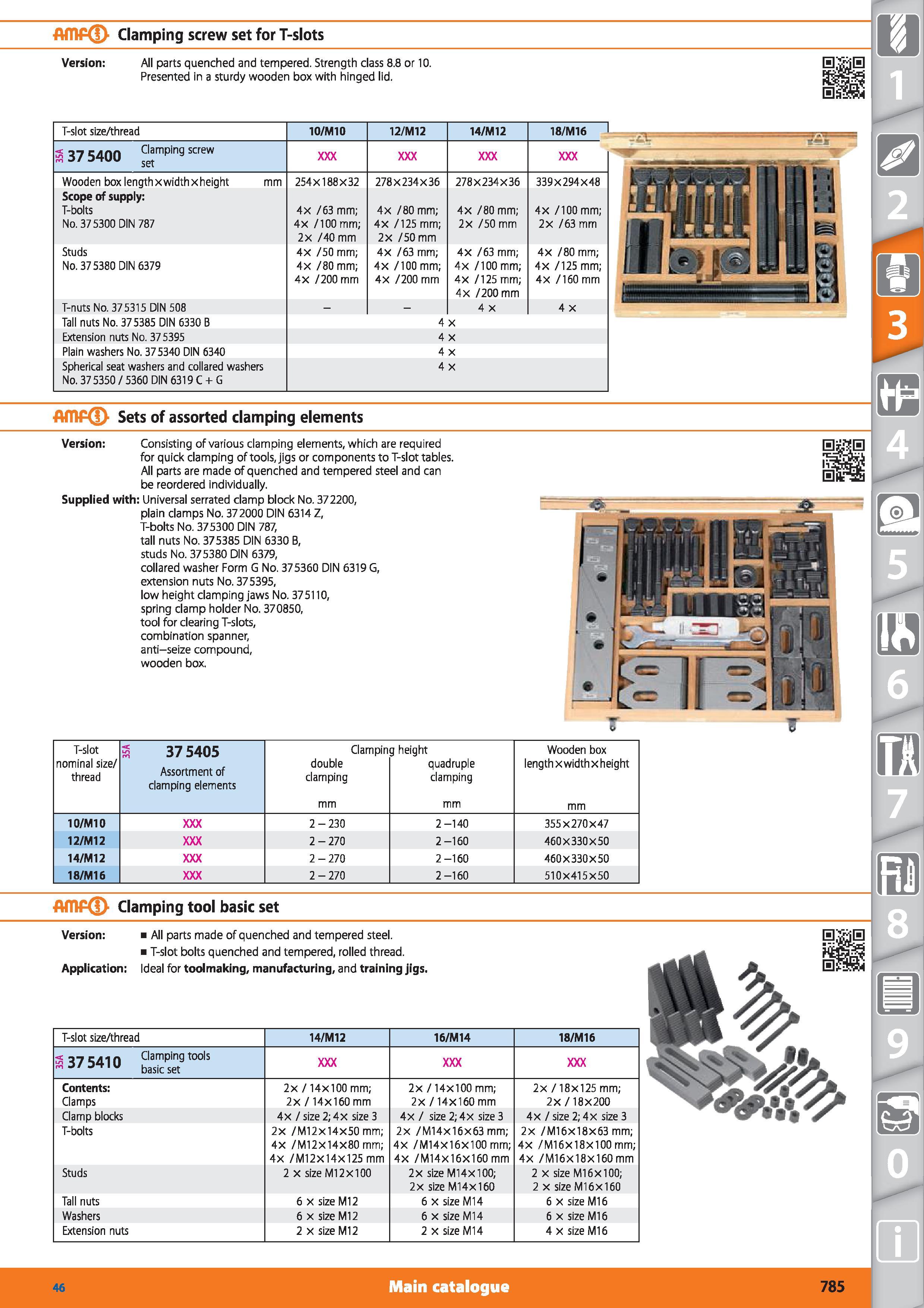

AmP Clamping screw set for T-slots m Version All parts quenched and tempered. Strength class 8.8 or 10. Presented in a sturdy wooden box with hinged lid. T-slot size/thread 10/M10 12/M12 14/M12 18/M16 S 37 5400 2mpingscrew Wooden box length xwidth x height mm 254X188X32 278X234X36 278X234X36 339X294X48 Scope of supply T-bolts No. 375300 DIN 787 4x /63 mm; 4X /100 mm; 2x /40 mm 4x /80 mm; 4X /125 mm; 2x /50 mm 4x /80 mm; 2x /50 mm 4x /100 mm; 2x /63 mm Studs No. 375380 DIN 6379 4X /50 mm; 4x /80 mm; 4x /200 mm 4X /63 mm; 4x /100 mm; 4x /200 mm 4X /63 mm; 4x /100 mm; 4X /125 mm; 4x /200 mm 4X /80 mm; 4x /125 mm; 4x /160 mm T-nuts No. 375315 DIN 508 4 x 4 x Tall nuts No. 375385 DIN 6330 B 4 X Extension nuts No. 37 5395 4 X Plain washers No. 375340 DIN 6340 4 X Spherical seat washers and collared washers No. 37 5350 / 5360 DIN 6319 C + G 4 X Amp Sets of assorted clamping elements Version Consisting of various clamping elements, which are required for quick clamping of tools, jigs or components to T-slot tables. All parts are made of quenched and tempered steel and can be reordered individually. Supplied with Universal serrated clamp block No. 372200, plain clamps No. 372000 DIN 6314 Z, T-bolts No. 375300 DIN 787, tall nuts No. 375385 DIN 6330 B, studs No. 375380 DIN 6379, collared washer Form G No. 375360 DIN 6319 G, extension nuts No. 375395, low height clamping jaws No. 375110, spring clamp holder No. 370850, tool for clearing T-slots, combination spanner, anti-seize compound, wooden box. T-slot nominal size/ thread s 375405 Assortment of clamping elements Clampin double clamping mm g height quadruple clamping mm Wooden box lengthxwidthxheight mm 10/M10 2-230 2-140 355x270x47 12/M12 2-270 2-160 460X330X50 14/M12 2-270 2-160 460X330X50 18/M16 2-270 2-160 510x415x50 Amp Clamping tool basic set Version All parts made of quenched and tempered steel. T-slot bolts quenched and tempered, rolled thread. Application Ideal for toolmaking, manufacturing, and training jigs. T-slot size/thread 14/M12 16/M14 18/M16 Sr7<;4in Clamping tools basic set Contents Clamps 2x / 14x100 mm; 2x / 14x160 mm 2x / 14x100 mm; 2x / 14x160 mm 2x / 18x125 mm; 2x/18X200 Clamp blocks 4x / size 2; 4x size 3 4x / size 2; 4x size 3 4x / size 2; 4x size 3 T-bolts 2x /M12x14x50 mm; 4X /M12X14X80 mm; 4x /M12X14X125 mm 2x /M14x16x63 mm; 4X /M14X16X100 mm; 4x /M14x16x160 mm 2x /M16x18x63 mm; 4X /M16X18X100 mm; 4x /M16x18x160mm Studs 2 X size M12X100 2x size M14X100; 2x size M14X160 2 X size M16X100; 2 x size M16X160 Tall nuts 6 x size Ml 2 6 x size M14 6 x size M16 Washers 6 x size Ml 2 6 x size M14 6 x size Ml 6 Extension nuts 2 x size Ml 2 2 x size M14 4 x size M16 Main catalogue
