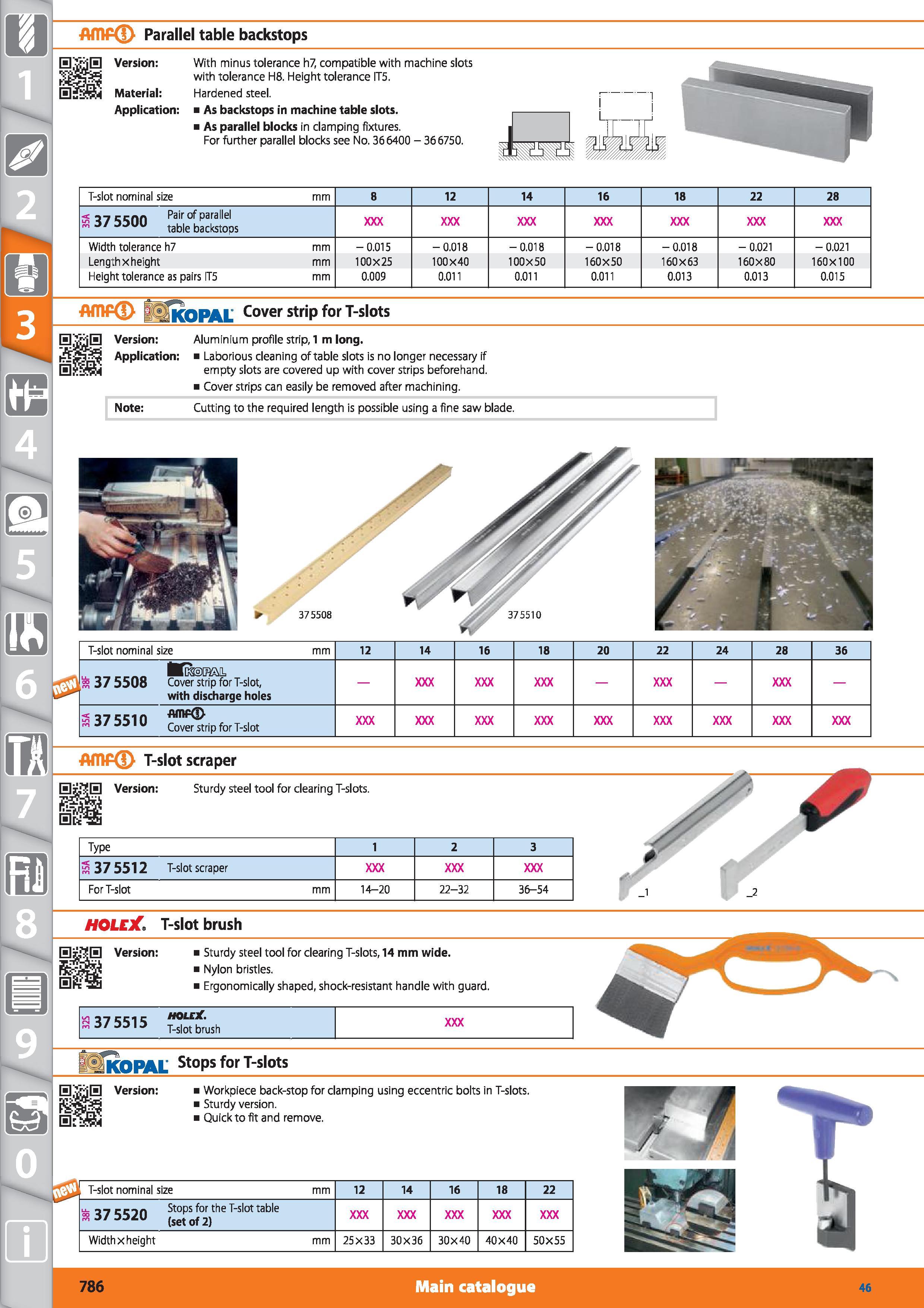

AfllP ’ KOPAL Cover strip for T-slots 0jJjTj0 Version APP cat'on Aluminium profile strip, 1 m long. Laborious cleaning of table slots is no longer necessary if empty slots are covered up with cover strips beforehand. Cover strips can easily be removed after machining. Note Cutting to the required length is possible using a fine saw blade. 375508 375510 T-slot nominal size mm 12 14 16 18 20 22 24 28 36 ”375508 Traami Cover strip for T-slot, with discharge holes b 375510 amp Cover strip for T-slot AfllP T-slot scraper Sturdy steel tool for clearing T-slots. Type 1 2 3 37 5512 T-slot scraper For T-slot mm 14-20 22-32 36-54 T-slot nominal size 1375500 Pairof parallel table backstops Width tolerance h7 Length x height Height tolerance as pairs IT5 -0.015 100x25 0.009 -0.018 100x40 0.011 -0.018 100X50 0.011 -0.018 160X50 0.011 -0.018 160X63 0.013 - 0.021 160X80 0.013 - 0.021 160X100 0.015 AfllP Parallel table backstops Version Material Application With minus tolerance h7, compatible with machine slots with tolerance H8. Height tolerance IT5. Hardened steel. As backstops in machine table slots. As parallel blocks in clamping fixtures. For further parallel blocks see No. 366400 - 366750. holejC, T-slot brush 0 j.30 Version Sturdy steel tool for clearing T-slots, 14 mm wide. Nylon bristles. 0rn sS Ergonomically shaped, shock-resistant handle with guard. 1375515 holcjC. T-slot brush 1 -KOPAL Stops for T-slots 0jj j0 Version Workpiece back-stop for clamping using eccentric bolts in T-slots. KfSSgfiS Sturdy version. Quick to fit and remove. T-slot nominal size mm 12 14 16 18 22 rj irrm Stops for the T-slot table ss 37 5520 (setPof2) Widthxheight mm 25X33 30X36 30X40 40X40 50X55 786 Main catalogue Hoffmann Group 46
